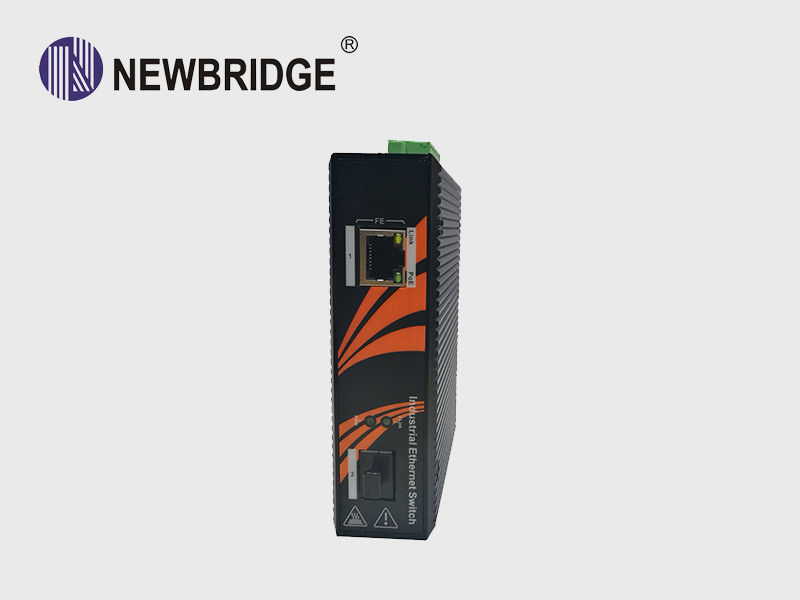

Sfp Fiber Optic Ethernet Network Poe Switch Full 10/100/1000M Gigabit 1 Port

Sfp Fiber Optic Ethernet Network Poe Switch Full 10/100/1000M Gigabit 1 Port

Sfp Fiber Optic Ethernet Network Poe Switch Full 10/100/1000M Gigabit 1 Port

Product Details:

Place of Origin: SHENZHEN,CHINA
Certification: FCC,CE
Model Number: ND-X920-1FX1TX

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Input Power: 12~48V DC (Terminal Block) Shell: IP40 Protect Grade, Metal Shell
Installation: DIN-Rail Or Wall Mounts Working Temperature: -40~+85℃
Dimension (L×W×H): 118mm× 86mm× 39mm Product Weight: 0.36kg
Interface: 1x10/100/1000Base-T Ethernet Port + 1x 1000Mbps Optical Port

hot sale Full 10/100/1000M Gigabit 1 port sfp fiber optic ethernet network 8 industrial poe switch


1. Overview

Newbridge®ND-X920-1FX1TX Industrial Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

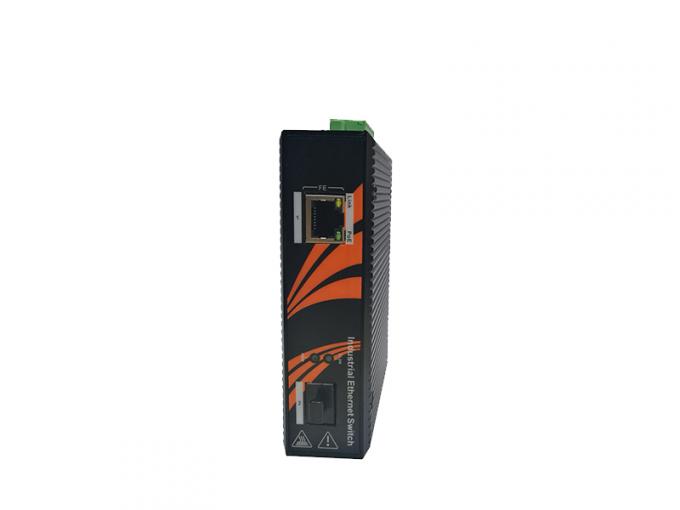

Sfp Fiber Optic Ethernet Network Poe Switch Full 10/100/1000M Gigabit 1 Port


  • 1 Port 10/100/1000MbpsEthernet port , 1 port 1000Mbps optical port

l Automatic MAC address learning and aging

l 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

l LED indicators for monitoring power/link/activity

l Supports 10/100/1000Mbps-Full/Half-duplex

l Supports DIN-Rail installation

l Supports Daisy-Chain connection

l Supports Broadcast Storm Control

l Transmission data max. Support:1518 bytes

l Super lightening protection, IP40 protection.

l Excellent heat elimination without cooling fan.

l Redundant dual DC power inputs.

l Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

l Harsh industrial environment or higher requirement

l 6KV port Lightning protection

l -40℃~+85℃ operating temperature range.

l 3-Year Warranty




3. Specifications


Product Name

1 Port 10/100/1000Mbps Industrial Fiber Switch
Product Model ND-X920-1FX1TX
Interface 1x10/100/1000Base-T Ethernet port + 1x 1000Mbps Optical port


Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;


Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80KM



Performance Specification

Bandwidth: 10Gbps

Packet Buffer Memory:1M

10 Mbps Packet Forwarding Rate:14880 pps/port

100Mbps Packet Forwarfding Rate:148800 pps/port

1000Mbps Packet Forwarfding Rate:1488000 pps/port

MAC Address Table: 8K

Forwarding Delay:<4us

Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; PoE; Link/Act



Power Supply

Input Power: 12~48VDC (Terminal Block)

Input Power:2* 12~48VDC(Dual power redundancy backup)

Working Consumption : <5W

Connectors : Phoenix terminal

Overload protection :20A

Reverse polarity protection : 30s

Alarm contact : No

Other Specifications


Working Environment

Working temperature: -40~+85℃ ;

Storage temperature: -45~+85℃

Relative Humidity: 5%~95 %( no condensation)




Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22,

Class A EMS:

IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air)

IEC6100-4-3 (RS): 10V/m (80MHz-2GHz)

IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

IEC (EN) 61000-4-8:support

IEC 60068-2-27(Shock):support

IEC 60068-2-32(Freefall):support

IEC 60068-2-6(Vibration):support

Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts


Packing List

1×Industrial PoE Switch (plus terminal block)

1×User Manual/Certificate of quality/Warranty card

1×DIN-Rail mounting kit



CE mark, commercial;

FCC Part 15 Class B;

VCCI Class B

EN 55022 (CISPR 22), Class B

MTBF 300,000 hours
Weight & Size

Product Weight: 0.36KG

Product size (L×W×H): 118mm× 86mm× 39mm

Warranty 3-years


4. Order Information

Part No Description of product Unit
ND-X920-1FX1TX-SC 1*10/100/1000 Base-Tx Non-managed Fiber Switch,1*1000M SC port ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default. pc
ND-X920-1FX1TX-SFP 1*10/100/1000 Base-Tx Non-managed Fiber Switch,1*1000M SFP Slot ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default. pc
