| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND1P802F |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 3000pcs per month |
| PoE Standard: | IEEE 802.3af/at | PoE Power: | Af=15.4W,at=30W，single Port Output Power 30W |
|---|---|---|---|
| Switching Capacity: | 1.2Gbps | MAC Table: | 1K |
| Relative Humidity: | 20~95% | Consumption: | 65W(52V 1.25A) |
| Ethernet Port: | Uplink Port : 10/100Mbps |
Ethernet poe switch managed ethernet switch IEEE802.3at or IEEE802.3af poe switch
1. Overview

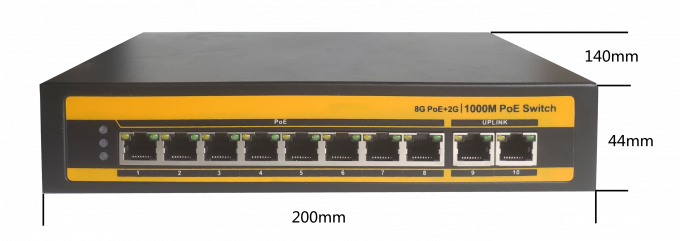

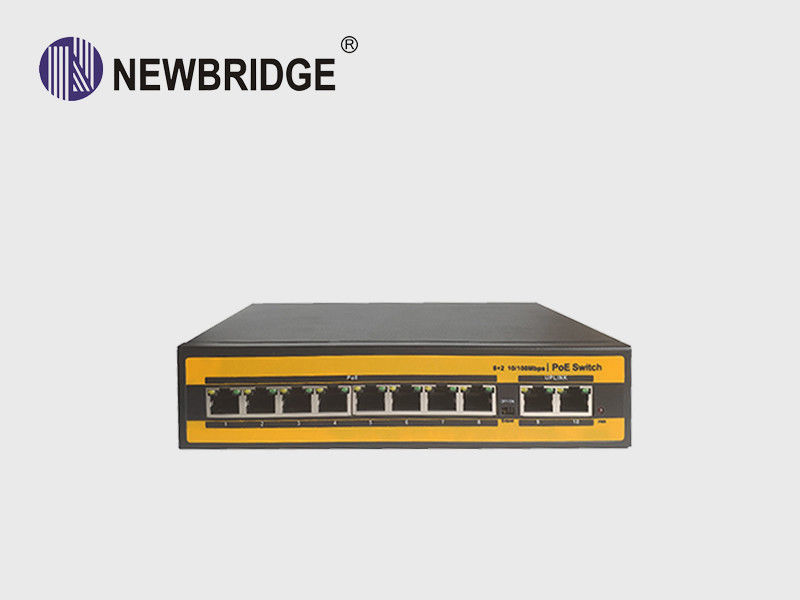

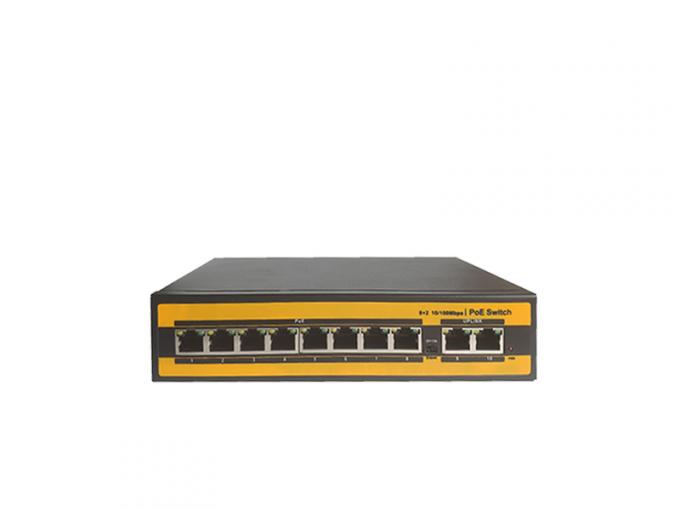

Newbridge® ND1P802F switch is a compact 8+2 port PoE switch,with 8 10/100 Mbps PoE Ports, and 2 10/100Mbps Uplink Port,The 8 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD), such as VOIP phones,IP Cameras,all PoE ports support the IEE802.3af/at standard,with a maximum output of 30 W each port
2.Feature
|
|
l 8*10/100Mbps PoE ports, 2*10/100Mbps uplink port l Support IEEE802.3af/at l Support restrain network storm, VLAN function l Support Max Transmission distance up to 250m with PoE Power l All port supported by MDI/MDIX auto flip and self-negotiation l Built-in power supply; l Maximum power of single PoE port: 30 W; l Maximum PoE power: 1 2 0 W; l Adopts store-and-forward architecture; l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
|
3．Application Diagram
5. Specifications
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W(52V, 2.3A) | ||
|
Network Connector |
Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
|
Transmission Distance |
1～8 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| MAC Table | 1K | ||
|
Packet Forwarding rate |
10Mbps: 14880pps/port 100Mbps: 148800pps/port | ||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | End-Span(1/2+;3/6-) | ||
| PoE Power | af=15.4W,at=30W,single port output power 30W | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 202mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
6. Order Information
| Part No | Description of product | Unit |
| ND1P802F | 10 ports switch with 8*10/100M PoE ports,2*10/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) | pc |
