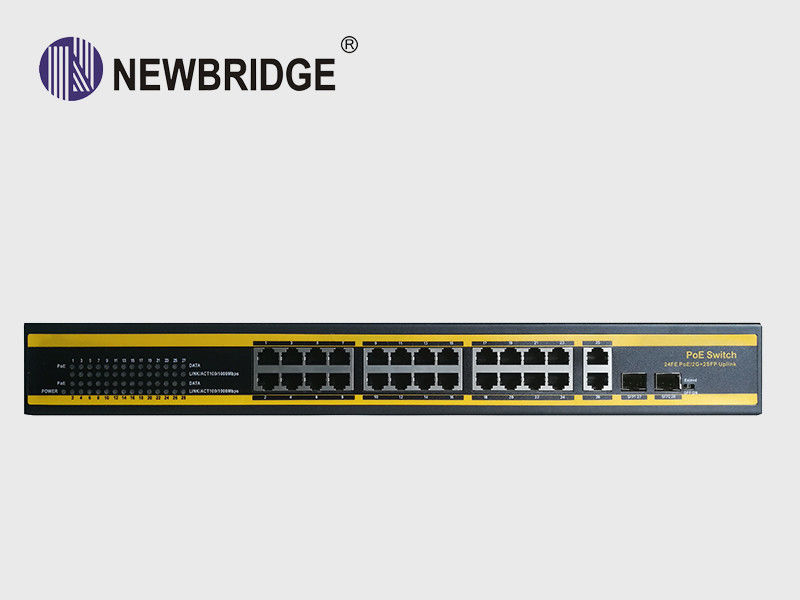

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND1P2404FGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Power Adapter Voltage:	AC 110V-240V	POE Ethernet Port:	1～24 Port : 10/100Mbps
Transmission Medium:	Cat5/5e/6 Standard Network Cable	Working Temperature:	0℃~55℃
Dimension (L×W×H):	440mm285mm55mm	PoE Standard:	IEEE 802.3af/at

Ethernet Network PoE Switch 24 Port10/100Mbps with 2 GE+2 SFP Combo for IP Devices

1. Overview

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo Newbridge® The switch is a compact 24+4 port PoE Switch,With 24 *10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 2*1000Mbps SFP Port(combo),The 24 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af/at standard,with a maximum output of 30 W each port.

2.Feature

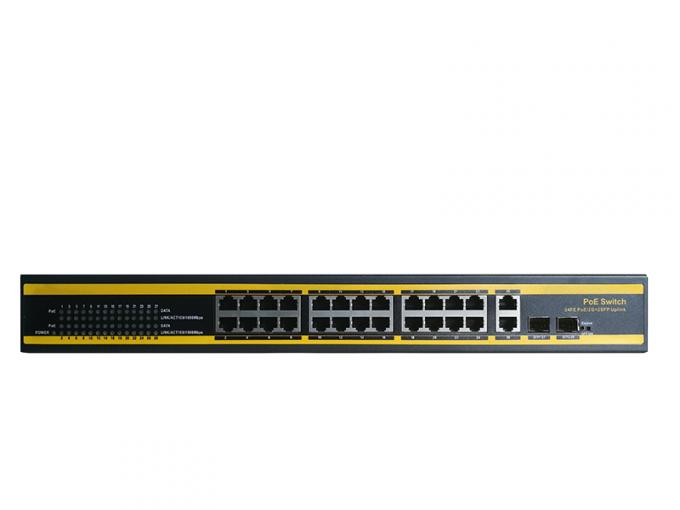

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

l 24*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,2 1000M SFP combo

l Support IEEE802.3af/at

l Support restrain network storm, VLAN function

l Support Max Transmission distance up to 250m with PoE Power

l All port supported by MDI/MDIX auto flip and self-negotiation

l Built-in power supply;

l Maximum power of single PoE port: 30 W;

Maximum PoE power: 450W;

l Adopts store-and-forward architecture;

l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

Support lightning protection 6000V

3．Application Diagram

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

4. Dimensions

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

5. Specifications

Item			Description
Power	Power Adapter Voltage		AC 110V-240V
	Consumption		450W(52V,8.6A)
Network Connector	Network Port	POE Ethernet Port	1～24 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
		SFP Port	SFP Port : 1000Mbps
	Transmission Distance		1～24 Port : 100Mbps:0~100m; 10Mbps: 0~250m;
			Uplink Port : 100m
			SFP: depends on the optical module(20km,40km...)
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab
	Switching Capacity		12.8Gbps
	Packet Buffer Memory		1Mbits
	Throughput		9.5232Mbps
	MAC Table		4k
	Packet Forwarding Rate		10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port
Power Over Ethernet	PoE Standard		IEEE 802.3af/at
	PoE Power Supply		End-Span(1/2+;3/6-)
	PoE Power		af=15.4W,at=30W
RJ45 port	Port Function		Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	LED Indicator		LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		440mm285mm55mm
	Color		Silver-Gray
	Weight		4.05kg

6. Order Information

Part No	Description of product	Unit
ND1P2404FGX	28 ports switch with 2410/100M bit PoE ports,210/100/1000M Uplink Port and 2*SFP combo,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)	pc
