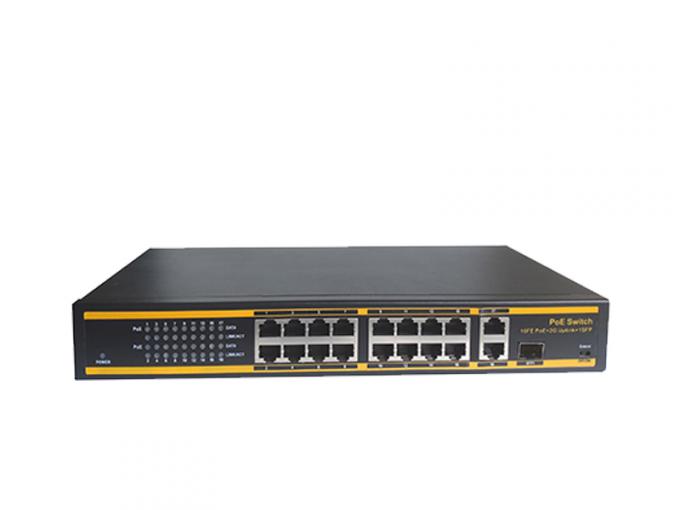

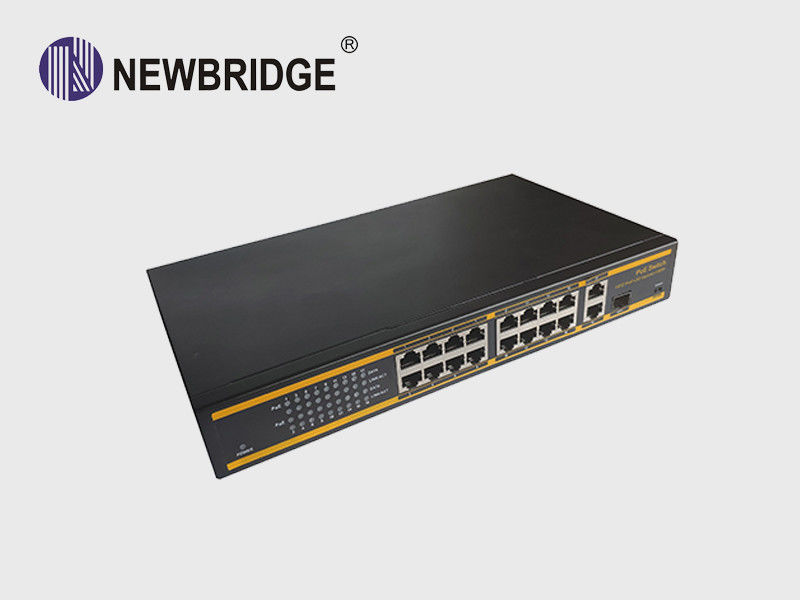

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

    • 10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
    • 10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port
  • 10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND1PD1603FGX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Power Adapter Voltage: AC 110V-240V POE Ethernet Port: 1~16 Port : 10/100Mbps
    Transmission Medium: Cat5/5e/6 Standard Network Cable Working Temperature: 0℃~55℃
    Dimension (L×W×H): 312mm*185mm*46mm PoE Standard: IEEE 802.3af/at

    10/100Mbps 16 Port PoE Ethernet Switch with 2*10/100/1000Mbps uplink port and 1 *1000M SFP combo



    1. Overview



    Newbridge® The switch is a compact 16+3 port PoE Switch,With 16 *10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 1*10/100/1000Mbps SFP Port(combo),13 inch,The 16*PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af/at standard,with a maximum output of 30W each port.



    2.Feature



    10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port



    l 16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,1 1000M SFP combo

    l 13 inch,Desk type or long hanger up to 19 inch

    l Support IEEE802.3af/at

    l Support restrain network storm, VLAN function

    l Support Max Transmission distance up to 250m with PoE Power

    l All port supported by MDI/MDIX auto flip and self-negotiation

    l Built-in power supply;

    l Maximum power of single PoE port: 30 W;

    • Maximum PoE power: 250W;

    l Adopts store-and-forward architecture;

    l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

    • Support lightning protection 6000V

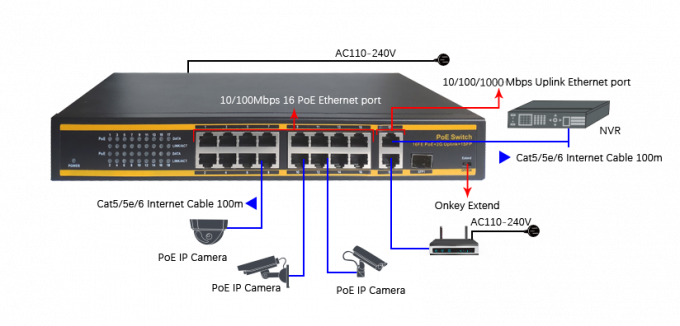

    3.Application Diagram



    10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port

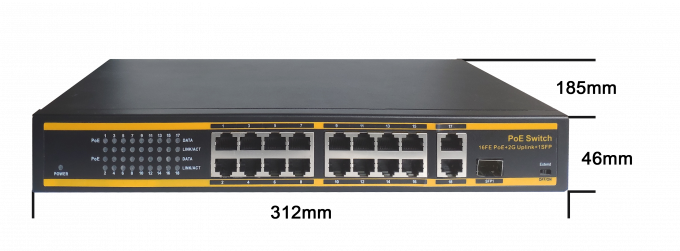

    4. Dimensions



    10/100Mbps PoE Ethernet Switch 16 Port 250W With 2*10/100/1000 Mbps Uplink Port





    5. Specifications



    Item Description
    Power Power Adapter Voltage AC 110V-240V
    Consumption 250W(52V,4.8A)







    Network Connector



    Network Port

    POE Ethernet Port 1~16 Z1ort : 10/100Mbps
    Ethernet port Uplink Port : 10/100/1000Mbps



    SFP Port



    SFP Port: 1000Mbps



    Transmission Distance

    1~16 Port : 100Mbps:0~100m;

    10Mbps: 0~250m;

    Uplink Port : 0 ~ 100m



    SFP: depends on the optical module(20km/40km...)

    Transmission Medium Cat5/5e/6 standard network cable





    Network Switch

    Network Standard

    IEEE802.3/802.3u,

    IEEE802.3x,IEEE802.ab

    Switching Capacity 7.2Gbps
    Packet Buffer Memory 1Mbits
    Throughput 5.3568Mbit
    MAC Table 2K





    Packet Forwarding Rate

    10Mbps:14880pps/port

    100Mbps:148800pps/port

    1000Mbps:1488000pps/port



    Power Over Ethernet

    PoE Standard IEEE 802.3af/at
    PoE Power Supply End-Span(1/2+;3/6-)
    PoE Power af=15.4W,at=30W



    RJ45 port





    Port Function

    Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode



    LED Indicator



    LED Indicator

    LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender



    Environmental

    Working temperature 0℃~55℃
    Relative Humidity 20~95%
    Storage temperature -20℃~70℃



    Mechanical

    Dimension (L×W×H) 312mm*185mm*46mm
    Color Black
    Weight 2.1kg







    6. Order Information



    Part No Description of product Unit
    ND1PD1603FGX 19 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
