4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND1P1602FG |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 3000pcs per month |
Power Adapter Voltage: | AC 110V-240V | POE Ethernet Port: | 1~16 Port : 10/100Mbps |
---|---|---|---|
Transmission Medium: | Cat5/5e/6 Standard Network Cable | Working Temperature: | 0℃~55℃ |
PoE Power: | Af=15.4W (every Port) | Weight: | 1647g |

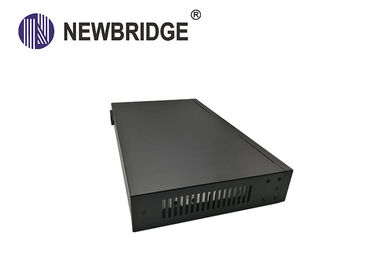

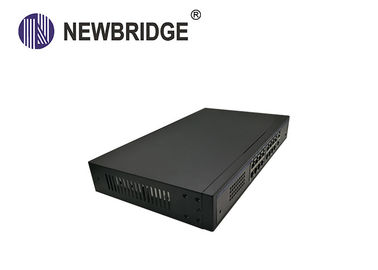

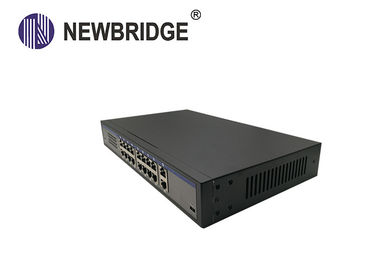

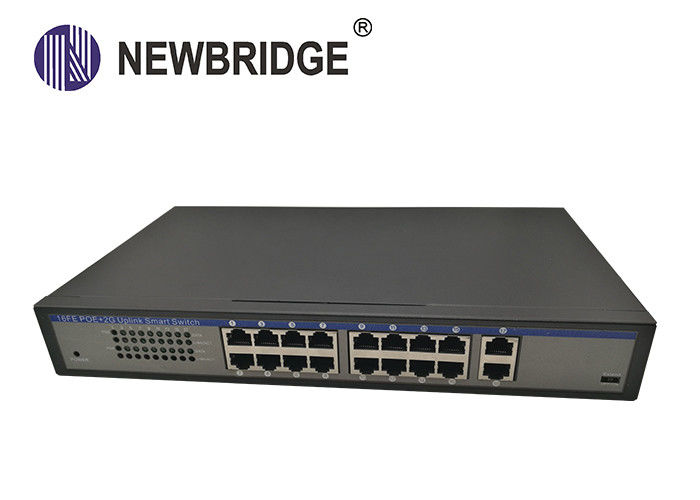

16 POE port+2 Combo port RJ45 100M PoE Switch
1. Overview
Newbridge® The switch is a compact 16+2 port PoE Switch,With 16*10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports ,The 16*PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, all PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.
2.Feature
|
l 16x 10/100Mbps auto-sensing RJ45 ports,16x 10/100Mbps PoE ports, 2*10/100/1000M uplink port l Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters l Supports port auto-flip (Auto MDI/ MDIX);
l Maximum power of single PoE port: 15.4W; l Maximum PoE power: 250W;
|

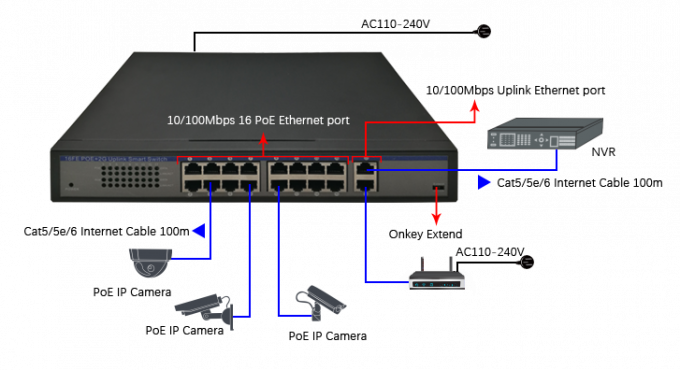

3.Application Diagram
5. Specifications
Power | Power Adapter Voltage | AC 110V-240V | |
Consumption | 250W | ||
Network Connector |
Network Port | POE Ethernet Port | 1~16 Port : 10/100Mbps |
Ethernet port | Uplink Port : 10/100/1000Mbps | ||
Transmission Distance |
1~16 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
Uplink Port : 0 ~ 100m | |||
Transmission Medium | Cat5/5e/6 standard network cable | ||
Network Switch |
Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D | |
Switching Capacity | 9.2G | ||
Packet Forwarding | 6.8448Mpps | ||
MAC Table | 2K | ||
Power Over Ethernet |
PoE Standard | IEEE 802.3af | |
PoE Power Supply | End-Span(1/2+;3/6-) | ||
PoE Power | af=15.4W (every port) | ||
LED Status Indicator |
PoE Ethernet LED Indicator |
Power: 1 red light indicates that the power normal work; | |
PoE: 16 yellow lights indicate that the PoE is power on; | |||
Ethernet:18 green lights indicate that the Ethernet Link and Act; | |||
Environmental |
Working temperature | 0℃~55℃ | |
Relative Humidity | 20~95% | ||
Storage temperature | -20℃~70℃ | ||
Mechanical |

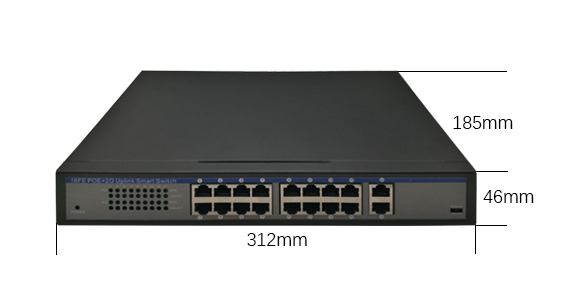

Dimension (L×W×H) | 312mm*185mm*46mm | |
Color | Black | ||
Weight | 1647g | ||
Stability | MTBF | >30000h |
6. Order Information
Part No | Description of product | Unit |
ND1P1602FG | 18 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) | pc |
