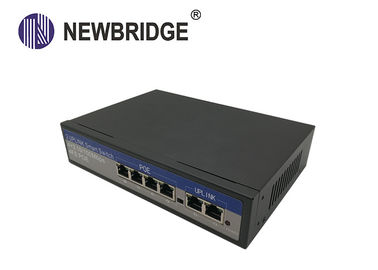

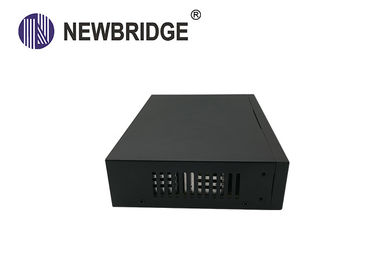

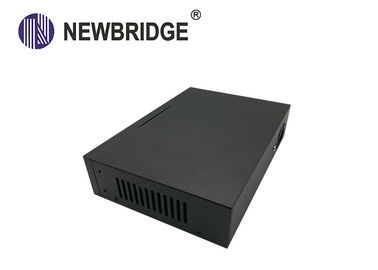

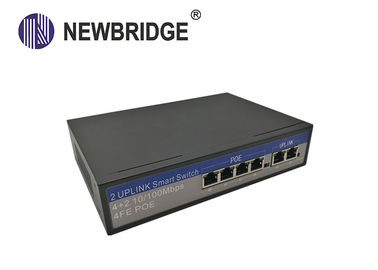

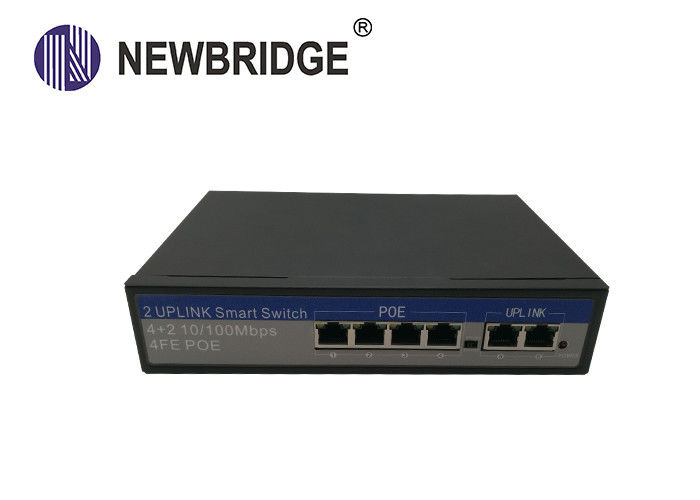

RJ45 Interface Power Over Ethernet Switch 4 Port POE Power Supply For Cctv Security System

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND1P402F

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Power Adapter Voltage:	AC 110V-240V	POE Ethernet Port:	1～4 Port : 10/100Mbps
Transmission Medium:	Cat5/5e/6 Standard Network Cable	Working Temperature:	0℃~55℃
Dimension (L×W×H):	202mm140mm45mm	Weight:	605g

4 ports POE Switch With 2 Uplink RJ45 Interface In Network Switches standard POE power supply for cctv security system

1. Overview

RJ45 Interface Power Over Ethernet Switch 4 Port POE Power Supply For Cctv Security System Newbridge® The switch is a compact 4+2 port PoE switch,with 4 10/100 Mbps PoE Ports, and 2 10/100Mbps Uplink Port,The 4 PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD), such as VOIP phones,IP Cameras,all PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port

2.Feature

RJ45 Interface Power Over Ethernet Switch 4 Port POE Power Supply For Cctv Security System

l 4x 10/100Mbps auto-sensing RJ45 ports,4x 10/100Mbps PoE ports, 2*10/100M uplink port

l Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters

l Supports port auto-ﬂip (Auto MDI/ MDIX);

l Built-in power supply;

l Maximum power of single PoE port: 15.4W;

l Maximum PoE power: 75W;

l Adopts store-and-forward architecture;

l IEEE 802.3af power on up to 4 ports

l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

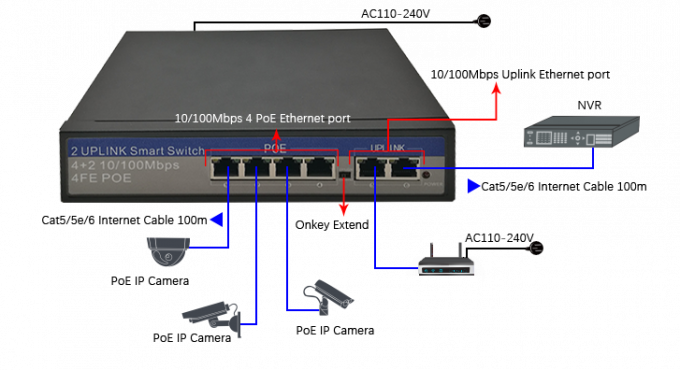

3．Application Diagram

RJ45 Interface Power Over Ethernet Switch 4 Port POE Power Supply For Cctv Security System

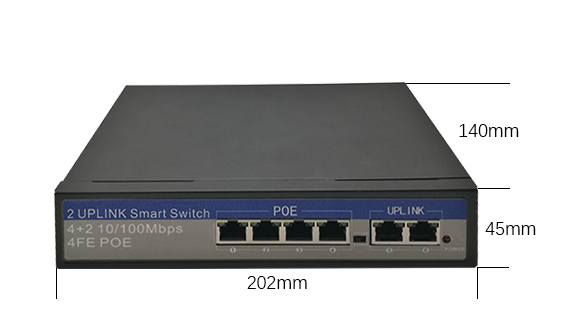

Dimensions

RJ45 Interface Power Over Ethernet Switch 4 Port POE Power Supply For Cctv Security System

5. Specifications

Power	Power Adapter Voltage		AC 110V-240V
	Consumption		75W
Network Connector	Network Port	POE Ethernet Port	1～4 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100Mbps
	Transmission Distance		1～4 Port : 100Mbps:0~100m; 10Mbps: 0~250m;
			Uplink Port : 0 ~ 100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D
	Switching Capacity		1G
	Packet Forwarding		0.74Mpps
	MAC Table		2K
Power Over Ethernet	PoE Standard		IEEE 802.3af
	PoE Power Supply		End-Span(1/2+;3/6-)
	PoE Power		af=15.4W (every port)
LED Status Indicator	PoE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work;
			POE: 4 yellow lights indicate that the POE is power on;
			Ethernet:6 green lights indicate that the Ethernet Link and Act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		202mm140mm45mm
	Color		Black
	Weight		605g
Stability	MTBF		>30000h

6. Order Information

Part No	Description of product	Unit
ND1P402F	6 ports switch with 410/100M bit PoE ports,210/100M Uplink Port,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)	pc
