Fiber: | Single Fiber | Device Type: | Optical SFP Module |
---|---|---|---|
Data Rate: | 10G | Operating Temperature: | 0°C To 70°C |
Power Supply: | +3.3V | Low Power Consumptionor: | <1.5W |

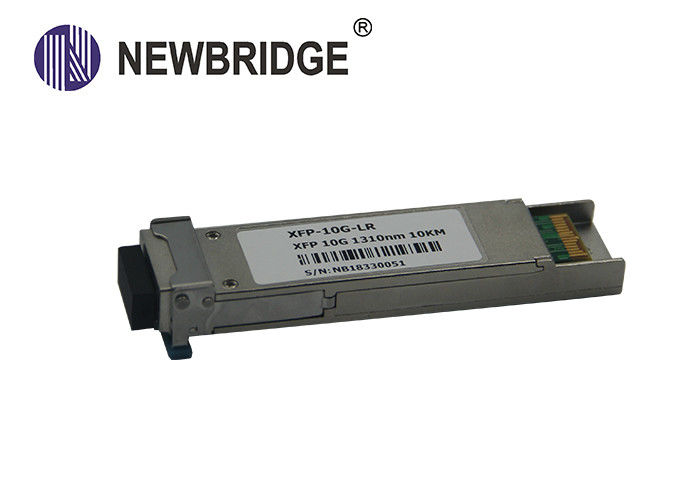

NDXP-10G-LR inter-converting the 10Gb/s serial electrical data stream with the 10Gb/s optical signal, complies with the current XFP Multi-Source Agreement (MSA) Specification, 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. It provides Digital diagnostics functions via a 2-wire serial interface. The high-performance 1310nm DFB transmitter and high-sensitivity PIN receiver provide superior performance for Ethernet applications up to link length of 10km on single mode fiber.
Features:
Applications:
Ordering Information:
Part Number | Data Rate | Distance | Wavelength | Laser | Fiber | DDM | Connector | Temperature | |||||||||||||||||||
SHXP-10G-LR | 10Gb/s | 10km | 1310nm | DFB/PIN | SM | Yes | Duplex LC | 0~ 70°C | |||||||||||||||||||
SHXP-10G-LR-I | 10Gb/s | 10km | 1310nm | DFB/PIN | SM | Yes | Duplex LC | -40~ +85°C | |||||||||||||||||||
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit | ||||||||||
Storage Temperature | TS | -40 | +85 | ℃ | ||||||||||
Case Operating Temperature | SHXP-10G-LR | TA | 0 | +70 | ℃ | |||||||||
SHXP-10G-LR-I | -40 | +85 | ||||||||||||
Supply Voltage | VCC | -0.5 | +4.0 | V | ||||||||||
Parameter | Symbol | Min | Typ | Max | Unit | Note | ||
Supply Voltage | Vcc3 | 3.13 | 3.45 | V | ||||
Supply Current | Icc3 | 400 | mA | |||||
Module total power | P | 2 | W | |||||
Transmitter | ||||||||
Input differential impedance | Rin | 100 | Ω | 1 | ||||
Differential data input swing | Vin,pp | 150 | 820 | mV | ||||
Transmit Disable Voltage | VD | 2.0 | Vcc | V | ||||
Transmit Enable Voltage | VEN | GND | GND+ 0.8 | V | ||||
Transmit Disable Assert Time | T_off | 100 | ms | |||||
Tx Enable Assert Time | T_on | 100 | ms | |||||
Receiver | ||||||||
Differential data output swing | Vout,pp | 300 | 500 | 850 | mV | |||
Data output rise time | tr | 35 | ps | 2 | ||||
Data output fall time | tf | 35 | ps | 2 | ||||
LOS Fault | VLOS fault | Vcc – 0.5 | VccHOST | V | 3 | |||
LOS Normal | VLOS norm | GND | GND+0.5 | V | 3 | |||
Power Supply Rejection | PSR | See Note 4 below | 4 | |||||
Notes: 1. After internal AC coupling.
2. 20 – 80 %
3.Loss of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |||||||||
Transmitter | |||||||||||||||
Operating Date Rate | BR | 9.95 | 11.3 | Gb/s | |||||||||||
Bit Error Rate | BER | 10-12 | |||||||||||||
Maximum Launch Power | PMAX | -6 | 0 | dBm | 1 | ||||||||||
Optical Wavelength | λ | 1260 | 1310 | 1355 | nm | ||||||||||
Optical Extinction Ratio | ER | 6 | dB | ||||||||||||
Spectral Width@-20dB | Δλ | 1 | nm | ||||||||||||
Sidemode Supression ratio | SSRmin | 30 | dB | ||||||||||||
|Optical Transceiver Datasheet| | |||||||||
Rise/Fall Time (20%~80%) | Tr/Tf | 35 | ps | ||||||
Average Launch power of OFF Transmitter | POFF | -30 | dBm | ||||||
Tx Jitter | Txj | Compliant with each standard requirements | |||||||
Optical Eye Mask | IEEE802.3ae | 2 | |||||||
Receiver | |||||||||
Operating Date Rate | BR | 9.95 | 11.3 | Gb/s | |||||
Receiver Sensitivity | Sen | -15 | dBm | 2 | |||||
Maximum Input Power | PMAX | 0 | dBm | 2 | |||||
Optical Center Wavelength | λC | 1260 | 1355 | nm | |||||
Receiver Reflectance | Rrx | -14 | dB | ||||||
LOS De-Assert | LOSD | -22 | dBm | ||||||
LOS Assert | LOSA | -25 | dBm | ||||||
LOS Hysteresis | LOSH | 0.5 | 5 | dB | |||||
