Single port poe injector support IEEE 802.At standard

Single port poe injector support IEEE 802.At standard

Single port poe injector support IEEE 802.At standard

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: CE,FCC
Model Number: ND-PD3101-at

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
DC Output: 12V,1A Size: 88*30*26mm
Storage Temp.: -40ºC-70ºC Operating Hum.: 10%-90%
Standard: IEEE 802.3At Port: 100Mbps RJ45

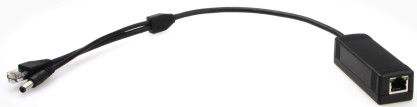

Single port poe injector support IEEE 802.At standard





Product  Description
ND-PD3101-at is a single port poe injector,it is support IEEE 802.At standard,maximum up to 30watts of power output over UTP cables.It is designed specially to fill the demand of the growing higher power required network equipment such as IP camera,wireless access point,IP telephone etc.The ND-PD3101-at is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.





Specification

Standard IEEE 802.3, IEEE 802.3U, IEEE 802.3X,IEEE 802.3At
Port 10/100M RJ45
DC Interface
Media 10BASE-T:3/4/5 UTP CABLE(≤100m)
10BASE-TX: 5 UTP CABLE(≤100m)
LED indicator POWER
DC output 12V,1A
RJ45 POE POWERED 4,5+;7,8- pair
1,2+;2,6-pair
Size(L*W*H) 88*30*26mm
Operating Temp. -10ºC-45ºC
Storage Temp. -40ºC-70ºC
Operating Hum. 10%-90%,No condensation
Storage Temp. 5%-90%, No condensation
EMC CE Mark,commercial, FCC part 14 Class B

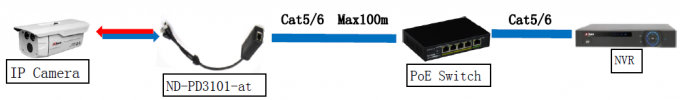

Application Diagram

Single port poe injector support IEEE 802.At standard







Order Information

Part No Description of product Unit
ND-PD3101-at IEEE802.3at Standard 1pcs
