HDMI Version: | HDMI 1.4a | HDCP Version: | HDCP1.4 |
---|---|---|---|
Max Working Current: | 600mA | Operating Temperature Range: | (-15 To +55℃) |
Product Dimension: | 89*69*29mm | Weight: | 140g |
vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter

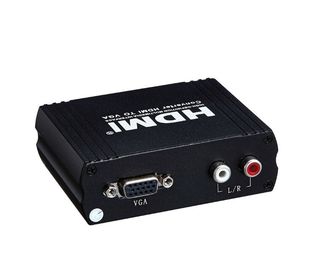

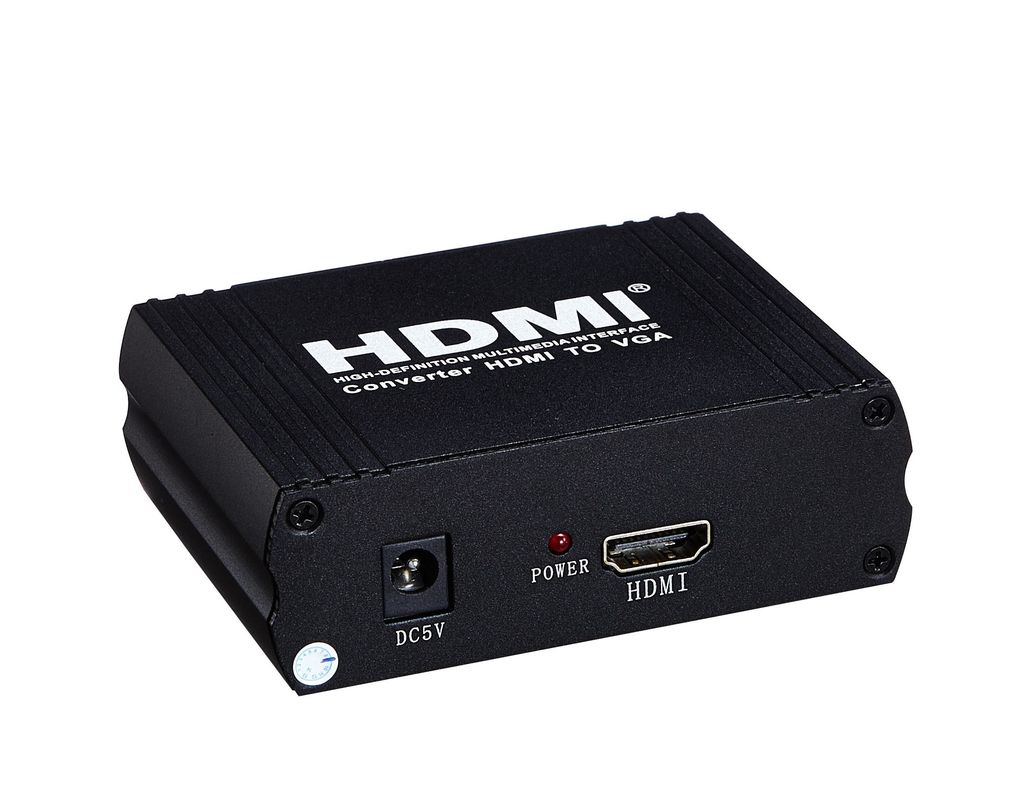

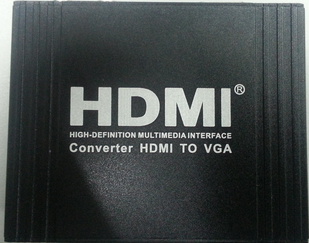

HDMI TO VGA CONVERTER:
The HDMI to VGA converter support HDMI1.4b and HDCP1.4.The VGA output port support 10-bit resolution up to 165MHz pixel rate(1080p/UXGA).Support 422 to 444 converter and with
One L/R audio output.
Feature
★ Support HDMI1.4b
★ Support HDCP1.4
★ Supports highest video resolution 1080p/60Hz and UXGA.
★ Support 10-bit resolution uo to 165 MHz pixel rate
★ Support 442 to 444 converter.
★ DC5V/1A power supply

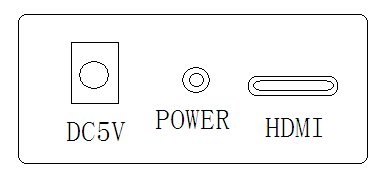

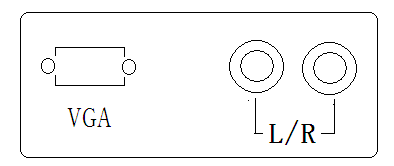

Physical Connection Showing Picture
SPECIFICATIONS:
HDMI version:HDMI 1.4a
HDCP version :HDCP1.4
Support video color format :1080P/60Hz/UXGA (10-bit color/165Mhz pixel rate
Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS /DSD
Max working current:600mA
Power adapter format..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55℃)
Dimension (L x W x H):89X69X29(mm)
Weight:140g

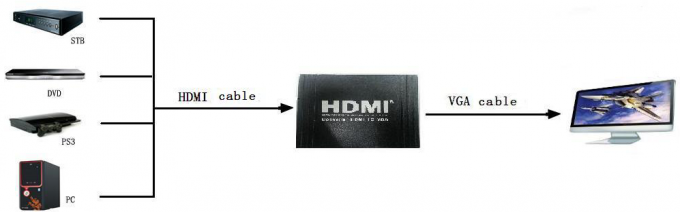

Operation and connections:
1: Connect one cable from HDMI source device into HDMI input.
2: Connect one cable from displayer into VGA output.
3: Connect power adapter to the converter.
The Package includes:
1. HDMI to VGA converter 1pc
2. 5V DC Power adapter 1pc
3. User Manual 1pc
