| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND8210S-SP03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Max Bandwidth: | 225Mhz | Max Working Current: | 500mA |
|---|---|---|---|
| Operating Temperature Range: | (-15 To +55℃) | Operating Humidity Range: | 5 To 90%RH |
| Size: | 278x140x25 (mm) | Weight: | 640g |
| Highlight: | hdmi port splitter,hdmi digital splitter |
||

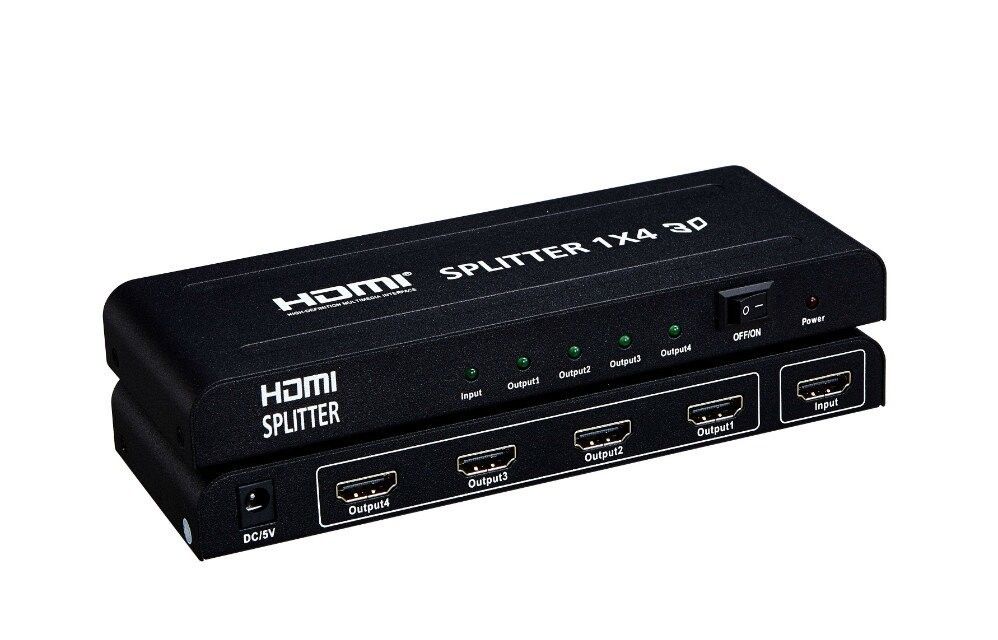

1.4a 1x2 2 port hdmi splitter for TV Video Splitter 4 Port HDMI Splitter 1 In 4 Out
The HDMI Splitter 1x4 uses a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI device to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 1920x1080/60HZ.
FEATURES
1. Support HDMI 1.4a
2. Support Full 3D
3. Support HDMI resolution up to 1920x1080/60Hz
4. Support the max baud rate of 2.25G and max bandwidth of 225Mhz
5. Support deep color 8/10/12bit
6.Support input up to 15 metres AWG26 HDMI standard cable length, output up to 25 metres AWG26 HDMI standard cable length
7. Displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
8. 5V / 1A power adapter
Specification
| HDMI version | HDMI 1.4a |
| HDMI resolution | 1920*1080/60Hz |
| Support video color format | 8/10/12bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD /DTS/Dolby-AC3/DSD |
| Max bandwidth | 225MHz |
| Max baud rate | 2.25Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
| Input cable distance | ≤15m AWG26 HDMI standard cable |
| Output cable distance | ≤25m AWG26 HDMI standard cable |
| HDMI input | 1 HDMI |
| HDMI output | 4 HDMI |
| Max working current | 850mA |
| Power adapter format | Input:AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) |
178x66x20(mm) |
| Weight | 220g |
Produce diagram
Connecting diagram
Connecting operation
