VGA+R/L Radio to HDMI support up to 1080 Video Audio Converter HDMI Splitter

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	CE,FCC
Model Number:	ND1106-C03

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Max Bandwidth:	165Mhz	Max Baud Rate.:	1.65Mhz
Max Working Current:	500mA	Audio Input:	R/L Analog
Product Dimension:	906931mm	Weight:	140g

VGA+R/L Radio to HDMI support up to 1080 Video Audio Converter HDMI Splitter

Feature

★ One VGA+R/L input signal convert to TMDS signal which supports HDMI
★ Support video input : VGA analog
★ Support audio input : R/L analog
★ HDMI output : Support up to 1920x1080, same format as input
★ LED indication: when source or sink is working, the related LED lights up
★ Support output up to 20 metres AWG26 cable length
★ No loss of quality
★ Installs in minutes
★ Need DC5V/1A power supply or USB to DC cable for charging

Specifications

VGA Input:Support SXGA/SGA/UGA(50/60/75HZ)

Audio Input:R/L Analog

HDMI resolution:Support up to 1920x1080/60Hz

Max bandwidth:165Mhz

Max baud rate.:1.65Mhz

Output cable distance:≤20m AWG26 HDMI standard cable

Input Video signal:0.5~1.5Volts p-p

Output DDC signal:5Volts p-p (TTL)

Max working current:500mA

Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

Operating Temperature range:(-15 to +55℃)

Operating Humidity range:5 to 90%RH (No Condensation)

Dimension (L x W x H):90x69x31(mm)

Weight:140g

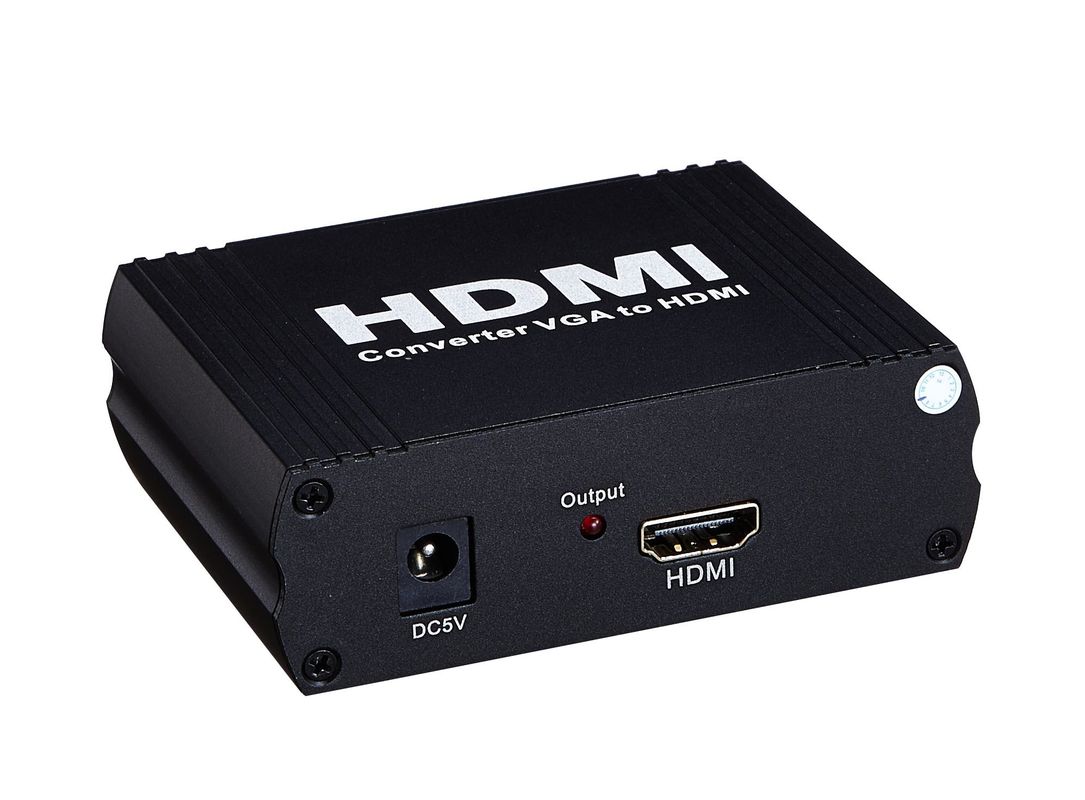

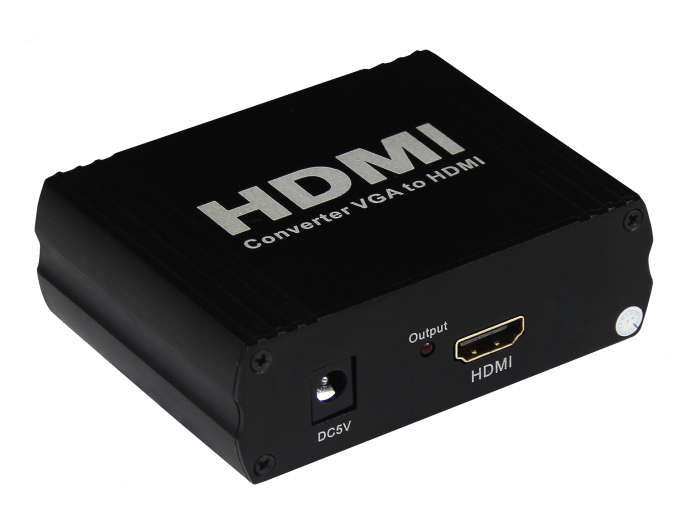

Pictures of Product

VGA+R/L Radio to HDMI support up to 1080 Video Audio Converter HDMI Splitter

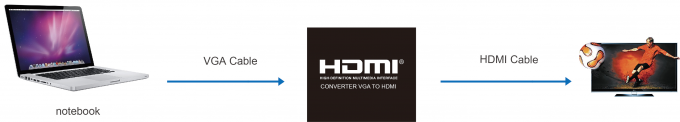

Product connection diagram:

VGA+R/L Radio to HDMI support up to 1080 Video Audio Converter HDMI Splitter

Operation and connections:

1.Connect VGA+R/L source to the input of VGA to HDMI converter.
2.Connect HDMI display terminal to the output of VGA to HDMI converter via a HDMI cable.
3.Connect 5V power supply to VGA to HDMI converter

The Package includes:

1. VGA to HDMI converter x1pc
2. 5V DC Power adapter or USB to DC cable x1pc
3. User Manual x1pc

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.2. All parts will be free from the strong shake, hit, fall.3. Touching the power adaptor with the wet hands is prohibited.4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.5. Pls turn the power off when the machine is not used for long time.6. Pls do not open the cover and do not touch the inside parts.7. Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO	Trouble Description	Cause and Ways to deal with
1	Non-Power-Connected	1,Check if the power adaptor head is truly and correctly inserted the power socket. 2,Check the power switch if it is in on status.
2	No Picture	Pls to make sure that the TV is on and has been connected with the machine. To check if the signal source is on and well connected. Check the system connection quality. Check if the line is all good quality. 5,Check the cable quality
3	Obscure Picture	To try again to connect the cable to be free from the unsuccessful connection. HDMI Cable Quality
