4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-1024G |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
MAC Address: | 8K | Each Port: | Link/Ack |
---|---|---|---|
Stored And Forward: | Support | Gigabit SFP Port: | 2 |
Bandwidth: | 48Gbps | Temperature: | 0℃~40℃ (32°F ~104°F) |
Input Power: | 100-240V,50/60Hz | Dimension: | 440mm×180mm×44mm |

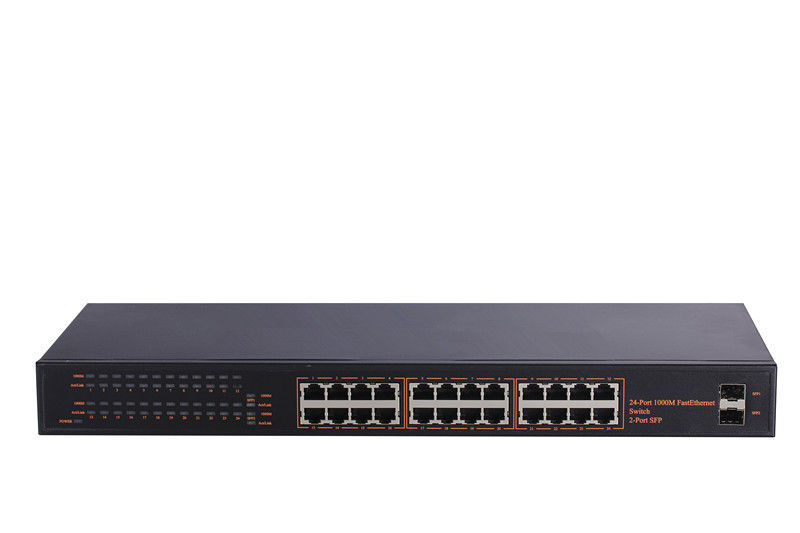

PoE Ethernet Switch 24 port 10/100/1000Mbps Network Switch with SFP port
Overview
ND1024G,with 24 10/100/1000M auto-negotiation RJ45 port and 2 separate SFP optical fiber module extension slots.
Key features
Support 24 10/100/1000M auto-negotiation RJ45 ports
Support 2 10/100/1000M SFP port
Support IEEE 802.3x Flow Control for Full Duplex and back pressure for half Duplex
Technical Specification
ND-1024G | |||
Standards and Protocols | IEEE 802.3,IEEE 802.3U | ||
IEEE 802.3ab,IEEE 802.3x | |||
Ports | 10/100/1000M | 24 | |
RJ45 ports | |||
Gigabit SFP port | 2 | ||
Indicators | Each port | Link/Ack | |
Each device | Power | ||
Features | Stored and forward | Support | |
Bandwidth | 48Gbps | ||
MAC address | 8K | ||
Operating Environment |
Operating Temperature:0℃~40℃ (32°F ~104°F) Storage Temperature:-40℃~70℃(-40°F~158°F) Operating Humidity:10%~90% RH( non-condensing) Storage Humidity:5%~90% RH (no-condensing) |
||
Input Power | 100-240V,50/60Hz | ||
Demersions(L×W×H) | 440mm×180mm×44mm |
User Guide:
Check the Network switch
Please check the enclosure,RJ45 ports,LED indicators ,sure they are ok.
Connect the Network switch with power,make sure the initialization of Network switch is available as below:
POW indicator is off at the beginning when power connected
POW indicator is on and keeps
Other indicators will be on ,then off after one or two seconds
2.Connection cables:

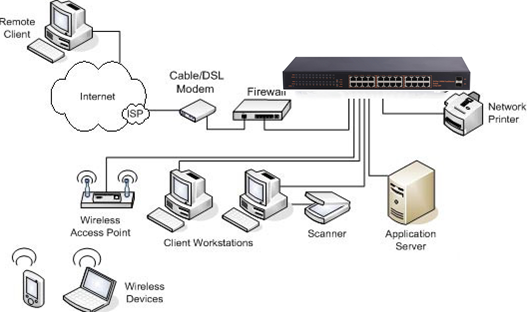

① Connected the Switch to Computer or other PD( like IP camera, wireless AP) by CAT5 or 6 cables
② Connected the external power adapter to Switch and the power cord to AC plug
③ Turn on the switch
Installation
LED Indicator:
Name | Status | Indication |
Power |
On (Green) | The Switch is powered on. |
Off | The Switch is powered off. | |
Link |
On (Yellow) |
PD is connected correct and a valid link is established on the port. |
Off |
No PD is connected to the corresponding port or cable connect incorrect or the CAT5 cables damaged | |
ACT | On(Green) |
PD is connected and work |
Off | No network device or cable connected incorrect or the cables damaged |
Caution:
1) All operation should be provided only by a qualified service technician.
2) Please avoid any heavy thing placed on the Device.
3) Do not use this product near water, for example, in a wet basement or near a swimming pool.
4) For outdoor use, the device itself should be housed inside a protective enclosure.
5)Cutting power during a firmware upgrade can damage your device.
6)Only use attachments/accessories specified by the manufacturer.
7)Opening the switch or tampering with the warranty sticker can void your warranty.
