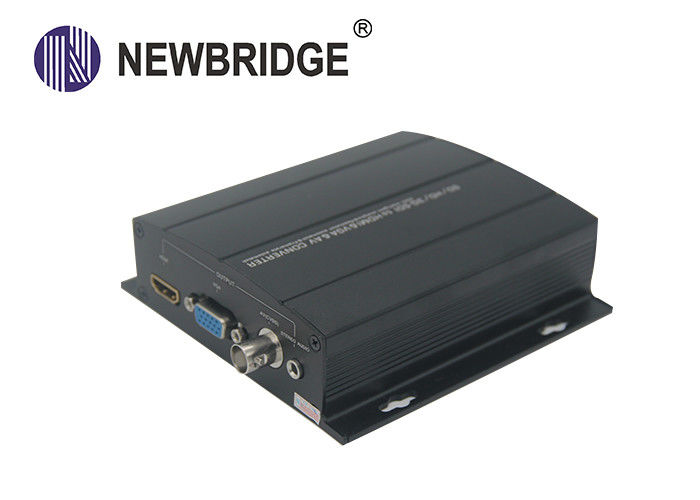

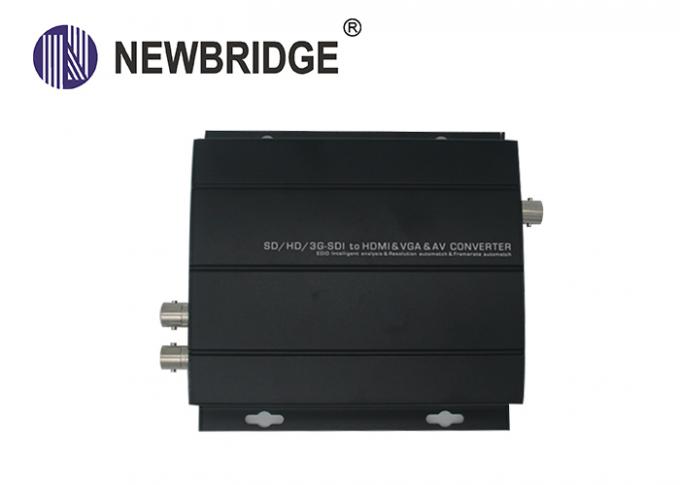

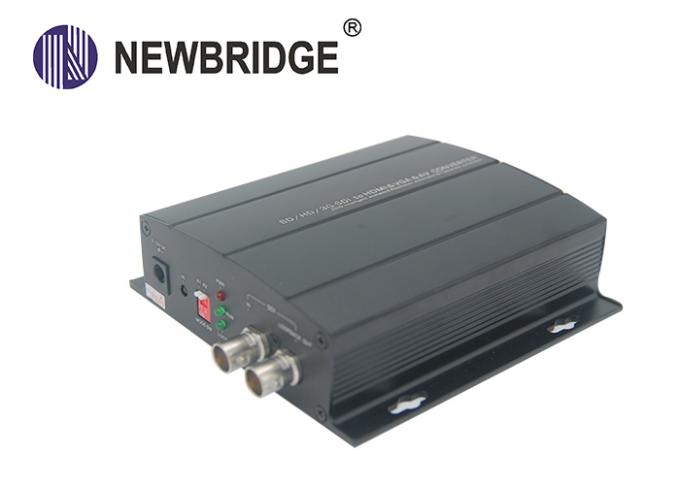

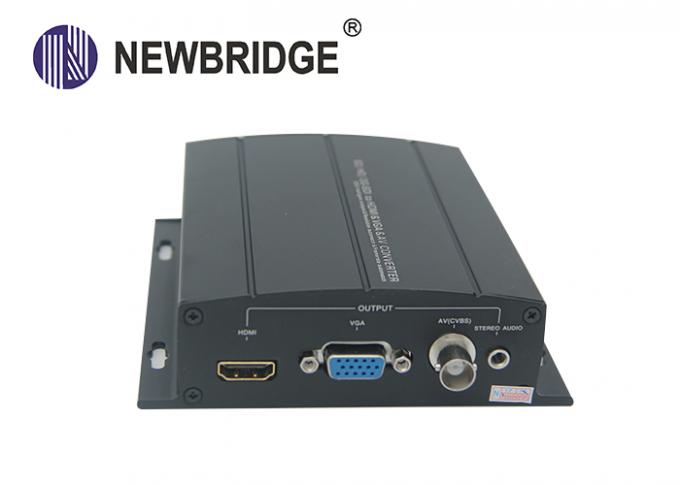

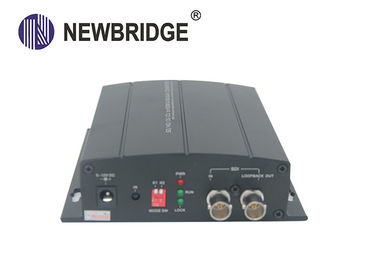

1080P HD SDI Converter SDI/HD/3G-SDI to HDMI & VGA & AV converter High definetion

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-6810P

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Size:	158×120×36mm	InputInterface:	1xBNCSDI
PowerSupply:	5V~24V DC	PowerConsumption:	3~6 Watts
StorageTemperature:	-30°C~70°C	SDIImpedance:	75ohms

1080P HD SDI Converter SDI/HD/3G-SDI to HDMI & VGA & AV converter High definetion

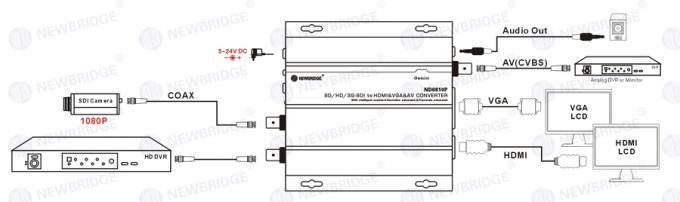

Newbridge® ND6810P SD HD 3G-SDI to HDMI & VGA & AV Converter converts single channel SDI signal to HDMI signal and VGA signal and AV(CVBS signal) It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability Simultaneously it also separates and converts the audio signal of SDI, then embed it to HDMI signal or VGA Signal or AV signal Then outputanalog audio DACs It supports multiple resolution up to 1920x1080@60HZ

Feature

◆Support all type SDI resolution:

◆SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.

◆Carry 1 channel SDI signal loop out.

◆Support for OSD menu operation interface

◆Automatically detect the HDMI EDID information adaptive HDMI best mode

◆Support all formats asymmetric conversion

◆The signal lost blue screen warning

◆VGA output format can be specified 720p/1080p

◆Automatically embed SDI audio signal to HDMI signal.

◆User selectable output format (HDMI and VGA and AV)

◆Intelligent adaptation of PAL / NTSC

Specification

Model	ND-6810P
InputInterface	1xBNCSDI
InputSignalType	SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
SupportInputFormat	SD:525i@ 59.94Hz,625i@ 50Hz HD:720p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 720p@ 50Hz/ 59.94Hz/ 60Hz 1080i@50Hz/59.94Hz/ 60Hz 1080p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 3G:1080p@ 50Hz/ 59.94Hz/ 60Hz
SDISignalRange	0.8Vp-p
SDIImpedance	75ohms
SDICouplingType	ACCoupling
Max.InputCoaxLength	Belden1694A SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft
SDILoopOutInterface	1xBNCSDI
HDMI/DVIOutputInterface	1xHDMI1.3
FrequencyBandwidth	165MHz/upto standardwithHDCP:HDMI1.3
VGAOutput	1xVGA
AV (CVBS)	1xBNC –F
Power Supply	5V~24VDC
Power Consumption	3~6Watts
OperatingTemperature	-10°C~60°C/14°F~140°F
StorageTemperature	-30°C~70°C/-22°F~158°F
RelativeHumidity	20~90%RH(Non-condensation)
Dimension	158 × 120×36 mm / 6.22 × 4.72× 1.42 in
Weight	300g
