High Performance HD SDI Converter , Digital Video Converter Single Channel

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-6810HA

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Size:	158×120×36mm	InputInterface:	1xBNCSDI
PowerSupply:	5V~24V DC	PowerConsumption:	3~6 Watts
StorageTemperature:	-30°C~70°C/-22°F~158°F	RelativeHumidity:	20~90%RH

SD/HD/3G-SDI to HDMI & AV Converter / 3G/SD/HD SDI Digital Video Converter

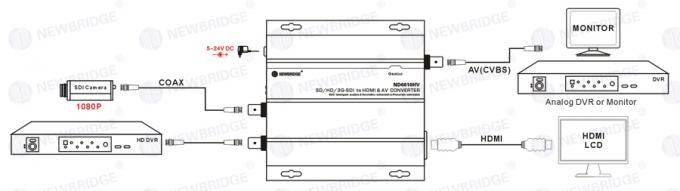

SD HD 3G-SDI to HDMI & AV(CVBS) Converter converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and CVBS signals It integrates SDI Cable equalizer and reclocker to enhance video performance and stability Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output to analog audio DACs

Feature

◆ SupportSDI inputformat:AllSDIFormat
SD: 525i@59.94Hz,625i@ 50Hz
HD: 720p@ 23.98Hz/ 24Hz/ 25Hz/29.97Hz/ 30Hz
720p@ 50Hz/ 59.94Hz/ 60Hz
1080i@ 50Hz/ 59.94Hz/60Hz
1080p@ 23.98Hz/ 24Hz/ 25Hz/29.97Hz/ 30Hz
3G:1080p@ 50Hz/ 59.94Hz/ 60Hz
◆ SupportSMPTE425M(AlevelandBlevel),SMPTE424M,SMPTE292M,SMPTE259M-C.
◆ Carry1channelSDIsignalloopout.
◆ Max.cablelength(Belden1694A):SD-SDI 400m/1300ft,HD-SDI 200m/600ft,3G-SDI140m/450ft
◆ AutomaticallyembedSDI audiosignalto HDMI signal.
◆ Userselectableoutputformat(HDMI andCVBS)
◆ 5V~24VDC

Specification

Model	ND-6810HA
InputInterface	1xBNCSDI
InputSignalType	SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
SupportInputFormat	SD:525i@ 59.94Hz,625i@ 50Hz HD:720p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 720p@ 50Hz/ 59.94Hz/ 60Hz 1080i@50Hz/59.94Hz/ 60Hz 1080p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 3G:1080p@ 50Hz/ 59.94Hz/ 60Hz
SDISignalRange	0.8Vp-p
SDIImpedance	75ohms
SDICouplingType	ACCoupling
Max.InputCoaxLength	Belden1694A SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft
SDILoopOutInterface	1xBNCSDI
HDMI/DVIOutputInterface	1xHDMI
FrequencyBandwidth	165MHz/upto standardwithHDCP:HDMI1.3
AV(CVBS)OutputFormat	CVBS: PAL/ NTSC
Power Supply	5V~24VDC
Power Consumption	3~6Watts
OperatingTemperature	-10°C~60°C/14°F~140°F
StorageTemperature	-30°C~70°C/-22°F~158°F
RelativeHumidity	20~90%RH(Non-condensation)
Dimension	158×120×36mm/6.22×4.72×1.42in
Weight	300g
