Size: | 158×120×36mm | InputInterface: | 1xBNCSDI |
---|---|---|---|
PowerSupply: | 5V~24V DC | PowerConsumption: | 3~6 Watts |
StorageTemperature: | -30°C~70°C/-22°F~158°F | RelativeHumidity: | 20~90%RH |
1080P HD SDI Converter SD/HD/3G-SDI to HDMI & AV Converter High definetion

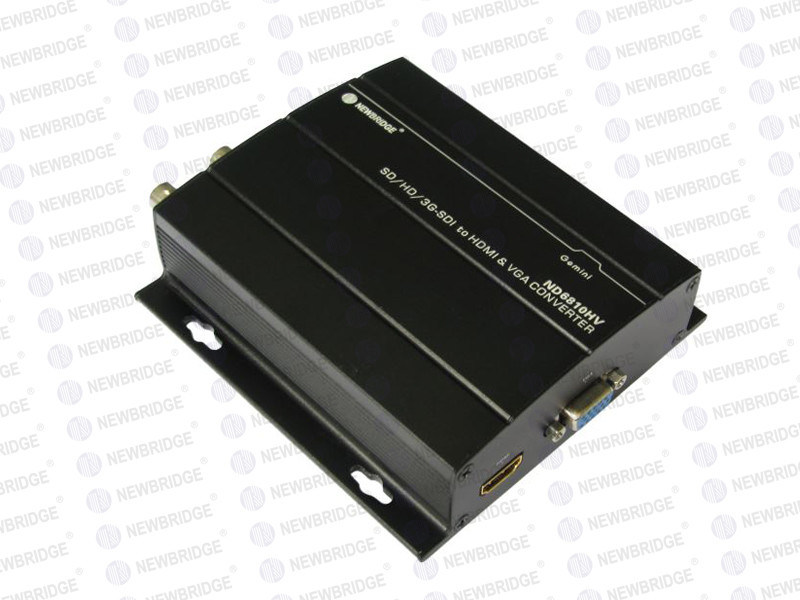

Newbridge® ND6180HV SD HD 3G-SDI to HDMI & VGA Converter converts single channel SDI signal to HDMI signal and VGA signal It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability Simultaneously it also separates and converts the audio signal of SDI, then embed it to HDMI signal or VGA signal It supports multiple resolution up to 1920x1080@60HZ
Feature
◆ Support all type SDI resolution:
SD-SDI:480i,576i
HD-SDI:720p24/25/30/50/59.94/60 all frame rate.
1080i all frame rate,1035i all frame rate
1080p all frame rate
3G-SDI:1080p all frame rate Support
◆ SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
◆ Carry 1 channel SDI signal loop out.
◆ Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI
◆ 140m/450ft
◆ Automatically embed SDI audio signal to HDMI signal.
◆ User selectable output format (HDMI and VGA)
Model | ND-6810HV |
Input Interface | 1xBNCSDI |
Input Signal Type |
SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
SupportInputFormat |
SD:525i@ 59.94Hz,625i@ 50Hz HD:720p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 720p@ 50Hz/ 59.94Hz/ 60Hz 1080i@50Hz/59.94Hz/ 60Hz 1080p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz 3G:1080p@ 50Hz/ 59.94Hz/ 60Hz |
SDISignalRange | 0.8Vp-p |
SDIImpedance | 75ohms |
SDICouplingType | AC Coupling |
Max.InputCoaxLength |
Belden1694A SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft |
SDILoopOutInterface | 1xBNCSDI |
HDMI/DVIOutputInterface | 1xHDMI1.3 |
FrequencyBandwidth | 165MHz/upto standardwithHDCP:HDMI1.3 |
VGAOutputFormat | 1xVGA |
Power Supply | 5V~24VDC |
Power Consumption | 3~6Watts |
OperatingTemperature | -10°C~60°C/14°F~140°F |
StorageTemperature | -30°C~70°C/-22°F~158°F |
RelativeHumidity | 20~90%RH(Non-condensation) |
Dimension | 158×120×36mm/6.22×4.72×1.42in |
Weight | 300g |
Connection diagram
Order information
Part No | Description of product | Unit |
ND-6810HV | SD/HD/3G-SDI to HDMI & AV Converter | pcs |
