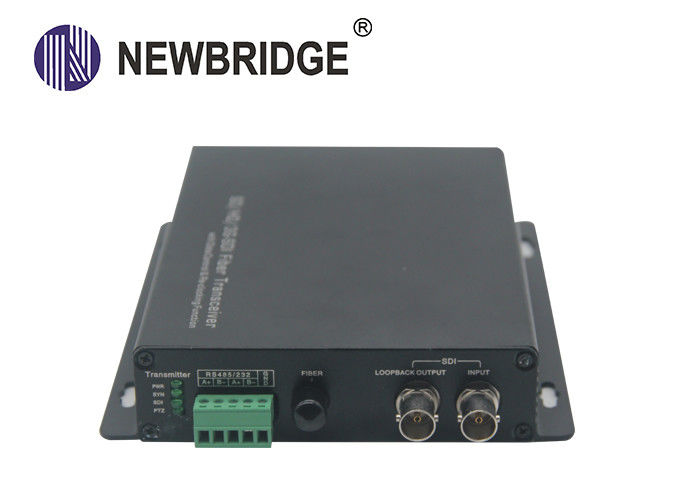

3G HD SDI optical extender with Single Mode Single Fiber

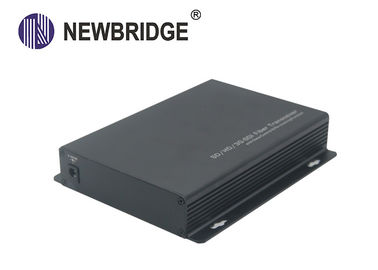

3G HD SDI optical extender with Single Mode Single Fiber

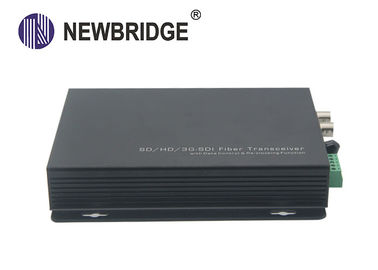

    • 3G HD SDI optical extender with Single Mode Single Fiber

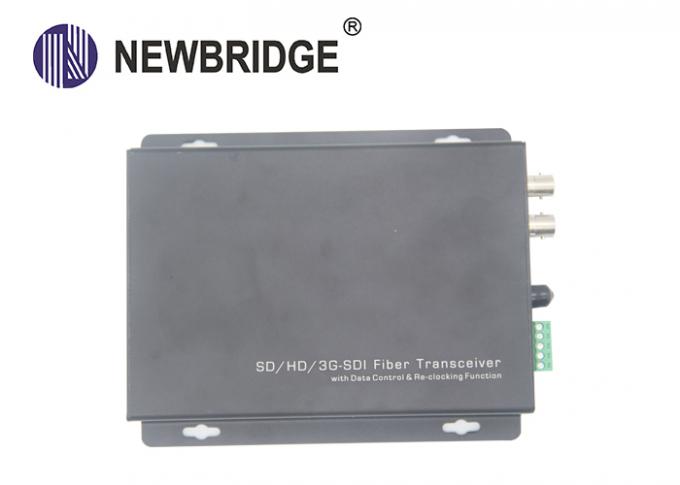

    • 3G HD SDI optical extender with Single Mode Single Fiber

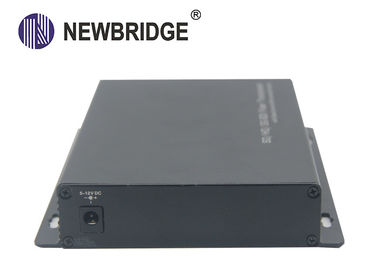

    • 3G HD SDI optical extender with Single Mode Single Fiber

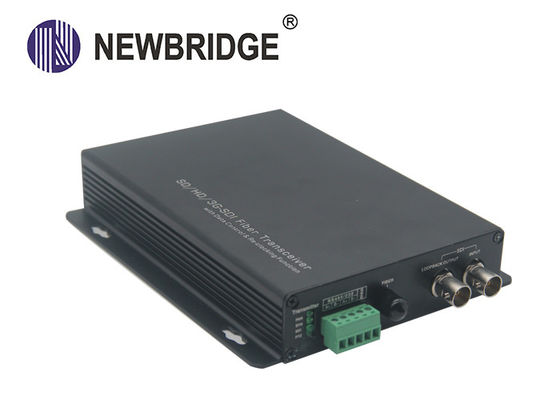

    • 3G HD SDI optical extender with Single Mode Single Fiber
    • 3G HD SDI optical extender with Single Mode Single Fiber
    • 3G HD SDI optical extender with Single Mode Single Fiber
  • 3G HD SDI optical extender with Single Mode Single Fiber

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND8010SG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Pair
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 7-10 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 2000pair per month
    Contact Now
    Detailed Product Description
    Model: ND8010SG-S20 Signal Type: SD-SDI(270Mbps)/ HD-SDI(1.485Gbps)3G-SDI(2.97Gbps)
    Operating Temperature: 0°C ~ 60°C / 32°F ~ 140°F Power Supply: 5~24DC
    Storage Temperature: -30°C ~ 70°C / -22°F ~158°F Dimension: 176 X 150 X 30 Mm / 6.97x 6.10 X 1.18 Inches
    Weight: 900g (Tx And Rx)

    3G HD SDI Converter optical transceiver with Single Mode Single Fiber



    1. Overview

    Newbridge®ND8010SG SD/HD/3G-SDI Optical Transceiver is a perfect and economic transmission device to transmit HD/HD/3G-SDI video to up to 40KM and Plus, embedded audio and RS485 data via fiber-optic.

    Transmitter is used as sending and Receiver is used as receiving .System support in accordance with SMPTE424M, SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.



    3G HD SDI optical extender with Single Mode Single Fiber

                                      ND8010SG

    l SD,HD,3G auto-detection, supported transmission rate from 270M bit/s to 2.97G bit/s

    l Transmission distance is from 0km to 40KM via multimode fiber or single mode fiber.

    l Support, SMPTE(2.97G) ,SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI

    • Carry 1 channel SDI signal loop out.

    l With 2CH Bi-Di data

    l Operation status indication by LED

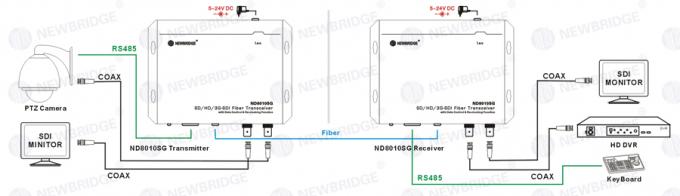

    3.Application Diagram





    3G HD SDI optical extender with Single Mode Single Fiber

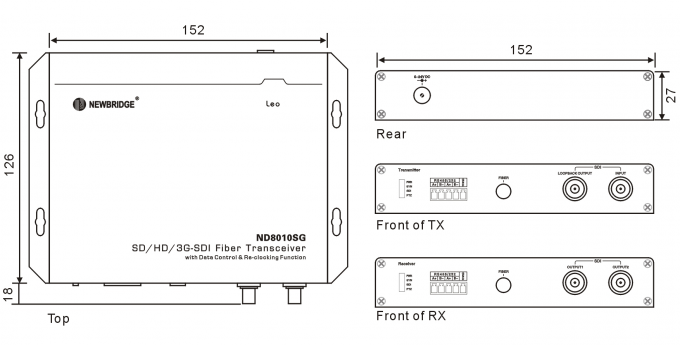

    4. Dimensions

    3G HD SDI optical extender with Single Mode Single Fiber

    5. Specifications



    Model ND8010SG
    Quantity/Type Single Mode, Single Fiber
    Video port 1CH BNC SDI
    SDI Loop Out Interface 1CH BNC SDI
    Transmission Distance 0m-20Km/40km optional
    Fiber Connector FC/APC
    Wave Length 1310nm/1550nm
    Transmitted power -10dbm~-3dbm
    Maximum Receiving Sensitivity <-34dbm
    Signal Type SD-SDI(270Mbps)/HD-SDI(1.485Gbps)/3G-SDI(2.97Gbps)
    Support Input Format

    SD: 525i @ 59.94Hz, 625i @ 50Hz

    HD: 720p @ 25Hz / 29.97Hz / 30Hz

    720p @ 50Hz / 59.94Hz / 60Hz

    1080i @ 50Hz / 59.94Hz / 60Hz

    1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz/50Hz/59.94Hz/60Hz

    Video Standard SMPTE 292M , SMPTE 259M and SMPTE424M
    DATA comm. method 2CH RS-485/Half duplex/ Industrial terminals
    In-out electrical level 800mVp-p±10%
    In-0ut Ohm 75Ohm
    Digital Audio 48KHz
    AES digital audio channel 8CH
    Power Supply 5~24DC
    Power Consumption 3~5 Watts
    Operating Temperature 0°C ~ 60°C / 32°F ~ 140°F
    Storage Temperature -30°C ~ 70°C / -22°F ~158°F
    Relative Humidity 20~90% RH (Non-condensation)
    Dimension 176 x 150 x 30 mm / 6.97x 6.10 x 1.18 in
    Weight 900g (Tx and Rx)



    6. Order Information



    Part No Description of product Unit
    ND8010SG-Tx SD/HD/3G-SDI Optical-Transmitter pcs
    ND8010SG-Rx SD/HD/3G-SDI Optical-Receiver pcs
