| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSN1124F-AT |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Size: | 440*290*44mm | Total Power: | 52V 15.5A 800W |
|---|---|---|---|
| Certification: | CE,FCC | PoE Standard: | IEEE 802.3af, IEEE 802.3at |
| Port: | 24 | Maximum Power: | 30 Watts |

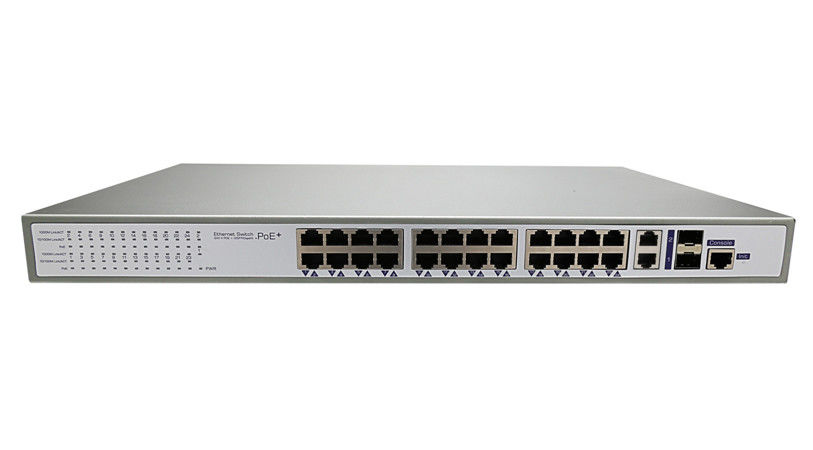

High Performance 10/100M 800W 24 Port PoE Switches
Non management*Compatible IEEE802 3af at,IEEE802 3az function*24 X 10 100Mbps RJ45 port*24 X PSE port, Output power up
Feature
Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation
Specification
● 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port:2 Gigabit Ethernet port,Data transmission up to 100m, or 2 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 30 watts power for each PoE port
● IEEE 802.3af, IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V15.5A 800W,build-in power supply

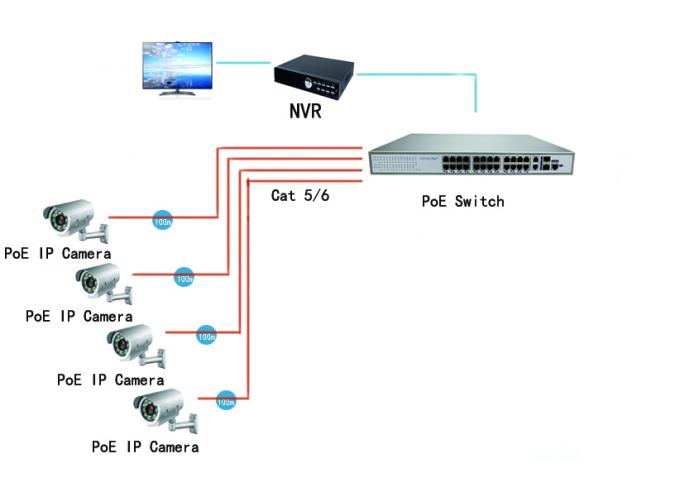

Conection Diagram
Order information
| Part No | Description of product | Unit |
| ND-PSN1124F-AT | ND-PSN1124F-AT PoE Switch | pcs |
