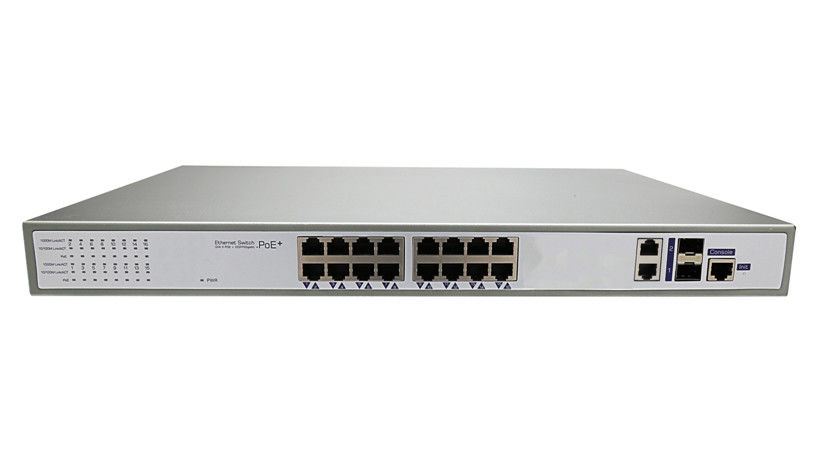

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-PSN1116F-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Poe Maximum Power: 30 Wawtts Key Words: 16
Total Power: 52V 8.7A 450W Size: 440*290*44mm
Transmission Rate: 10/100Mbps Connector Type: RJ45

RJ45 100M Managed 16 Port PoE Switch with 19 Inch Standard Cases



Non management*Compatible IEEE802 3af at,IEEE802 3az function*16 X 10 100Mbps RJ45 port*16 X PSE port, Output power up



Feature

Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation





Specification

● 16 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port:2 Gigabit Ethernet port,Data transmission up to 100m, or 2 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 30 watts power for each PoE port
● IEEE 802.3af, IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V8.7A 450W,build-in power supply

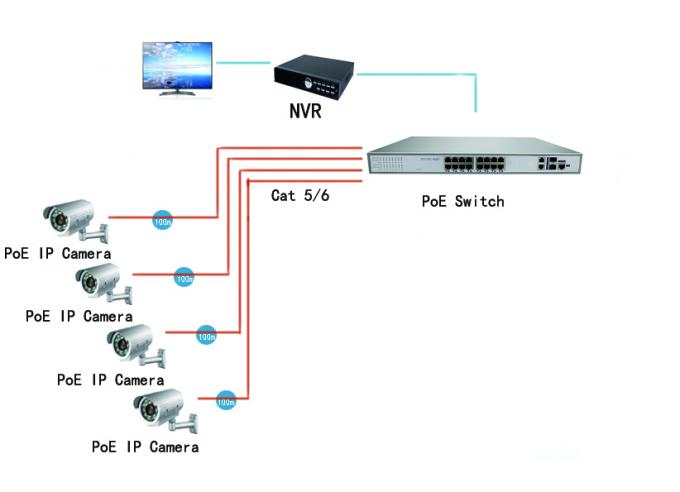

Connection diagram

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases









Order information



Part No Description of product Unit
ND-PSN1116F-AT ND-PSN1116F-AT PoE Switch pcs
