| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSN1108-120 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| PoE Standard: | IEEE802.3af /IEEE802.3at | Certification: | CE,FCC |
|---|---|---|---|
| Size: | 188*95*26mm | Supply Type: | End-Span(1/2+,3/6-) |
| Port: | 9 |

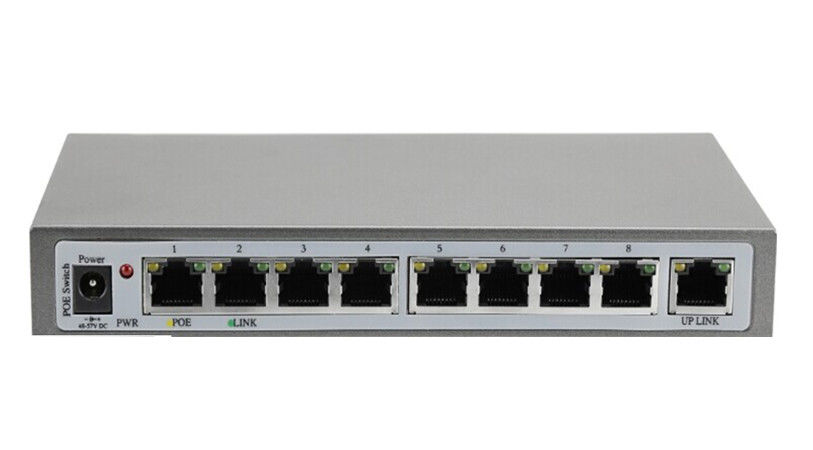

8 port + 1 port RJ45 10/100M 120W PoE Ethernet Switch
Non management*Compatible IEEE802 3af at,IEEE802 3az function*9 X 10 100Mbps RJ45 port*8 X PSE port, Output power up
Feature
● Support IEEE802.3af/IEEE802.3af standard
● 802.3az support energy-efficient features
● Automatically detect the PD
● PoE port support a single output power up to 15.4W
● Port power is automatically assigned
● Dynaic Power Allocation
Specification
● 9x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Built-in 8 PoE Ports (Port 1 ~ Port 8)
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V2.3A 120W

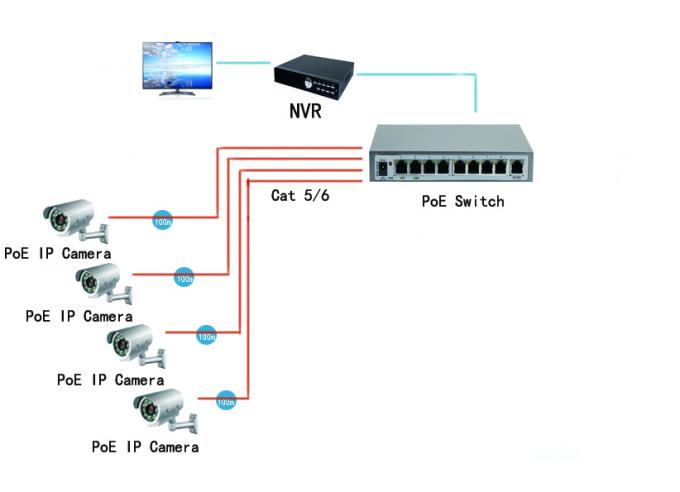

Connection diagram
Order infomation
| Part No | Description of product | Unit |
| ND-PSN1108-120 | ND-PSN1108-120 PoE Switch | pcs |
