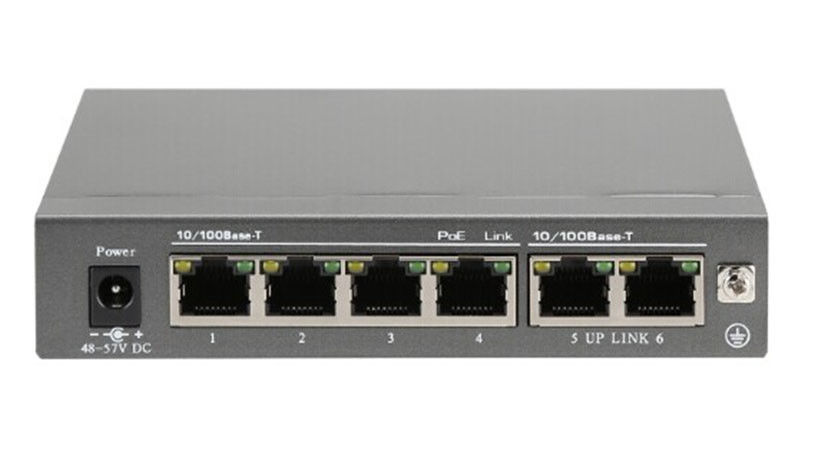

100M 6 Port 120W Manageable PoE Switch 24V Auto Negotiation 135 * 88 * 26mm

100M 6 Port 120W Manageable PoE Switch 24V Auto Negotiation 135 * 88 * 26mm

100M 6 Port 120W Manageable PoE Switch 24V Auto Negotiation 135 * 88 * 26mm

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-PSN1104-6X-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: depends on the quantity
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Size: 135*88*26mm Port: 6
Total Power: 52V 2.3A 120W Certification: CE,FCC
Supply Type: End-Span(1/2+,3/6-) PoE Standard: IEEE802.3af /IEEE802.3at

100M 4 port + 1 RJ45 port ethernet poe switch​



Non management*Compatible IEEE802 3af at,IEEE802 3az function*5 X 10 100Mbps RJ45 port*4 X PSE port, Output power up


Feature

Support IEEE802.3af/IEEE802.3af standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation





Specification

● 6 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m (100Mbps),250m(10Mbps)
● Maximum 30 watts power for each PoE port
● IEEE 802.3af, IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V2.3A 120W





Connection diagram

100M 6 Port 120W Manageable PoE Switch 24V Auto Negotiation 135 * 88 * 26mm





Order infomation

Part No Description of product Unit
ND-PSN1104-6X-AT ND-PSN1104-6X-AT PoE Switch pcs
