| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSNG1124F-450 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |

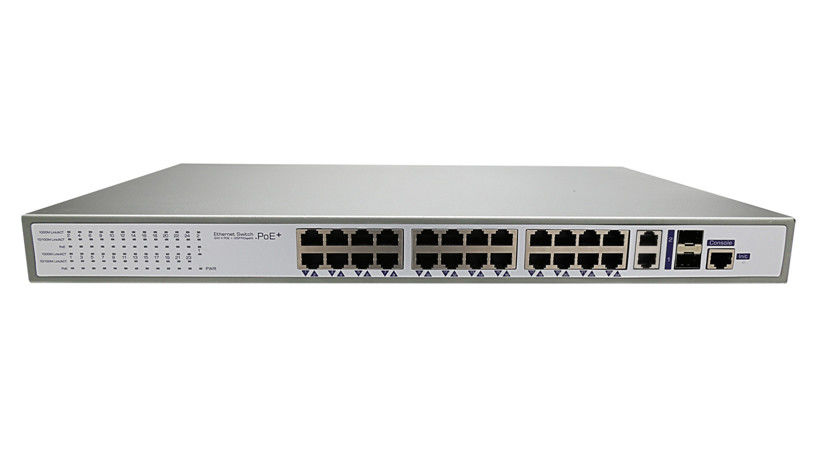

24 port 1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports PoE switch
Non management*Compatible IEEE802 3af at,IEEE802 3az function*24 X 10 100 1000Mbps RJ45 port*24 X PSE port, Output power up
Feature
Support IEEE802.3af/IEEE802.3af standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 15.4W
Port power is automatically assigned
Dynaic Power Allocation
Specification
● 24 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port: 2 Gigabit Fiber Ports,Data transmission: depends on the optical module
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V 8.7A 450W,build-in power supply

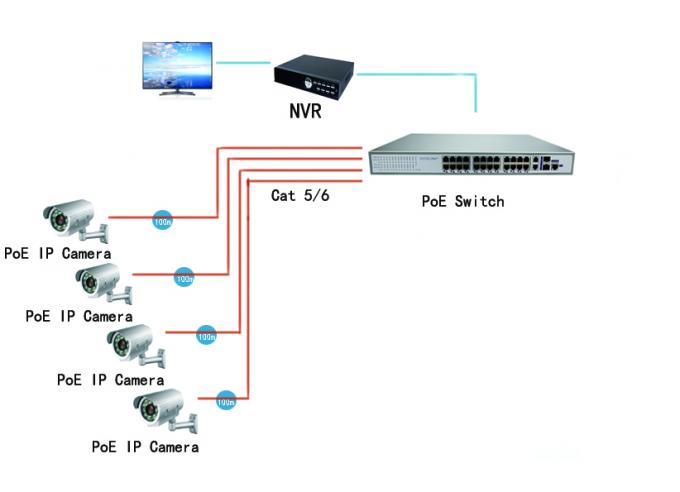

Connection diagram
Order information
| Part No | Description of product | Unit |
| ND-PSNG1124F-450 | ND-PSNG1124F-450 PoE Switch | pcs |
