| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSNG1108 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Total Power: | 52V1.25A 120W | Power Supply Type: | End-Span(1/2+,3/6-) |
|---|---|---|---|
| Port: | 8 Ports（ RJ45） | Working: | -40℃~75℃ |
| Size: | 188*95*26mm | Maximum Power: | 15.4 Watts |
10/100/1000M 4 Port and RJ45 ethernet PoE Switch for IP camera
Feature
Support IEEE802.3af/IEEE802.3af standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 15.4W
Port power is automatically assigned
Dynaic Power Allocation
Specification
● 8 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Built-in 7 PoE Ports (Port 1 ~ Port 7)
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af, PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V2.3A 120W

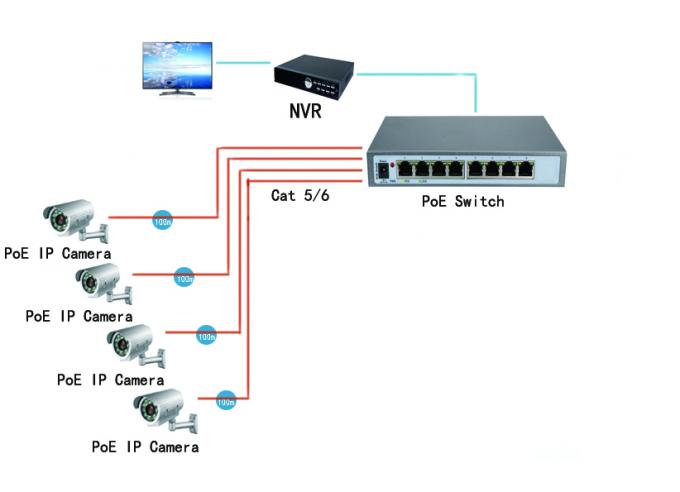

Connection diagram
Order information
| Part No | Description of product | Unit |
| ND-PSNG1108 | ND-PSNG1108 PoE Switch | pcs |
