Brand: | NEWBRIDGE | Rate: | 1.25G |
---|---|---|---|
Commercial: | -20 ~ 70 °C | Industrial: | -40 ~ 85 °C |
Power Supply: | 3.3V | Mode Type: | Singel Mode |

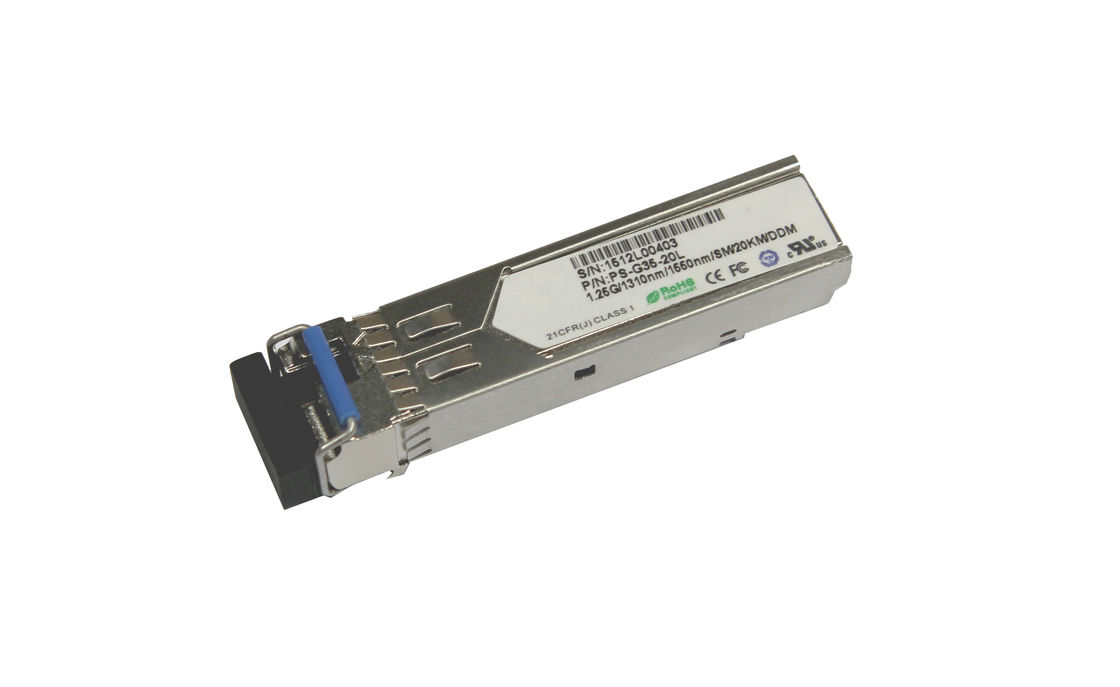

1.25G SFP Dual fiber transceiver module supported from 3km to 80km
Overview
Newbridge® The transceivers ND5420are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Feature
●Supports 1250Mb/s bit rates
●Simplex LC connector
●Hot pluggable
●1310nm DFB transmitter, PIN photo-detector
●Applicable for 20km SMF connection
●Digital Diagnostic Monitor Interface
●Low EMI and excellent ESD protection
●Compliant with SFP MSA and SFF-8472
●+3.3V single power supply
●Operating case temperature:
●Commercial:-20 to 70 °C
●Industrial:-40 to 85 °C

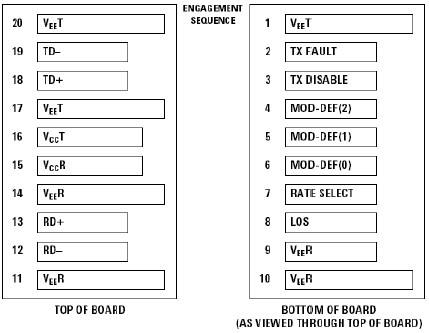

Application Diagram

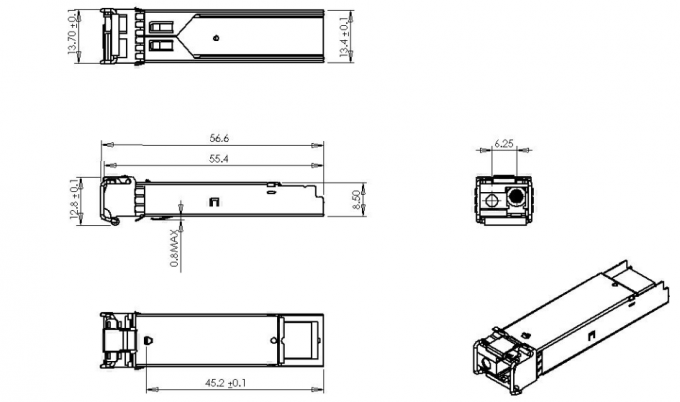

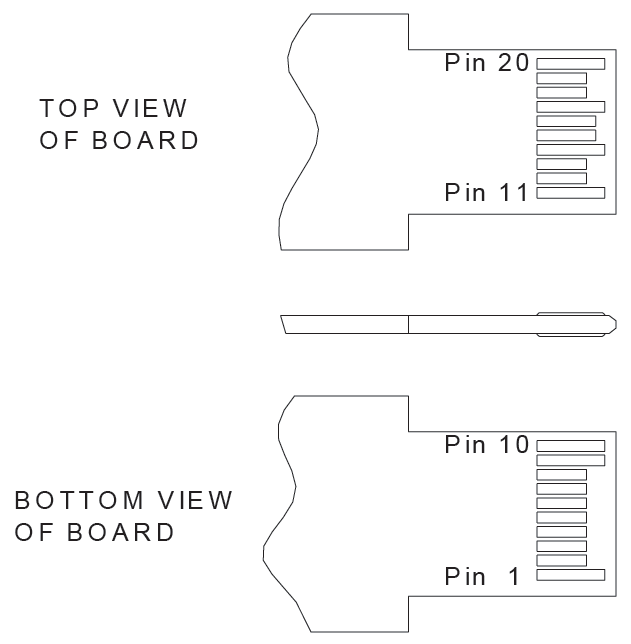

Dimensions
Specifications
Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
Transmitter | |||||||
Operating Wavelength | λ | 1270 | 1310 | 1360 | nm | ||
1530 | 1550 | 1570 | |||||
Ave. output power (Enabled) | PAVE | -8 | -3 | dBm | 1 | ||
Extinction Ratio | ER |
9 10 |
dB | 1 | |||
RMS spectral width | Δλ | 1 | nm | ||||
Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ps | 2 | |||
Output Optical Eye | Compliant with IEEE802.3 z (class 1 laser safety) | ||||||
Receiver | |||||||
Operating Wavelength | λ | 1530 | 1550 | 1570 | nm | ||
1270 | 1310 | 1360 | |||||
Receiver Sensitivity | PSEN1 | -23 | -22 | dBm | 3 | ||
Min. Overload | PMAX | -3 | dBm | 3 | |||
LOS Assert | Pa | -35 | dBm | ||||
LOS De-assert | Pd | -25 | dBm | ||||
LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB |
Order Information
Part No | Description of product | Unit |
ND5420-35 | SFP Bidi 1250Mbps ,Singlemode1310nm/1550nm 20Km -20~70℃, with DDM, | pcs |
ND 5420-35I | SFP Bidi 1250Mbps ,Singlemode1310nm/1550nm 20Km -40~85℃, with DDM | pcs |
ND 5420-53 | SFP Bidi 1250Mbps ,Singlemode1550nm/1310nm 20Km -20~70℃, with DDM, | pcs |
ND 5420-53I | SFP Bidi 1250Mbps ,Singlemode1550nm/1310nm 20Km -40~85℃, with DDM | pcs |
