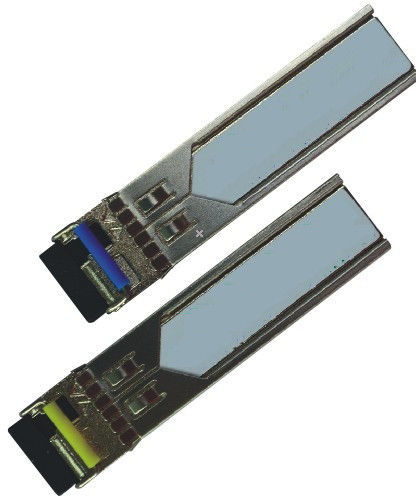

Dual Fiber SFP Module Transceiver Mini 1.25G 500m To 120km Simplex LC Connect

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-12GDF/120

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Wavelength:	1310nm,1550nm	Source:	VCSEL
Fiber Type:	Dual Fiber	Distance:	500m,2km,20km,40km,60km,80km,120km
Data Rate::	1.25G	Temperature:	0~70 °C, -40~85°C

1.25G SFP Dual fiber transceiver module supported from 500m to 120km

Overview

Newbridge® The transceivers ND5420are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Feature

●Supports 1250Mb/s bit rates

●Simplex LC connector

●Hot pluggable

●1310nm DFB transmitter, PIN photo-detector

●Applicable for 20km SMF connection

●Digital Diagnostic Monitor Interface

●Low EMI and excellent ESD protection

●Compliant with SFP MSA and SFF-8472

●+3.3V single power supply

●Operating case temperature:

●Commercial:-20 to 70 °C

●Industrial:-40 to 85 °C

Application Diagram

Dual Fiber SFP Module Transceiver Mini 1.25G 500m To 120km Simplex LC Connect

Dimensions

Dual Fiber SFP Module Transceiver Mini 1.25G 500m To 120km Simplex LC Connect

Specifications

Parameter	Symbol	Min.	Typ	Max.	Unit		Note
Transmitter
Operating Wavelength	λ	1270	1310	1360	nm
Operating Wavelength	λ	1530	1550	1570	nm
Ave. output power (Enabled)	PAVE	-8		-3	dBm		1
Extinction Ratio	ER	9 10			dB		1
RMS spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			0.26	ps		2
Output Optical Eye	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver
Operating Wavelength	λ	1530	1550	1570	nm
Operating Wavelength	λ	1270	1310	1360	nm
Receiver Sensitivity	PSEN1		-23	-22	dBm	3
Min. Overload	PMAX			-3	dBm	3
LOS Assert	Pa	-35			dBm
LOS De-assert	Pd			-25	dBm
LOS Hysteresis	Pd-Pa	0.5		5	dB

Order Information

Part No	Description of product	Unit
ND5420-35	SFP Bidi 1250Mbps ,Singlemode1310nm/1550nm 20Km -20~70℃, with DDM,	pcs
ND 5420-35I	SFP Bidi 1250Mbps ,Singlemode1310nm/1550nm 20Km -40~85℃, with DDM	pcs
ND 5420-53	SFP Bidi 1250Mbps ,Singlemode1550nm/1310nm 20Km -20~70℃, with DDM,	pcs
ND 5420-53I	SFP Bidi 1250Mbps ,Singlemode1550nm/1310nm 20Km -40~85℃, with DDM	pcs
