| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-X920SN-20A/B-4 |
| Minimum Order Quantity: | 1Pair |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 5000pcs per month |
| Ports: | 4 | SM: | Single Mode |
|---|---|---|---|
| Fiber: | Single Fiber | Power Supply: | DC/5V,AC/100-240V |
| Certification: | CE, FCC |

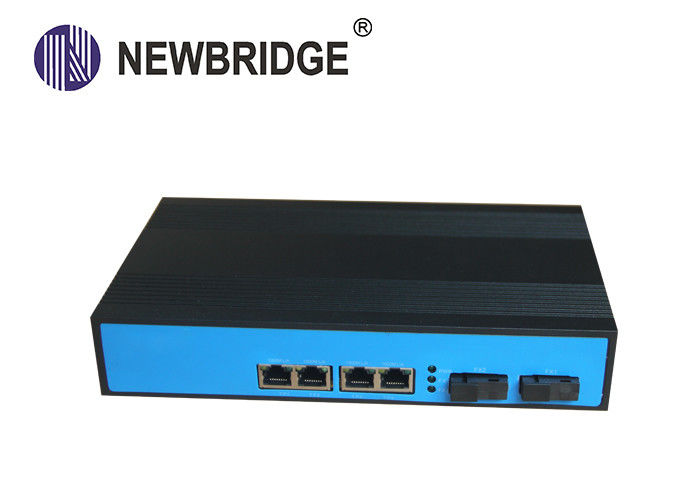

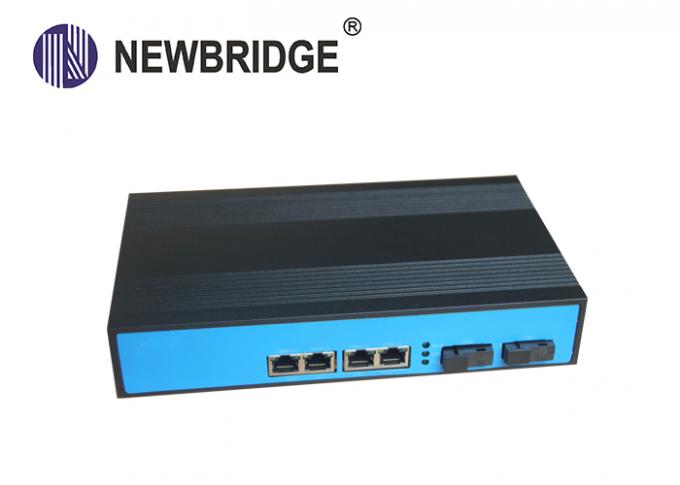

Single fiber 2 fiber 10 100 1000M industrial fiber ethernet switch 4 RJ45 media converter
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, or 4port fiber Switch ,is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics
Technical Parameter
| Product Name | 4 Port 10/100/1000 Base Fiber Industrial Ethernet Switch |
| Interface | 4 x 10/1000Base-T RJ45 port + 2x 1000Mbps SC Fiber |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link; Link/Act |
