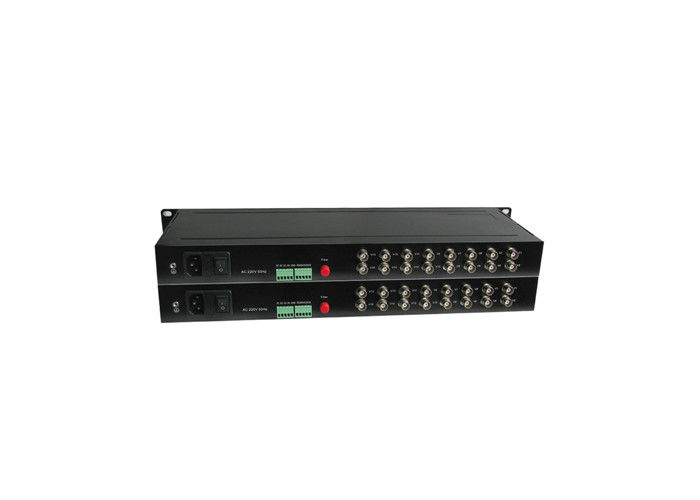

SM Port 40km 10 100 1000M Media Converter 16 Channel Video 1 Channel Return RS232 Data

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-VT/R 16VZ1DF-LS40

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

SNR:	≧70 DB	Data Protocol:	RS485,RS232
Input Channel:	16	Storage Temperature:	- 40° C To + 75°C
Bandwidth:	5-8Mhz	Size:	482mm155mm45mm

16 Channel Video + 1 Channel return RS485/RS232 data SM Port 40km,1000M Media Converter

Feature

◆ 16 Channel digital video and data transfer over single fiber

◆ 8 Bit uncompressed video transmission

◆ NTSC,PAL,SECAM CCTV

◆ Support RS485,RS232 data protocol

◆ No EMI, RFI, Cross Talk, and Ground Loop

◆ Surface Mount Technology

◆ Standalone or rack mount

Specification

◆ CCTV system
◆ Intelligent transportation system(ITS)
◆ TV medical treatment

◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ Tele-Communication System
◆ Military Tele-Com projects

Specification:

>> Video

Input Channel: 16

Input: 1V p-p (75 ohm)

Connecter: BNC

SNR: ≧70 dB

Bandwidth:5MHz-8MHz

Distortion:DG<1%,DP<0.7°

>> Data

Interface: RS485 or RS232

Connector: Industry Terminal Block

>> Optical

Fiber required: 1

Connector: SC/FC to optional

Wavelength: 850 nm/ 1300nm for Multimode

1310nm/1550nm for Single mode

Bit Rate Error: 10^-9

Power Supply: AC 100—260V 50—60Hz, DC 12V, 5V 1—2A to your optional

Operating Temperature: 0° C to + 50°C

Storage Temperature: - 40° C to + 75°C

Humidity: 5%-95% Non-Condensing

Size: 482mm(L) x 155mm(W) x 45mm(H)

Order info

Part No	Description of product	Distance
ND-VT/R 16VZ1DF-LS40	16 Channel Video + 1 Channel return data, SM	0-40KM

Note:
1. Distance is limited to fiber loss, splices, chromatic dispersion and bandwidth
2. Range estimates are based on 1.0dB/km @ 1310nm on MM fiber, 0.35dB/km @1310nm and
0.25dB/km @1550nm on SM fiber, and include a 3dB safety factor
3. Range estimates for multimode are based on 500MHz/km fiber
