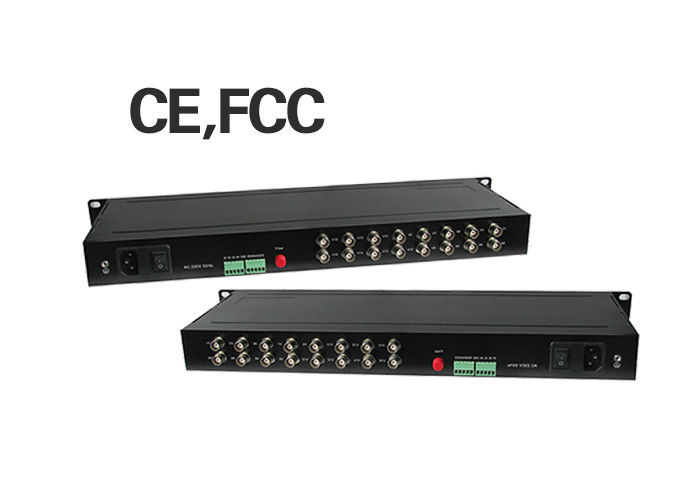

FC Port 60km Fiber Media Converter 16 Channel Video 1 Channel RS485 Return Data

FC Port 60km Fiber Media Converter 16 Channel Video 1 Channel RS485 Return Data

FC Port 60km Fiber Media Converter 16 Channel Video 1 Channel RS485 Return Data

Product Details:

Place of Origin: SHENZHEN,CHINA
Certification: FCC,CE
Model Number: ND-VT/R 16VZ1DF-LS60

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Connector: SC/FC Interface: RS485/RS232
Input Channel: 16 Power Supply: DC 24V 2A
Operating Temperature: 0° C To + 50°C Size: 482mm*155mm*45mm

16 Channel Video + 1 Channel RS485/RS232 return data SC/FC Port 60km,10/100/1000M Media Converter

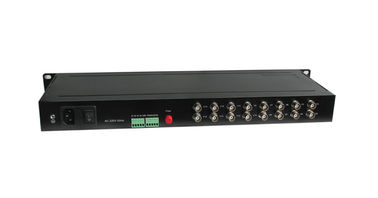

◆ 16 Channel digital video and data transfer over single fiber
◆ 8 Bit uncompressed video transmission
◆ Support RS485,RS232 data protocol
◆ No EMI, RFI, Cross Talk, and Ground Loop
◆ Surface Mount Technology
◆ Standalone or rack mount




◆ CCTV system
◆ Intelligent transportation system(ITS)
◆ TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ Tele-Communication System
◆ Military Tele-Com projects
>> Video
Input Channel: 16
Input: 1V p-p (75 ohm)
Connecter: BNC
SNR: ≧70 dB
>> Data
Interface: RS485 or RS232
Connector: Industry Terminal Block
>> Optical
Fiber required: 1
Connector: SC/FC to optional
850 nm/ 1300nm for Multimode
1310nm/1550nm for Single mode
Bit Rate Error: 10-9
Power Supply: AC 100—260V 50—60Hz, DC 12V, 5V 1—2A to your optional
Operating Temperature: 0° C to + 50°C
Storage Temperature: - 40° C to + 75°C
Humidity: 5%-95% Non-Condensing
Size: 482mm(L) x 155mm(W) x 45mm(H)


Order info

Part No Description of product Distance
ND-VT/R 16VZ1DF-LS60 16 Channel Video + 1 Channel return data, SM 0-60KM





1. Distance is limited to fiber loss, splices, chromatic dispersion and bandwidth
2. Range estimates are based on 1.0dB/km @ 1310nm on MM fiber, 0.35dB/km @1310nm and
0.25dB/km @1550nm on SM fiber, and include a 3dB safety factor
3. Range estimates for multimode are based on 500MHz/km fiber
