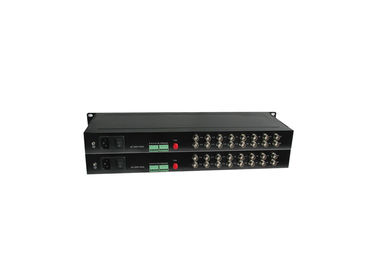

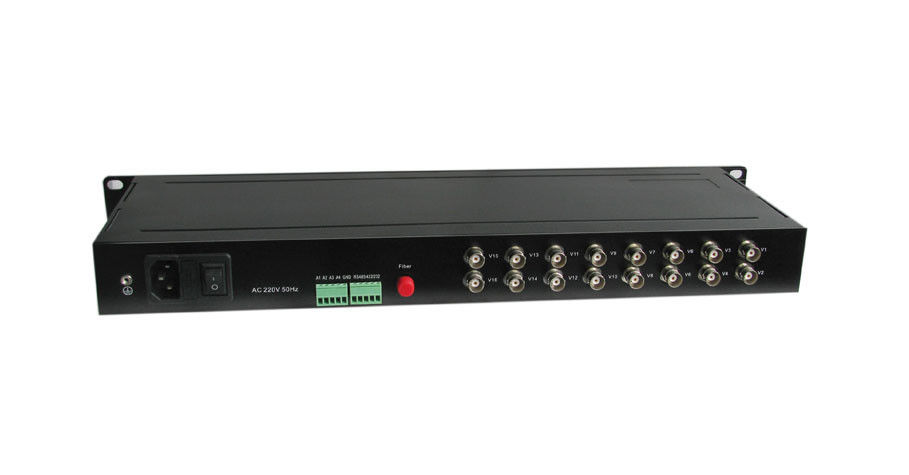

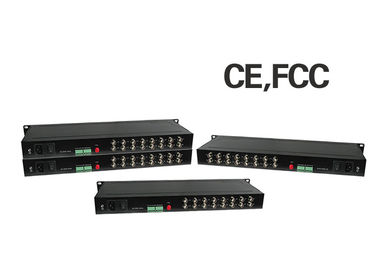

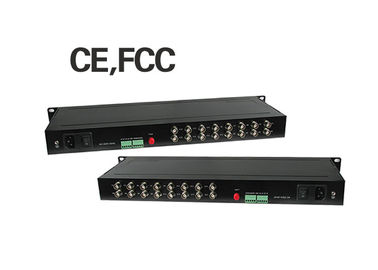

10 100 1000M Optical Media Converter 16 Channel Digital Video Data Transfer Over Single Fiber

10 100 1000M Optical Media Converter 16 Channel Digital Video Data Transfer Over Single Fiber

10 100 1000M Optical Media Converter 16 Channel Digital Video Data Transfer Over Single Fiber

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-VT/R 16VZ1DF-LM

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
SNR: ≧70 DB Connector: SC/FC
Operating Temperature: 0° C To + 50°C Storage Temperature: - 40° C To + 75°C
Humidity: 5%-95% Size: 482mm*155mm*45mm

16 Channel digital video and data transfer over single fiber,10 100 1000M Media Converter





Feature

◆ 16 Channel digital video and data transfer over single fiber
◆ 8 Bit uncompressed video transmission
◆ NTSC,PAL,SECAM CCTV
◆ Support RS485,RS232 data protocol
◆ No EMI, RFI, Cross Talk, and Ground Loop
◆ Surface Mount Technology
◆ Standalone or rack mount





Specification

◆ CCTV system
◆ Intelligent transportation system(ITS)
◆ TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ Tele-Communication System
◆ Military Tele-Com projects

Specification:
>> Video
Input Channel: 16
Input: 1V p-p (75 ohm)
Connecter: BNC
SNR: ≧70 dB
Bandwidth:5MHz-8MHz
Distortion:DG<1%,DP<0.7°

>> Data
Interface: RS485 or RS232
Connector: Industry Terminal Block

>> Optical
Fiber required: 1
Connector: SC/FC to optional
Wavelength: 850 nm/ 1300nm for Multimode
1310nm/1550nm for Single mode

Bit Rate Error: 10-9
Power Supply: AC 100—260V 50—60Hz, DC 12V, 5V 1—2A to your optional
Operating Temperature: 0° C to + 50°C
Storage Temperature: - 40° C to + 75°C
Humidity: 5%-95% Non-Condensing
Size: 482mm(L) x 155mm(W) x 45mm(H)




Order info

Part No Description of product Distance
ND-VT/R 16VZ1DF-LM 16 Channel Video + 1 Channel return data, MM 0-2KM









Note:
1. Distance is limited to fiber loss, splices, chromatic dispersion and bandwidth
2. Range estimates are based on 1.0dB/km @ 1310nm on MM fiber, 0.35dB/km @1310nm and
0.25dB/km @1550nm on SM fiber, and include a 3dB safety factor
3. Range estimates for multimode are based on 500MHz/km fiber
