| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-920SW-S20-4 |
| Minimum Order Quantity: | 1Pair |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Fiber Connector: | SC,FC,ST | Dimensions: | 130mm X 86 Mm X 26mm |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Buffer Size: | 1M |
| MTBF: | 50,000 Hours | Input Voltage: | DC 5V 1A |
| Operating Temperature: | 0°C~50°C |

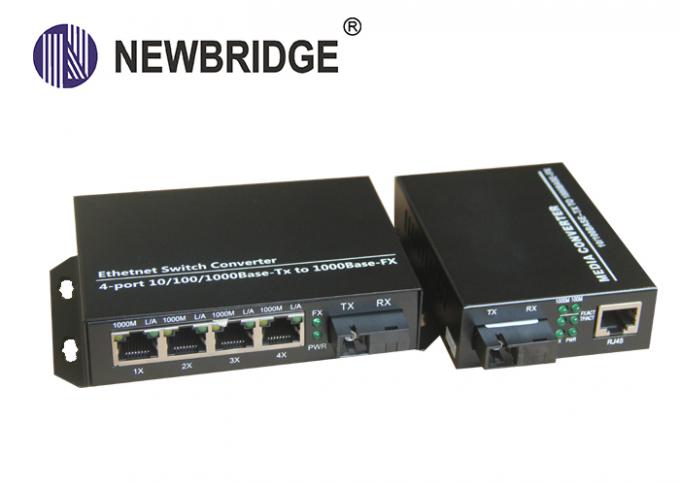

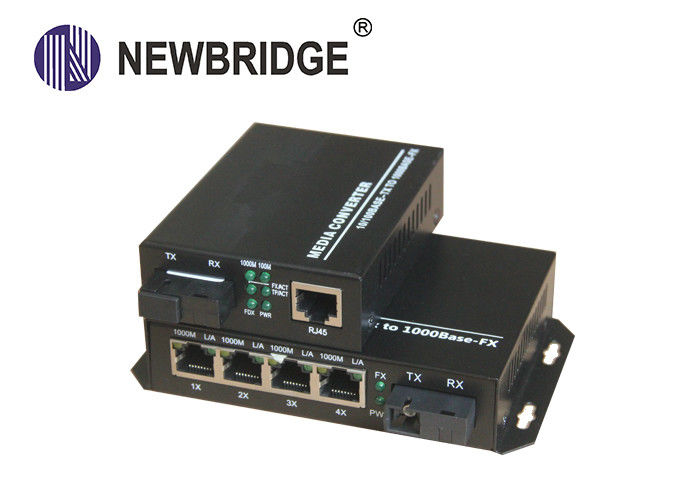

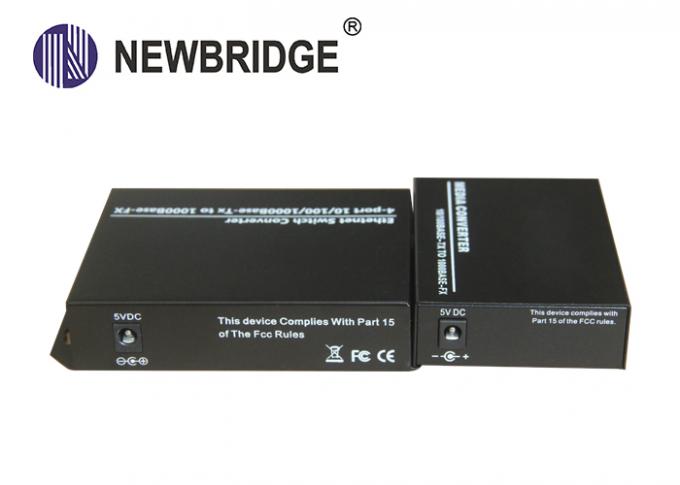

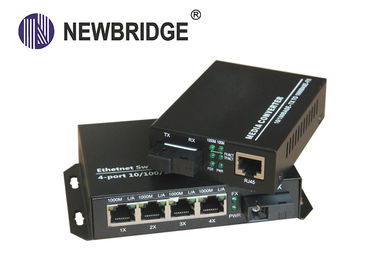

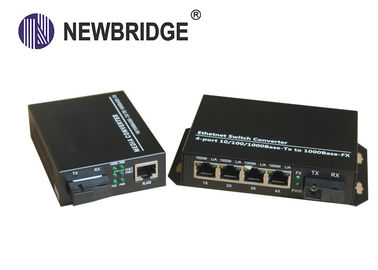

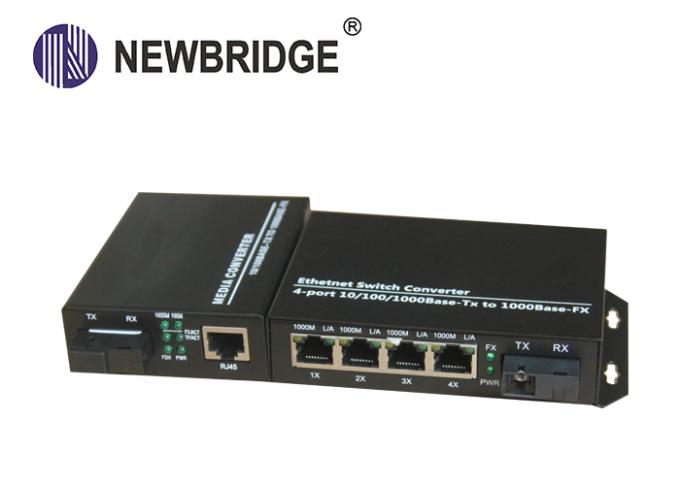

10 100 1000M Gigabit Ethernet Media Converter SC Standard 4 port Switch
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics.
Feature
1. Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
2. 1000BASE-FX FIBER to 10/100/1000BASE-T COPPER Ethernet conversion
3. 1600byte super data packet transmission
4. Full duplex-flow control, Half duplex-back pressure
5. Full- positioned LEDs to indicate power and network status
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100/1000 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 130mm X 86 mm X 26mm |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% non-condescending |
order info
| Part No | Description of product | Unit |
| ND-TZ915SW-20A | 1*10M/100/1000M bps fiber connector+4*10/100M RJ45 port, Single mode,1550nm,0-20KM,SC | |
| ND-X910SW-20B | 1*10M/100/1000M bps fiber connector+1*10/100M RJ45 port, Single mode,1310nm,0-20KM,SC |
