| Model: | ND6110G | SDI Signal Range: | 0.8V P-p |
|---|---|---|---|
| SDI Impedance: | 75 Ohms | Power Supply: | 12V DC ,1A W/ Locking Power Connector |
| Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 112x 117x 25 Mm / 4.40x 4.46 X 0.98 Inches |
| Weight: | 280g |

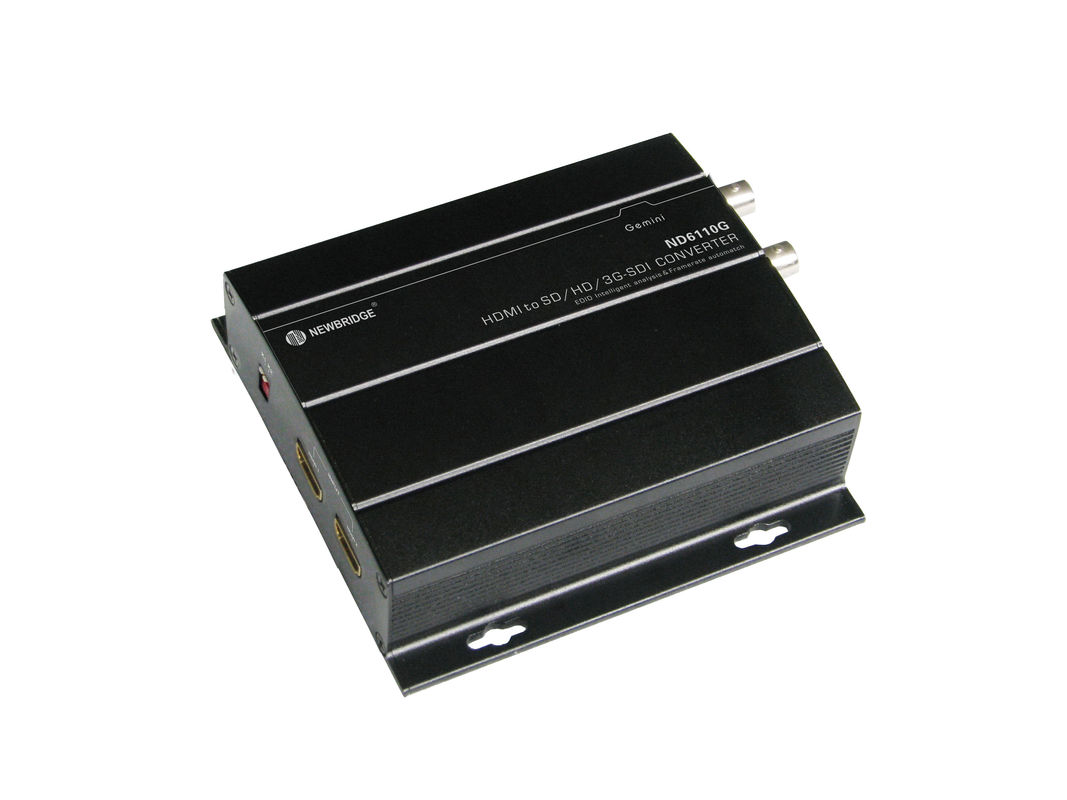

User Friendly HDMI To 3G SDI Fiber Transceiver With 2 * HDMI Port 1080P
1. Overview
Newbridge® NB6110B HDMI to SD/HD/3G-SDI Converter is mainly used in converting one channel High Definition Multimedia Interface (HDMI) signal to serial Digital Interface (HD-SDI) signal .The device integrates SDI transmitter and HDMI demodulator ,and simultaneously separate and convert HDMI audio signal, then embed it to HD-SDI signal to achieve the sound and image synchronization transmission
2. Features
|
ND6110B |
l Support series connection function in Transmitter and Receiver and easy to build a network system by installer. l Switch easily between two HDMI sources by Remote control. l HDMI signal convert SDI signal to achieve long distance transmission. l Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable. l Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz. l Support digital video formats in Deep Color Mode at up to 12bits/color. l Support full HDMI audio and video. l Normal mode and Turbo mode switch l Power supply and SDI signal format indicator |
3．Application Diagram
4. Dimensions
5. Specifications
| Model | ND6110B |
| Input Interface | 2x HDMI |
| Frequency Bandwidth | 225MHz/ up to standard with HDCP :HDMI 1.3 |
|
Support Input Format |
480i,576i,720p@50/60,1080i@50/60,1080p@24/25/30, 1080p50/60 |
| SDI Out Interface | 2x BNC(SD-SDI/HD-SDI/3G-SDI) |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| SDI Coupling Type | AC Coupling |
| SDI signal jitter(typical value) | SD-SDI≤0.1 UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI |
|
Max. Output Coax Length |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft |
| Power Supply | 12V DC ,1A w/ Locking Power Connector |
| Power Consumption | 3~6 Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 112x 117x 25 mm / 4.40x 4.46 x 0.98 inches |
| Weight | 280g |
6. Order Information
| Part No | Description of product | Unit |
| ND6110B | HDMI to SD/HD/3G-SDI Converter | pcs |
