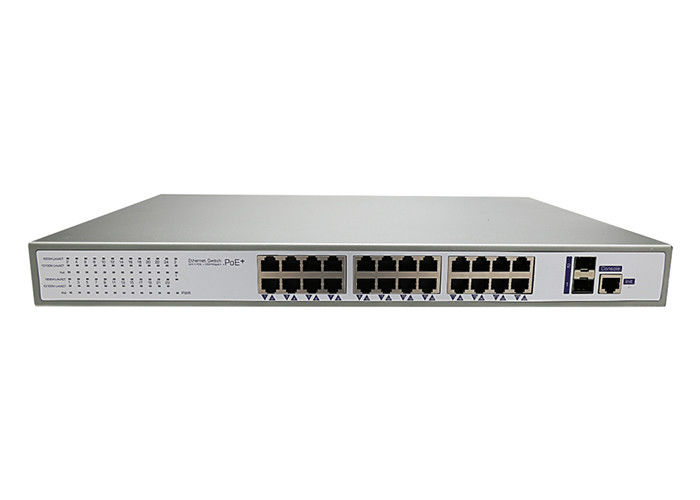

24 Port Gigabit Switch Managed 30W Watts Power Each PoE Port Hot Plug And Play

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-PSMG1124F-SM-AT

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

PoE Power Supply Type:	End-Span(1/2+,3/6-)	Total Power:	52V 15.5A 800W
Standard Compliant:	IEEE 802.3af,IEEE 802.3at	Port:	24
Maximum Power:	30W	Communication Mode::	Full-Duplex , Half-Duplex

Ethernet Switch - 24Ports - Manageable - 24 x POE Managed Poe Switch

Non management*Compatible IEEE802 3af at,IEEE802 3az function*24 X 10 100 1000Mbps RJ45 port*24 X PSE port, Output power up

Feature

Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation

Specificaition

● 24 x 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port: 2 Gigabit Fiber Ports,Data transmission: depends on the optical module
● Maximum 30 watts power for each PoE port
● IEEE 802.3af,IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V15.5A 800W,build-in power supply

Connection Diagram
