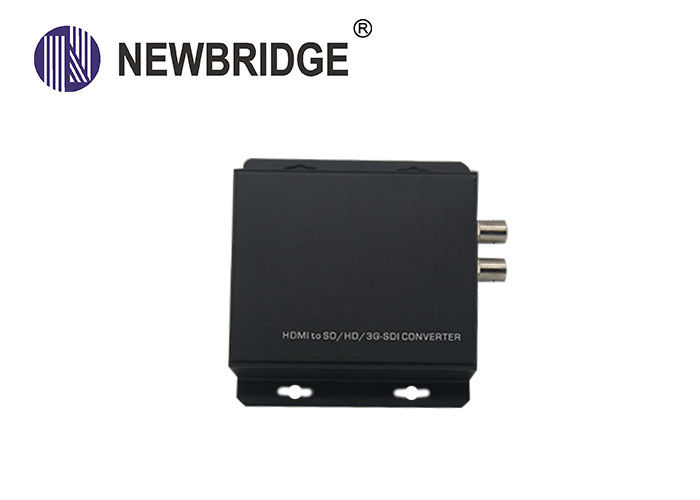

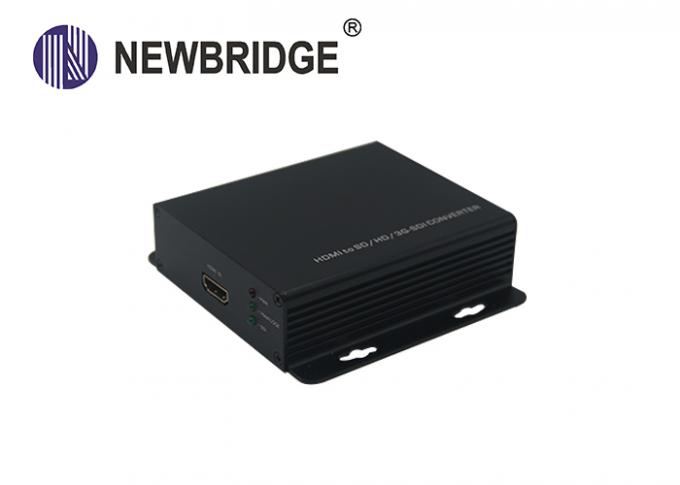

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
    • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI
  • High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND-6110G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    SDI Out Interface: 2x BNC(SD-SDI/HD-SDI/3G-SDI) Power Supply: 12V DC
    Power Consumption: 3~6 Watts Operating Temperature: -10°C ~ 60°C / 14°F ~ 140°F
    Storage Temperature: -30°C ~ 70°C / -22°F ~158°F Manual Control Output Format: 1080p,1080i,720p

    High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI



    Overview

    Newbridge® NB6110G HDMI to SD/HD/3G-SDI Converter is mainly used in converting one channel high-definition multimedia interface (HDMI) signal to high-definition serial digital component interface (HD-SDI) signal .The device integrates SDI transmitter and HDMI demodulator ,and after separate and convert HDMI audio signal, then embed to HD-SDI signal, and achieve the sound and image synchronization transmission.The resolutions of HDMI or SDI would be forced by the console,Our products would offer multi-resolution to choice(1080p60/50/30/25 1080i60/50 720p60/50/30).



    Features

    High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI

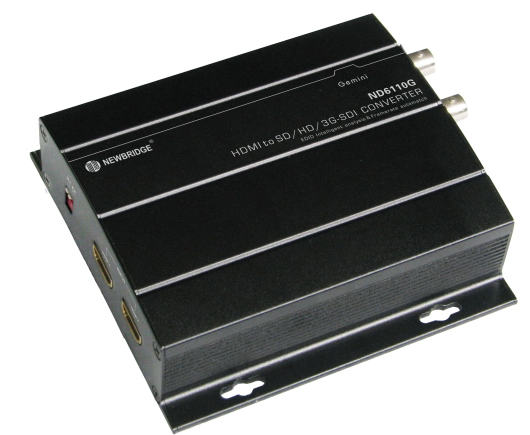

    ND6110G

    • The resolutions of HDMI or SDI would be forced by the console

    • One piece of 75Ω Coax. cable can substitute HDMI cable to achieve long distance transmission.

    • Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.

    • Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz.

    • Support digital video formats in Deep Color Mode at up to 12bits/color.

    • Support full HDMI audio and video.

    • Support external audio embed into SDI signal synchronously

    • Power supply and SDI signal format indicator

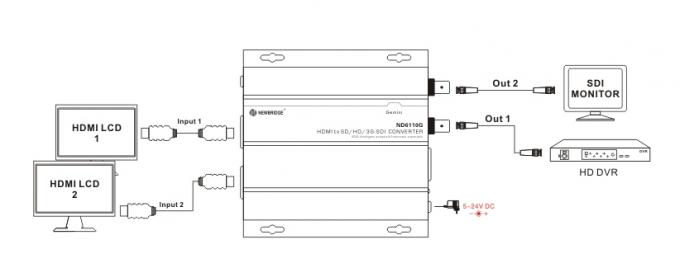

    Application Diagram

    High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI



    4. Dimensions

    High quality HDMI to SD/HD/3G-SDI Converter Mini HDMI Converter Support SD-SDI/HD-SDI/3G-SDI



    Specifications

    Model

    ND-6110G

    InputInterface

    2xHDMI

    Audio Input Interface

    1xAudio

    FrequencyBandwidth

    225MHz/ up to standard with HDCP :HDMI 1.3



    SupportInputFormat

    480i,576i,720p@50/60,1080i@50/60,1080p@24/25/30,

    1080p50/60

    SDIOutInterface

    2x BNC(SD-SDI/HD-SDI/3G-SDI)

    SDI SignalRange

    0.8Vp-p

    SDI Impedance

    75ohms

    SDI CouplingType

    ACCoupling

    SDI signal jitter(typical value)

    SD-SDI≤0.1 UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI

    Manual Control Output Format

    1080p60/50/30/25 1080i60/50 720p60/50/30



    Max.OutputCoaxLength

    Belden1694A

    SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ;3G-SDI140m/ 450ft

    PowerSupply

    12VDC ,1Aw/LockingPower Connector

    PowerConsumption

    3~6 Watts

    OperatingTemperature

    -10°C~60°C/14°F~140°F

    StorageTemperature

    -30°C~70°C/-22°F~158°F

    RelativeHumidity

    20~90%RH(Non-condensation)

    Dimension

    158×120×36mm/6.22×4.72×1.42in

    Weight

    300g































    Part No

    Description of product

    Unit

    ND-6110G

    HDMI to SD/HD/3G-SDI Converter

    pcs
