Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND1P402F |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 3000pcs per month |
PoE Standard: | IEEE 802.3af/at | PoE Power: | Af=15.4W,at=30W,single Port Output Power 30W |
---|---|---|---|
Switching Capacity: | 1.2Gbps | MAC Table: | 1K |
Relative Humidity: | 20~95% | Consumption: | 65W(52V 1.25A) |
Ethernet Port: | Uplink Port : 10/100Mbps |

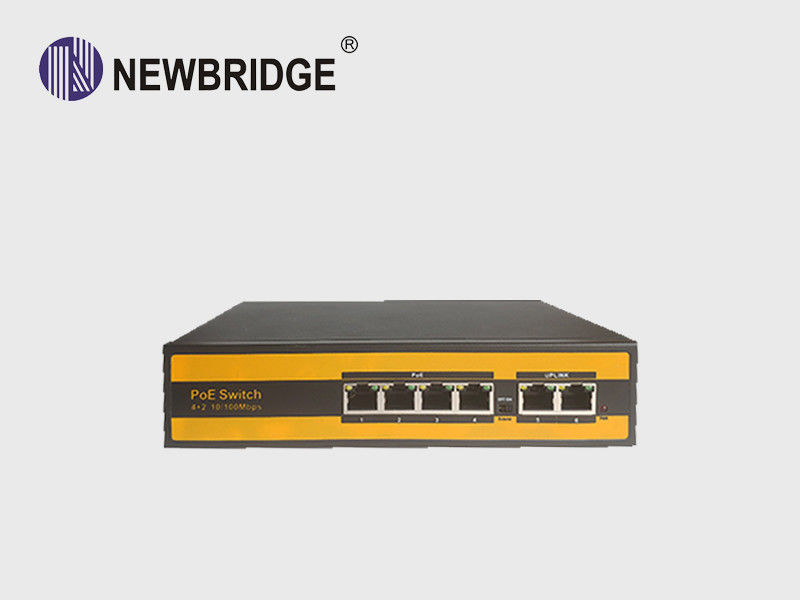

fast Power over ethernet switch with 4 port for IP camera IEEE 802.3af/at
1. 4*10/100Mbps PoE ports, 2*10/100Mbps uplink port
2. Support IEEE802.3af/at
3. Support restrain network storm, VLAN function
4. Support Max Transmission distance up to 250m with PoE Power
5. All port supported by MDI/MDIX auto flip and self-negotiation
6. Built-in power supply;
7. Maximum power of single PoE port: 30 W;
8. Maximum PoE power: 7 5 W;
9. Adopts store-and-forward architecture;
10. Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
11. Support lightning protection 6000V
2.Feature
|
|
3.Application Diagram
4. Dimensions
5. Specifications
Power | Power Adapter Voltage | AC 110V-240V | |
Consumption | 75W(52V 1.44A) | ||
Network Connector |
Network Port | PoE Ethernet Port | 1~4 Port : 10/100Mbps |
Ethernet port | Uplink Port : 10/100Mbps | ||
Transmission Distance |
1~4 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
Uplink Port : 0 ~ 100m | |||
Transmission Medium | Cat5/5e/6 standard network cable | ||
Network Switch |
Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
Switching Capacity | 1.2Gbps | ||
Packet Buffer Memory | 1Mbits | ||
Throughput | 0.9Mbps | ||
MAC Table | 1K | ||
Packet Forwarding rate |
10Mbps: 14880pps/port 100Mbps: 148800pps/port | ||
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
PoE Power Supply | 12 45 + ,36 78- , 8 core power supply | ||
PoE Power | af=15.4W,at=30W for each port | ||
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
Environmental |
Working temperature | 0℃~55℃ | |
Relative Humidity | 20~95% | ||
Storage temperature | -20℃~70℃ | ||
Mechanical |
Dimension (L×W×H) | 202mm*140mm*45mm | |
Color | Black | ||
Weight | 0.95kg |
6. Order Information
Part No | Description of product | Unit |
ND1P402F | 6 ports switch with 4*10/100M bit PoE ports,2*10/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) | pc |
