2 Port 100M Fiber 10/100M Industrial Network Switch Fiber Optic AC 110V-240V

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND1P402F

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Power Adapter Voltage:	AC 110V-240V	POE Ethernet Port:	1～4 Port : 10/100Mbps
Transmission Medium:	Cat5/5e/6 Standard Network Cable	Working Temperature:	0℃~55℃
Dimension (L×W×H):	202mm140mm45mm	Weight:	605g

OEM 4 Port POE + 2 Port 100M Fiber 10/100M POE Ethernet Fiber Optic Switch

1. Overview

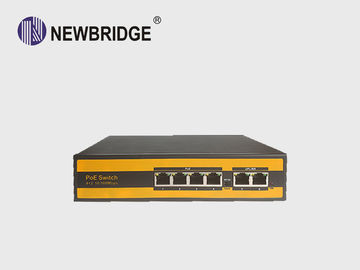

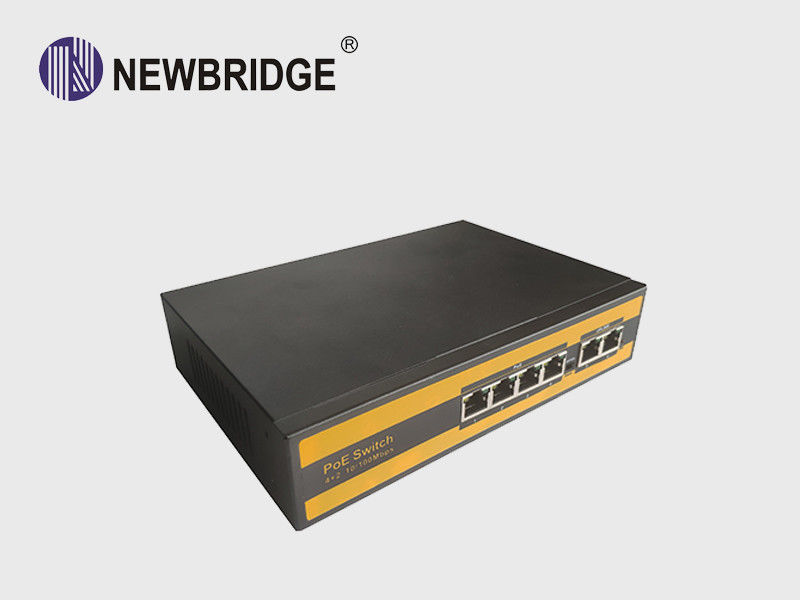

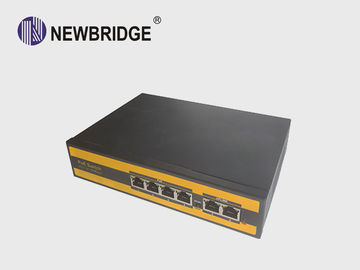

2 Port 100M Fiber 10/100M Industrial Network Switch Fiber Optic AC 110V-240V Newbridge® The switch is a compact 4+2 port PoE switch,with 4 10/100 Mbps PoE Ports, and 2 10/100Mbps Uplink Port,The 4 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD), such as VOIP phones,IP Cameras,all PoE ports support the IEE802.3af/at standard,with a maximum output of 30 W each port

2.Feature

2 Port 100M Fiber 10/100M Industrial Network Switch Fiber Optic AC 110V-240V

l 4*10/100Mbps PoE ports, 2*10/100Mbps uplink port
l Support IEEE802.3af/at
l Support restrain network storm, VLAN function
l Support Max Transmission distance up to 250m with PoE Power
l All port supported by MDI/MDIX auto flip and self-negotiation
l Built-in power supply;
l Maximum power of single PoE port: 30 W;
l Maximum PoE power: 7 5 W;
l Adopts store-and-forward architecture;
l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
Support lightning protection 6000V

3．Application Diagram

2 Port 100M Fiber 10/100M Industrial Network Switch Fiber Optic AC 110V-240V

4. Dimensions

2 Port 100M Fiber 10/100M Industrial Network Switch Fiber Optic AC 110V-240V

5. Specifications

Power	Power Adapter Voltage		AC 110V-240V
	Consumption		75W(52V 1.44A)
Network Connector	Network Port	PoE Ethernet Port	1～4 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100Mbps
	Transmission Distance		1～4 Port : 100Mbps:0~100m; 10Mbps: 0~250m;
			Uplink Port : 0 ~ 100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab
	Switching Capacity		1.2Gbps
	Packet Buffer Memory		1Mbits
	Throughput		0.9Mbps
	MAC Table		1K
	Packet Forwarding rate		10Mbps: 14880pps/port 100Mbps: 148800pps/port
Power Over Ethernet	PoE Standard		IEEE 802.3af/at
	PoE Power Supply		12 45 + ,36 78- , 8 core power supply
	PoE Power		af=15.4W,at=30W for each port
RJ45 port	Port Function		Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	LED Indicator		LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		202mm140mm45mm
	Color		Black
	Weight		0.95kg

6. Order Information

Part No	Description of product	Unit
ND1P402F	6 ports switch with 410/100M bit PoE ports,210/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)	pc
