450W PoE Ethernet Switch 10/100Mbps AC 110V-240V 24 4 Port For IP Camera

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND1P2404FGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Power Adapter Voltage:	AC 110V-240V	POE Ethernet Port:	1～24 Port : 10/100Mbps
Transmission Medium:	Cat5/5e/6 Standard Network Cable	Working Temperature:	0℃~55℃
PoE Power:	Af=15.4W (every Port)	Weight:	1647g

10/100Mbps 24 +4Port 450W PoE Ethernet Switch for IP camera

1. Overview

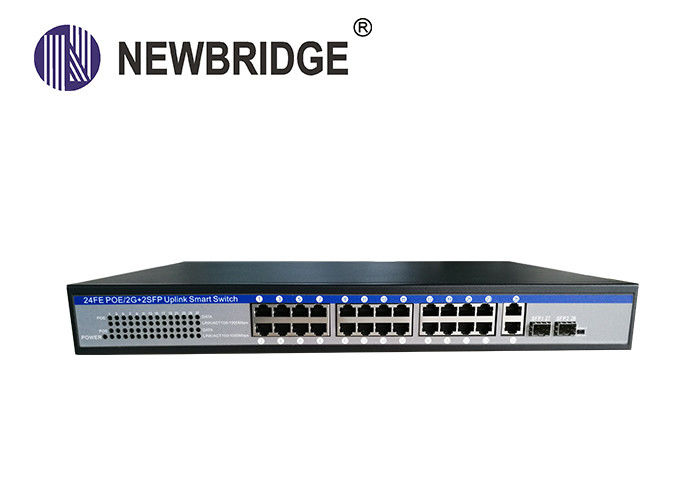

450W PoE Ethernet Switch 10/100Mbps AC 110V-240V 24 4 Port For IP Camera Newbridge® The switch is a compact 24+4 port PoE Switch,With 24*10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 2*10/100/1000Mbps SFP Port(combo),The 24*PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.

2.Feature

450W PoE Ethernet Switch 10/100Mbps AC 110V-240V 24 4 Port For IP Camera

24x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x 1000Mbps uplink SFP Ports(combo)
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters
Supports port auto-ﬂip (Auto MDI/ MDIX);
Each of 16 ports all support IEEE802.3af;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 450W;
Adopts store-and-forward architecture
Built-in 1U rack power supply series, easy installation.

3．Application Diagram

450W PoE Ethernet Switch 10/100Mbps AC 110V-240V 24 4 Port For IP Camera

Dimensions

450W PoE Ethernet Switch 10/100Mbps AC 110V-240V 24 4 Port For IP Camera

5. Specifications

Item			Description
Power	Power Adapter Voltage		AC 110V-240V
	Consumption		450W
Network Connector	Network Port	POE Ethernet Port	1～24 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
		SFP Port	SFP Port : 1000Mbps
	Transmission Distance		1～24 Port : 100Mbps:0~100m; 10Mbps: 0~250m;
			Uplink Port : 100m
			SFP: depends on the optical module(Combo)
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D
	Switching Capacity		12.8Gbps
	Packet Forwarding		9.5232Mpps
	MAC Table		4k
Power Over Ethernet	PoE Standard		IEEE 802.3af
	PoE Power Supply		End-Span(1/2+;3/6-)
	PoE Power		af=15.4W(every port)
LED Status Indicator	PoE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work;
			POE: 24 yellow lights indicate that the PoE is power on;
			Ethernet: 26 green lights indicate that the Ethernet Link and Act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		440mm285mm55mm
	Color		Silver-Gray
	Weight		3957g
Stability	MTBF		>30000h

6. Order Information

Part No	Description of product	Unit
ND1P2404FGX	28 ports switch with 2410/100M bit PoE ports,210/100/1000M Uplink Port and 2*SFP combo,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)	pc
