8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port

8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port

    • 8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port
    • 8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port
    • 8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port
    • 8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port
  • 8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND1P803FGX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Power Adapter Voltage: AC 110V-240V POE Ethernet Port: 1~8 Port : 10/100Mbps
    Transmission Medium: Cat5/5e/6 Standard Network Cable Working Temperature: 0℃~55℃
    PoE Power: Af=15.4W (every Port) Weight: 723g

    POE Output 8+2 Gigabit Port Ethernet Switch with 1 SFP port



    1. Overview

    8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP PortNewbridge® The switch is a compact 8+3 port PoE Switch,With 8*10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 1*10/100/1000Mbps SFP Port(combo),The 8*PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.

    2.Feature

    8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port



    l 8x 10/100Mbps auto-sensing RJ45 ports,8x 10/100Mbps PoE ports, 2*10/100/1000M uplink port,1 x SFP port(combo)

    l Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters

    l Supports port auto-flip (Auto MDI/ MDIX);

    l Built-in power supply;

    l Maximum power of single PoE port: 15.4W;

    l Maximum PoE power: 120W;

    l Adopts store-and-forward architecture;

    l IEEE 802.3af/at power on up to 8 ports

    l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall







    3.Application Diagram



    8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port

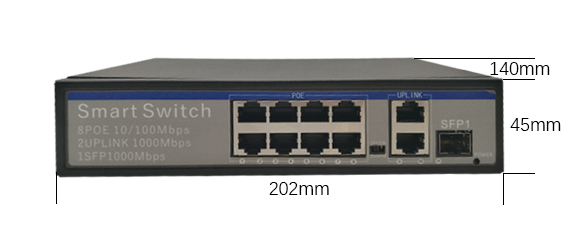

    • Dimensions



    8 2 Gigabit Port PoE Ethernet Switch Cat5/5e/6 Standard Network Cable With 1 SFP Port





    5. Specifications

    Item Description
    Power Power Adapter Voltage AC 110V-240V
    Consumption 120W







    Network Connector



    Network Port

    POE Ethernet Port 1~8 Port : 10/100Mbps
    Ethernet port Uplink Port : 10/100/1000Mbps



    SFP Port



    SFP Port: 10/100/1000Mbps



    Transmission Distance

    1~8 Port : 100Mbps:0~100m;

    10Mbps: 0~250m;

    Uplink Port : 0 ~ 100m



    SFP: depends on the optical module(Combo)

    Transmission Medium Cat5/5e/6 standard network cable





    Network Switch

    Network Standard

    IEEE802.3/802.3u,

    IEEE802.3x,IEEE802.1D

    Switching Capacity 4.8G
    Packet Forwarding 5.65Mpps
    MAC Table 2K



    Power Over Ethernet

    PoE Standard IEEE 802.3af
    PoE Power Supply End-Span(1/2+;3/6-)
    PoE Power af=15.4W (every port)





    LED Status Indicator



    PoE Ethernet

    LED Indicator

    Power: 1 red light indicates that the power normal work;
    POE: 8 yellow lights indicate that the POE is power on;
    Ethernet: 11 green lights indicate that the Ethernet Link and Act;



    Environmental

    Working temperature 0℃~55℃
    Relative Humidity 20~95%
    Storage temperature -20℃~70℃



    Mechanical

    Dimension (L×W×H) 202mm*140mm*45mm
    Color Black
    Weight 723g
    Stability MTBF >30000h



    6. Order Information

    Part No Description of product Unit
    ND1P803FGX 11 ports switch with 8*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
