    Model: ND1102BD Power Supply: 5V-24V DC
    HD/SD-SDI Detection: Auto Audio Support: Yes
    Input: 1*BNC (SDI) Output: 2*BNC (SDI)

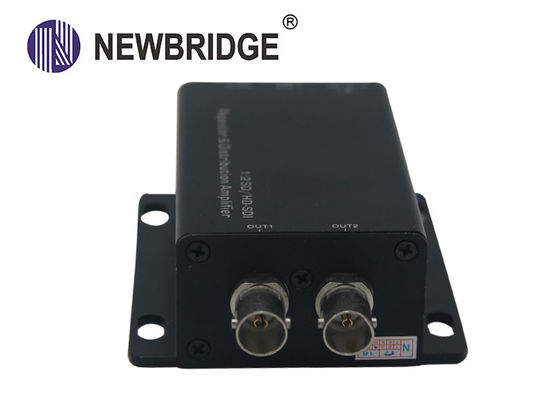

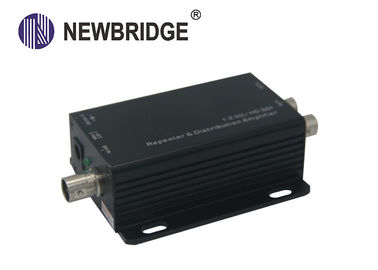

    HD SDI Signal Repeater 1 To 2 Repeater With BNC Connector



    1. Overview

    ND1102BD SD/HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.



    2. Features

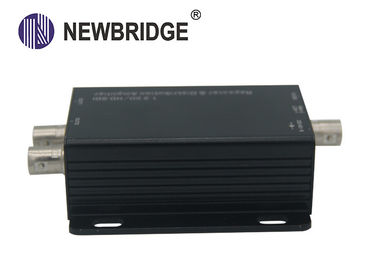

    HD SDI Signal Repeater 1 To 2 Repeater With BNC Connector

          ND1102BD

    l SDI Standard: HD-SDI, SD-SDI

    l Data Rates: 270Mbps/1.485 Gbps/2.97Gbps

    l Signal Type: SMPTE 292M, SMPTE 259M

    l Two separately buffered outputs

    l Cable equalization (Beldon 1694A) retiming and signal

    l Re-clocking function capability – unlimited repeater connection

    l Dual color LED indication of nput locik and rate

    l Pass all ancillary data

    • 5V~24V DC





    3.Applications

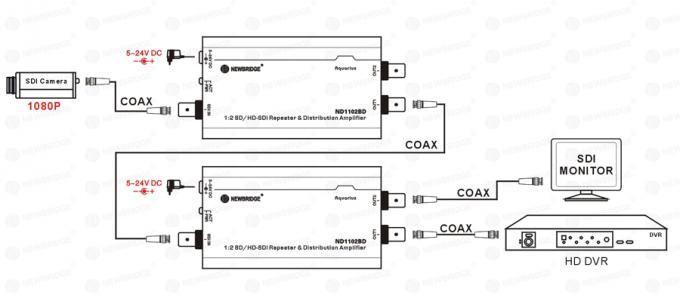

    HD SDI Signal Repeater 1 To 2 Repeater With BNC Connector

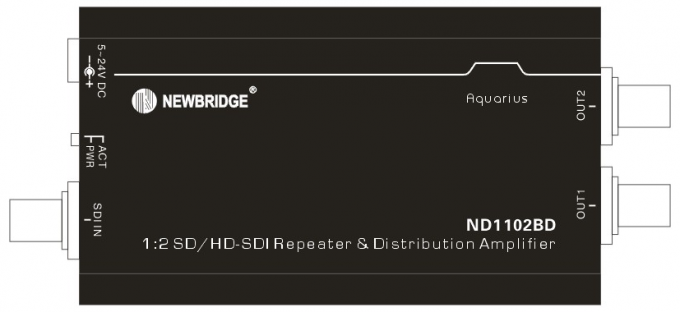

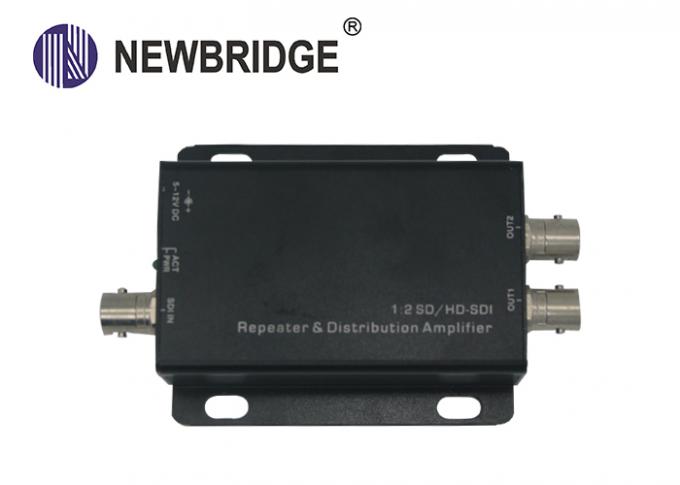

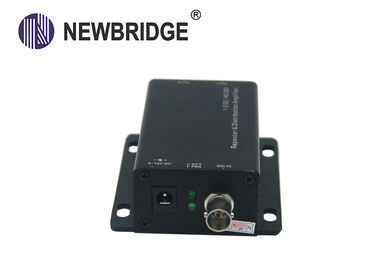

    4. Panel Layout



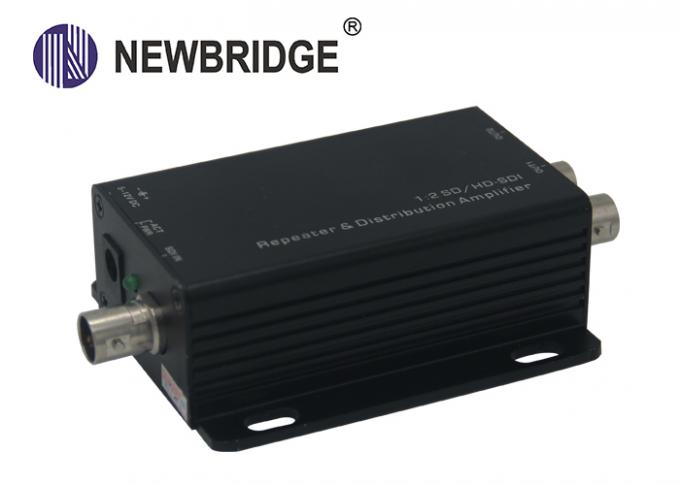

    HD SDI Signal Repeater 1 To 2 Repeater With BNC Connector



    5. Specifications



    Model

    SD/HD/3G-SDI 1 to 2 Distribution Amplifier

    HD-SDE-122R

    Re-clocking Function Yes
    SDI Standards 3G-SDI, SD-SDI, HD-SDI
    HD/SD-SDI Detection Auto
    Supported Protocols SMPTE 259M SMPTE 292M SMPTE 344M
    V ideo Bandwidth 2.97Gpbs & 2.97/1.001Gbps
    Data Rates 270 / 1483 / 1485 Mbps



    V ideo Support

    [HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60,1080p24/30

    [SD] NTSC@59.94Hz, PAL@50Hz



    SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
    Output Impedance 75 ohms



    Cable Equalization

    HD-SDI up to 150m/500ft

    SD-SDI up to 300m/1000ft

    Audio Support Yes
    Input 1x BNC [SDI]
    Output 2x BNC [SDI]
    BNC Connector 75 ohms inter-locked socket
    Power Consumption 2~4 Watts
    Relative Humidity 20~90% RH (no condensation)
    Dimension 113*48*25mm /119*73*36mm



    6. Order Information



    Part No Description of product Unit
    ND1120BD 1X2 SD/HD -SDI Repeaters pcs



















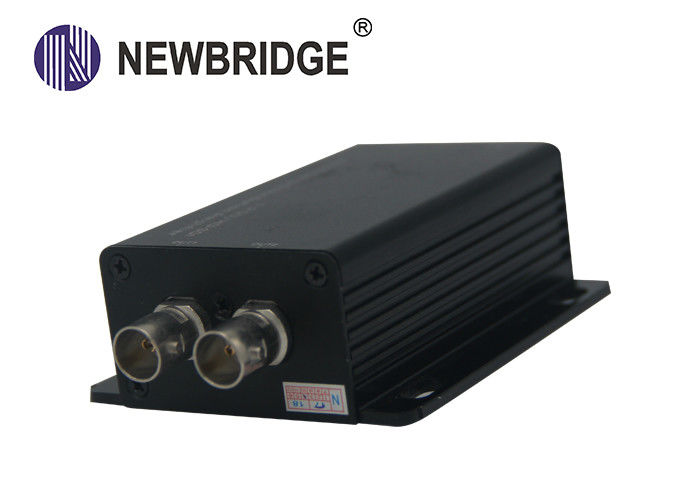

    HD SDI Signal Repeater 1 To 2 Repeater With BNC Connector
