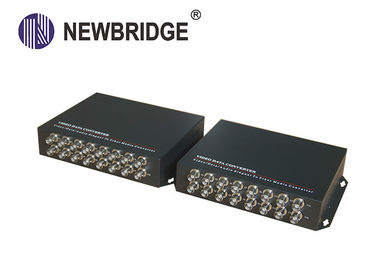

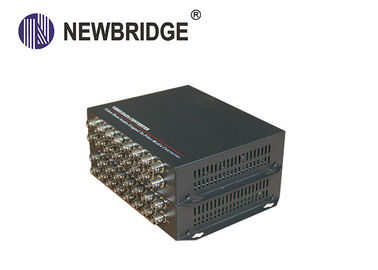

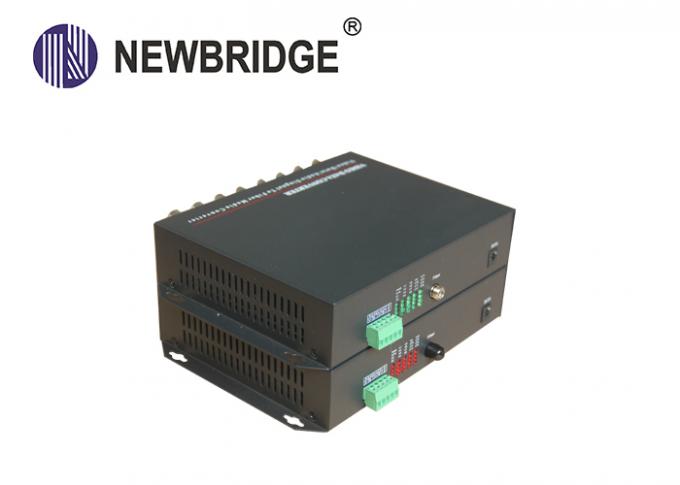

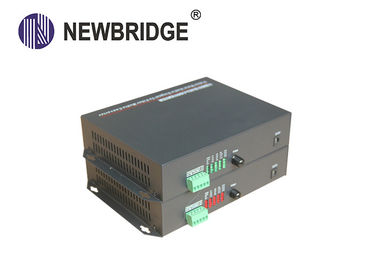

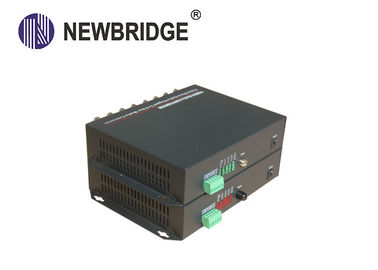

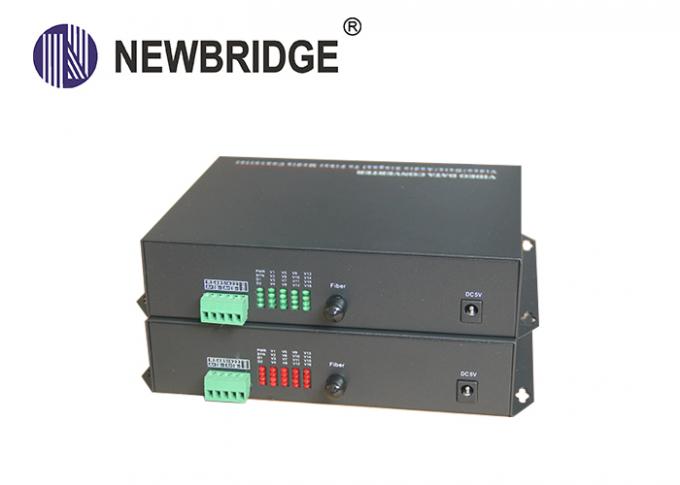

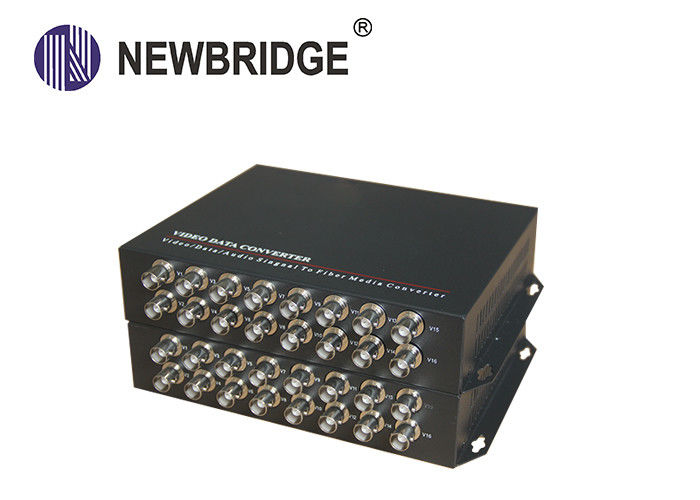

Fiber optical video converter 8ch video + 1 reverse data digital video fiber optical converter

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	CE,FCC
Model Number:	ND-TRH16VZ1DF-S20

Payment & Shipping Terms:

Minimum Order Quantity:	1pair
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Bit Resolution:	8-Bit Digital Transmission	Wavelength::	1310/1550nm
AC110V/220V:	16ch	Connector::	Simplex FC
Distance:	20km	Color:	Black

Fiber optical video converter 8ch video + 1 reverse data digital video fiber optical converter

Product Description

Fiber video multiplexers transmit 8-channel of broadcast quality video using 8-bit digitally encoding and decoding over one multimode or single-mode optical fiber. The modules are directly compatible with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications that have fixed cameras.

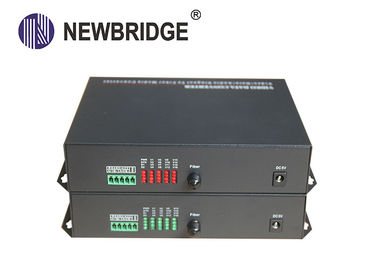

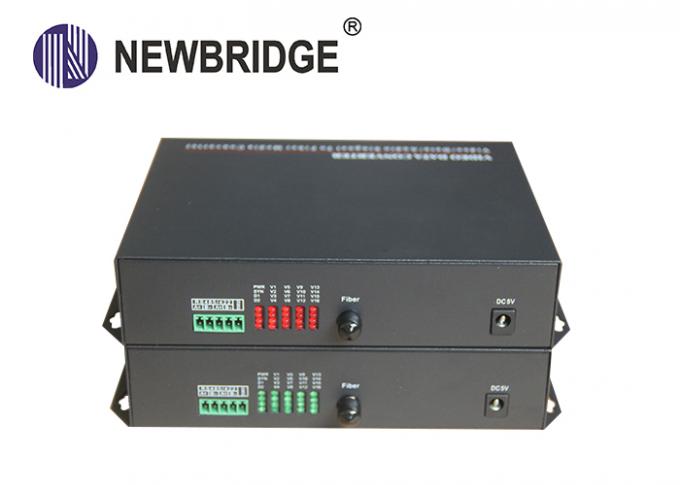

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. A typical installation utilizes a 8-channel transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a 8-channel receiver unit at the monitoring end of the link. Devices are available for either standalone or rack mount installation. The units incorporate LED indicators for monitoring the power and video operating status.

Key Features

16-Bit Uncompressed Video Transmission
NTSC, PAL or SECAM Video Standards
Transmit up to 30km without Optical Attenuation
Wide Optical Dynamic Range
No EMI, RFI, Cross Talk and Video Distortion
Adjustment-free Operation
LED indicators Instantly Monitoring System Performance
Standalone or Rack Mount

Technical Parameter

Ø Video
Video input/output impedance	BNC 75 Ω
Number of Channels	8 Channel Video
Video input	1 volt pk-pk (75 ohms)
Bandwidth	5 Hz - 8 MHz
Bit Resolution	8-Bit Digital Transmission
Differential Gain	< 1.5%
Differential Phase	< 1.5 °
Tilt	< 5%
Signal-to-Noise Ratio(SNR)	> 67 dB
Ø Data
Data Format	RS485
Bit Error Rate	10E-9
Connectors
Optical	FC (ST, SC Optional)
Video	BNC
Ø Electrical & Mechanical
Input Power Requirements	DC5V @ 2A
Power Adapter	AC 100V~240V
Stand-Alone Dimensions	21013525 mm
Card for 4U Rack Dimensions	19514050mm
Ø Environmental
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +70°C
Relative Humidity	0% ~ 95% (non-condensing)
MTBF	>100,000 hours

ordering information

Normal Analog Fiber Video Transmitter&Receiver
Model	Video/Data	Description
NF-1V-T/R-F20	1V↑	FC, single mode single fiber , 1CH video, 20KM, Iron
NF-1V1D-T/R-F20	1V↑+1D↓	FC, single mode single fiber, 1CH video+ reverse data, 20KM, Iron
NF-2V-T/R-F20	2V↑	FC, single mode single fiber , 2CH video, 20KM, Iron
NF-2V1D-T/R-F20	2V↑+1D↓	FC, single mode single fiber, 2CH video+ reverse data, 20KM, Iron
NF-4V-T/R-F20	4V↑	FC, single mode single fiber , 4CH video, 20KM, Iron
NF-4V1D-T/R-F20	4V↑+1D↓	FC, single mode single fiber, 4CH video+ reverse data, 20KM, Iron
NF-8V-T/R-F20	8V↑	FC, single mode single fiber , 8CH video, 20KM, Iron
NF-8V1D-T/R-F20	8V↑+1D↓	FC, single mode single fiber, 8CH video+ reverse data, 20KM, Iron
NF-16V-T/R-F20	16V↑	FC, single mode single fiber , 16CH video, 20KM, Iron
NF-16V1D-T/R-F20	16V↑+1D↓	FC, single mode single fiber, 16CH video+ reverse data, 20KM, Iron
