60M DVI Extender 3G Repeater Over Single Cat 5E / 6 Local HDMI Loop Out

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	CE,FCC
Model Number:	ND1104-EX06

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

TX Dimension:	93x80x25 Mm	Max Bandwidth:	165MHz
Max Band Rate:	1.65Gbps	Power Output:	DC 5V 1A
TX Max Working Current:	510mA	Weight:	100g(TX),120g(RX)

60M DVI Extender 3G Repeater Over Single Cat 5E / 6 Local HDMI Loop Out

Feature
★ Support HDMI 1.4a
★ Support 3D
★ Support highest video resolution 1080p/60Hz
★ Support 3.4Gbps data rate and TMDS clock up to 340MHz
★ Support 8/10/12 bit deep color
★ Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of DVI cable, it can extend the distance up to 60 meters between TX (Transmitter) and RX (Receiver).
★ No loss of quality
★ Install in minutes
★ Need DC5V/1A power supply

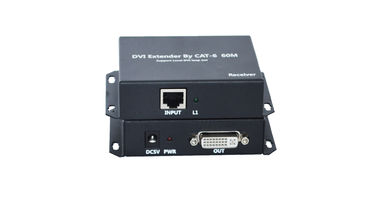

Product Picture

60M DVI Extender 3G Repeater Over Single Cat 5E / 6 Local HDMI Loop Out

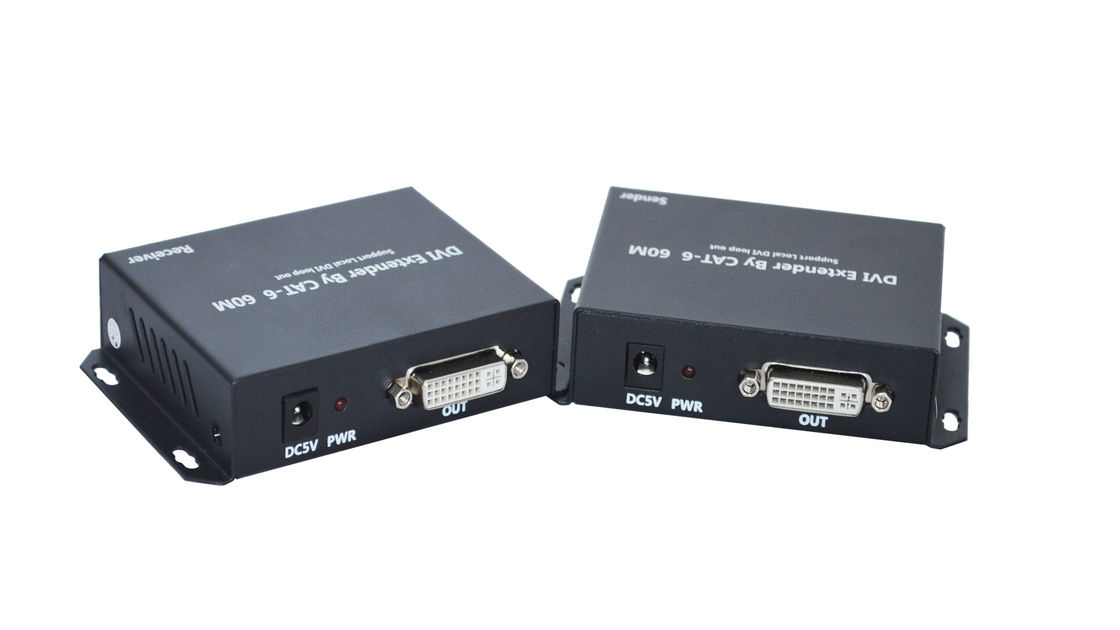

Physical Connection Showing Picture

60M DVI Extender 3G Repeater Over Single Cat 5E / 6 Local HDMI Loop Out

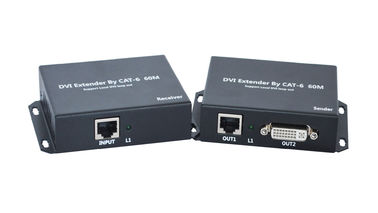

Interface

60M DVI Extender 3G Repeater Over Single Cat 5E / 6 Local HDMI Loop Out

Operating and Connecting

1.Connect one HDMI cable between source device and TX (Transmitter) Extender, the max cable distance is 15 meters
2.Connect one HDMI cable between display device and RX (Receiver) Extender, the max cable distance is 20 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX (Transmitter) and RX (Receiver) Extender, the max cable distance is 60 meters
4.Connect 5V power supply to the TX (Transmitter) and RX (Receiver). The Power LED light will be turn on red during working.
5.LED indicator light
(1).TX (Transmitter) LED indicator light:
The blue LED light on RJ45 port will turn on when the source single input well. Meanwhile, the orange LED light on RJ45 port will turn on while the Cat5e/6 cable connects well.
(2).RX (Receiver) LED indicator light:
The orange LED light will turn on continuously when the source signal input well. Meanwhile, the blue LED light on RJ45 port will turn on continuously when the display device connects well.
6.EQ-Set button: Please press the button one time or more while there is no pictures or snow points on the display when all devices connect well.

Specification

Length of CAT-5E/CAT-6 cable between RX and TX	Up to 60 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio input	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio output	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max band rate	3.4Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TT1L)
Input HDMI cable distance	≤15m AWG26 HDMI standard cable
Output HDMI cable distance	≤20m AWG26 HDMI standard cable
TX Max working current	510mA
RX Max working current	100mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
TX Weight	100g
Dimension (L x W x H)	81x43x22 (mm)
TX Weight	100g
RX Weight	120g

The Package includes

1. TX Extender x 1pcs
RX Extender x 1 pcs
2. 5V DC Power adapter
3. User Manual

Notes

Please use the machine based on the instruction listed to keep long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohibited.

4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.

5. Please turn the power off when the machine is not used for long time.

6. Please do not open the cover and do not touch inside parts.

7. Please use the original factory power adaptor.

Before power on, please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO	Trouble Description	Cause and Ways to deal with
1	Non-Power-Connected	1. Check if the power adaptor head is truly and correctly inserted to the power socket. 2. Check the power switch if it is on status.
2	No Picture	1. Please make sure the TV turns on and connected with the machine well. 2. To check if the signal source turns on and connected well. 3. Check the system connection well. 4. Check if the cables are all in good quality. 5. Please press the EQ-Set button one time or more to adjust the Inside EQ data. 6. HDMI Cable should be Standard Cable.
3	Obscure Picture	1. Please try to connect all ports again to avoid bad connection. 2,HDMI Cable Quality ( HDMI Standard cable)
