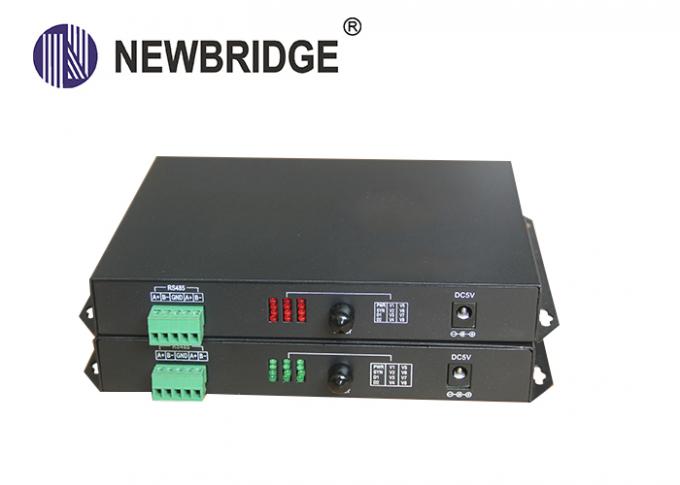

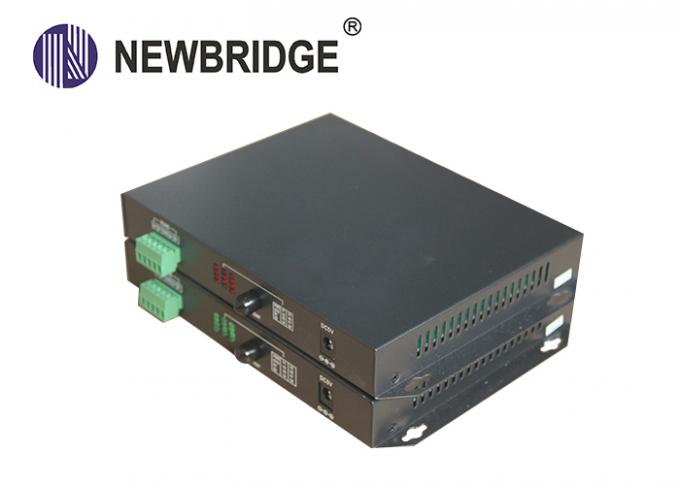

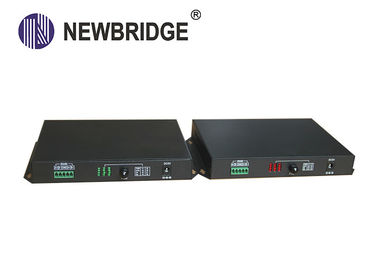

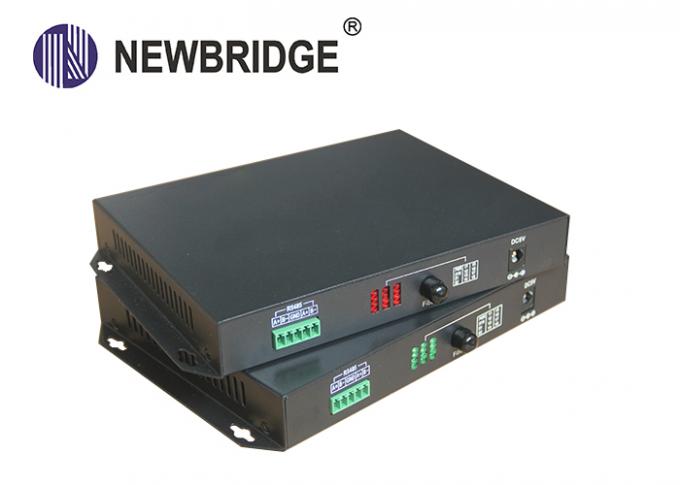

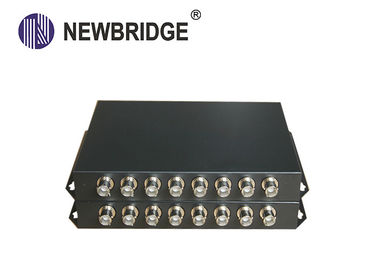

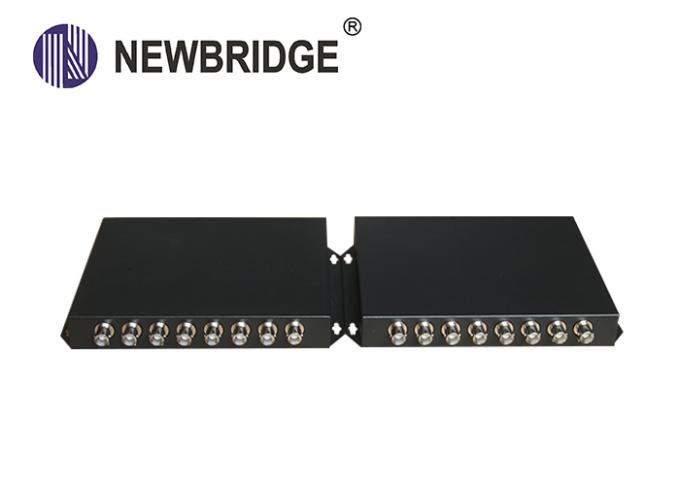

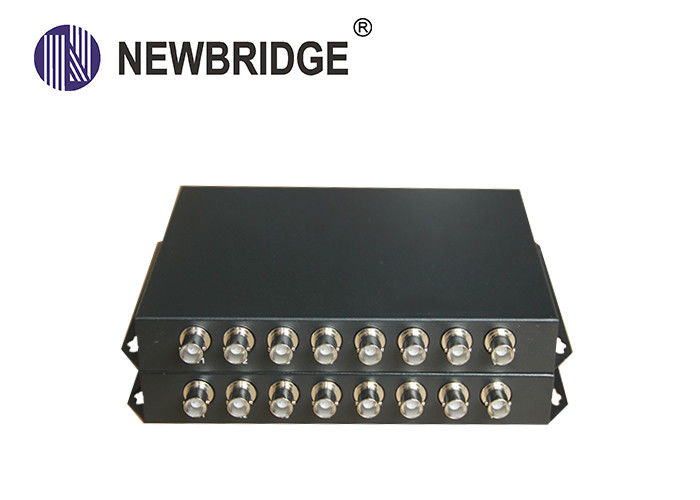

HD SDI Repeater 1080P 8CH Fiber optical vedio converter

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	CE,FCC
Model Number:	ND-TRH8VZ1DF-S20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

POWER:	DC 5V 2A	Port:	FC
Distance:	20km	Rate:	720p,1080p
Wavelength:	1310nm/1550nm	Humidity:	10%~90% RH

1080P 8CH Fiber optical vedio converter

ND-TRH1VZ1DF-S20 Series are non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum extension is up to 120km over fiber.

Features

•Self-adaptive output HDTVI signal
• Loss-less real time non-compression transmission
• LED indicators
• Fully enclosed dust-proof design

Optical
Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multi mode,62.5/125u multi mode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC/ST/SC (optional)
Distance 2KM

Video

Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz

Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns

Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other
Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours
