| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND8210S-SP04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| HDMI Version: | HDMI 1.4b | Support Video Format: | Support Video Format |
|---|---|---|---|
| Baud: | 120g | Power Input: | AC (50HZ, 60HZ) 100V-240V |
| Power Output: | DC12V/2A | Size: | 276x136x24 (mm) |
4K 1.4b 1 HD HDMI Splitter Input 2 Output 5V 1A 2 Way Support 3D Video
The HDMI Splitter 1x2 uses a single HDMI source, accessing to multiple HDMI sinks. The splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 3840x2160/30Hz.
Feature
1. Support HDMI 1.4b
2. Support Full 3D
3. Support HDMI resolution up to 3840x2160/30Hz
4. Support the max baud rate of 3.4G and max bandwidth of340Mhz
5. Support deep color 8/10/12bit
6. Support input up to 10metres AWG26 HDMI standard cable length, output up to 15metres AWG26 HDMI standard cable length
7. Displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
8. 5V / 1A power adapter
Specifications:
| HDMI version | HDMI 1.4b |
| HDMI resolution | UP TO 3840*2160/30Hz |
| Support video color format | 8/ 10/12bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 225MHz |
| Max baud rate | 2.25Gbps |
| Input cable distance | ≤10m AWG26 HDMI standard cable |
| Output cable distance | ≤15m AWG26 HDMI standard cable |
| HDMI input | 1 HDMI |
| HDMI output | 2 HDMI |
| Max working current | 500mA |
| Specifications of power adapter | Input:AC (50HZ, 60HZ) 100V-240V;output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 105x50x20mm |
| Weight | 120g |

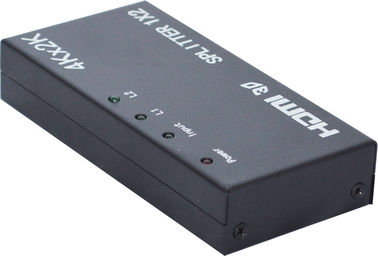

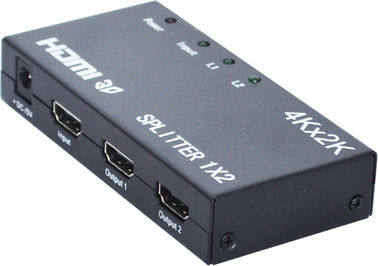

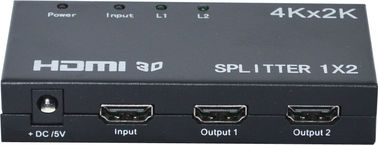

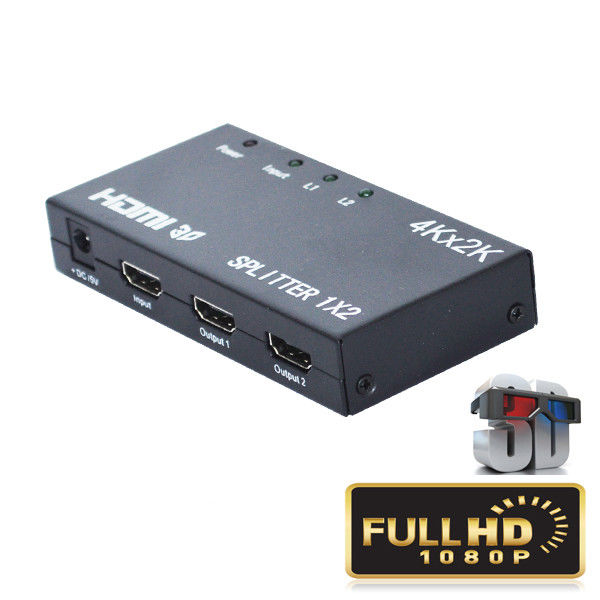

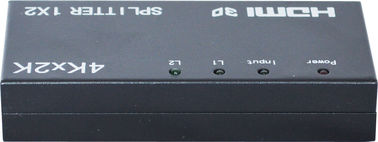

Product photos
Connecting operation
1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2. Connect 2 HDMI cables from displayers (monitors or projectors) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x2 Splitter.
Package Accessories
1. HDMI Splitter 1x2
2 Power Adapter
3 User Manual
