| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-820SW-20-3 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Tandard: | IEEE802.3,),IEEE802.3u,IEEE802.3x,IEEE802.1q,IEEE802.1p QoS, IEEE802.1d | Fiber Type: | Dual Fiber Single Mode |
|---|---|---|---|
| Storage Humidity: | 5%~90% | Fiber Connector: | SC Standard, ST/FC Optional |
| MTBF: | 50,000 Hours | Operating Temperature: | 0°C~50°C |

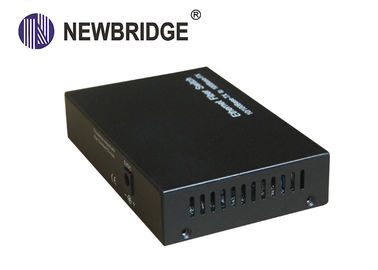

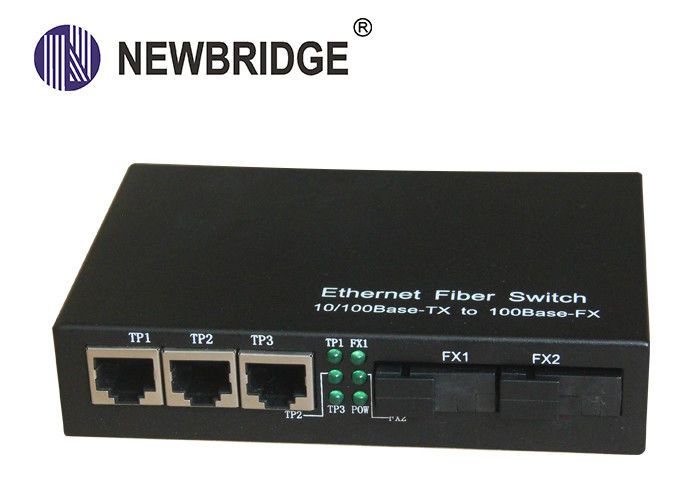

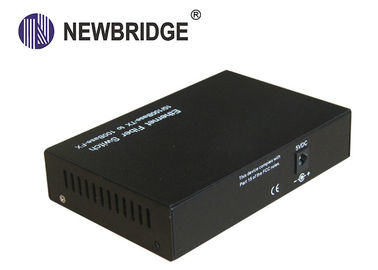

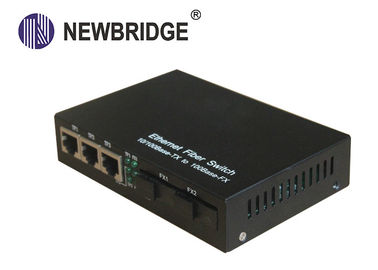

10M/100Mbps Dual fiber Single mode 1310nm 20KM SC Port Fiber Media Converter with Switch
Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter,or fiber switch is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics
Feature
♦ 2x3 10/100M IP Switch
♦ 2* 10/100M fiber port ,3 *10/100M RJ45 port ,
♦ Dual fiber single mode 1310nm,SC,0~20KM,stand alone type,
♦ Internal power supply,DC/12V,AC/100-240V,
♦ Through the optical fiber cascaded multiple lans
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310nm |
| Input Voltage | ,DC/12V,AC/100-240V |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% non-condescending |
Order info
| Part No | Description of product | Unit |
| ND-820SW-20-3 | 1*10M/100M bps fiber port+1*10/100M RJ45, single mode single fiber,1310nm,20KM,SC | pc |
