| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-820SW-20 |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 5000pcs per month |
| Wavelength: | 1310nm/1550nm | Voltage Supply: | 5V |
|---|---|---|---|
| Rate: | 10/100M | Storage Temperature: | -40°C~70°C |
| Fiber Connector: | SC,FC/ST | RJ-45 Port: | Auto-MDI/MDIX |

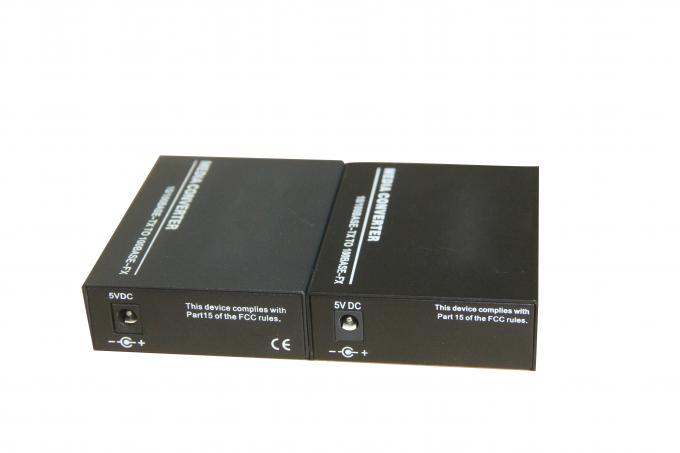

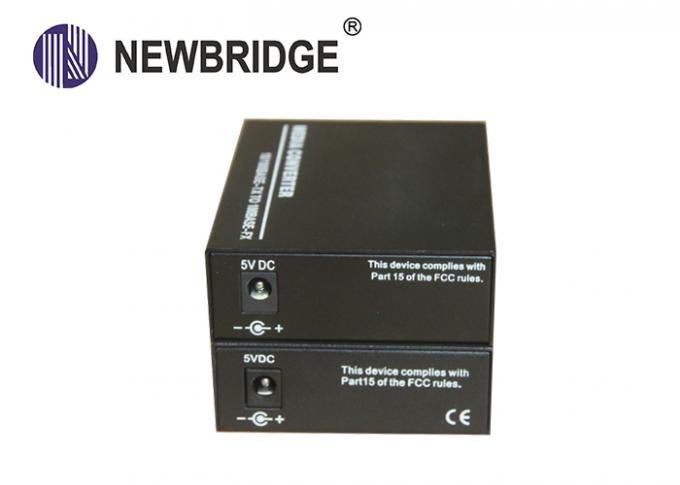

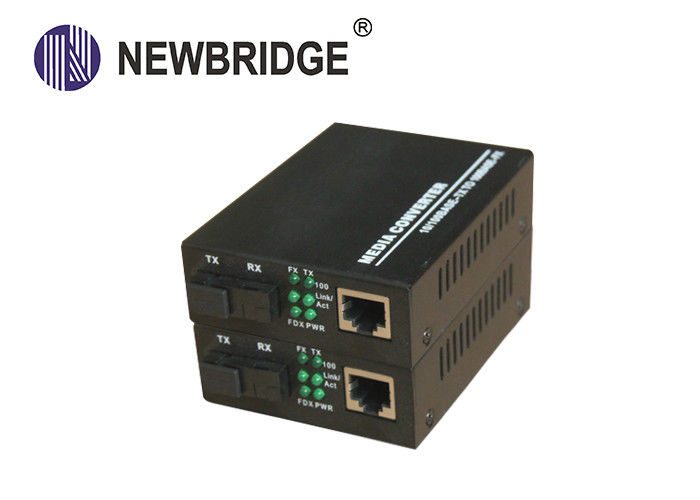

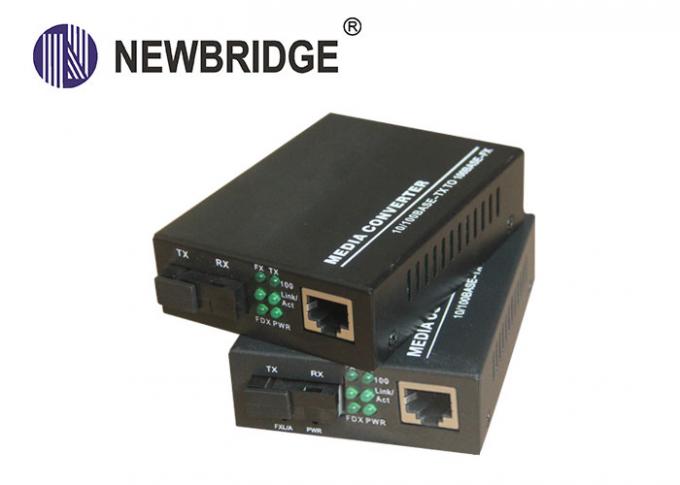

Single Fiber Single Mode 10 100M 20km Fiber Optic to 1 Rj45 Media Converter
Feature
1.100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
2. Auto-MDI/MDIX copper RJ45 port
3.1600byte super data packet transmission
4. Full duplex-flow control, half duplex-back pressure
5. Link fault pass through (LFPT)
6. Full- positioned LEDs to indicate power and network status
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/10 0 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 130mm X 86 mm X 26mm |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
| Input Voltage | DC-5V AC/100-240V |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% non-condescending |

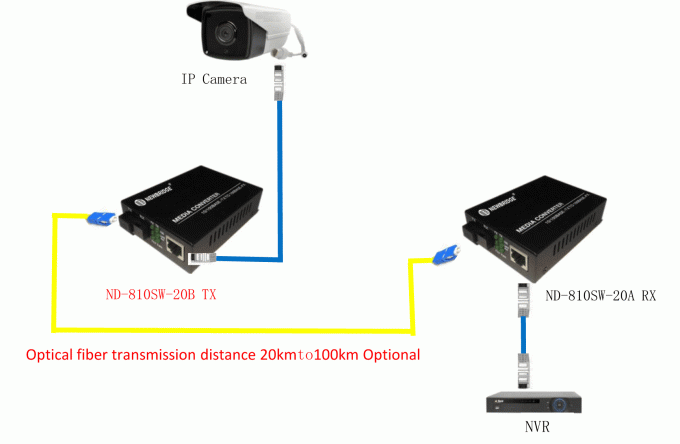

Connection diagram
(O3%5D%7DZXJAX%7B3_%7DTK2E.png)
Order info
| Part No | Description of product | Unit |
| ND-810SW-20B | 10M/100M bps, Single mode,1550nm,0-20KM,SC | 1pc |
| ND-810SW-20A | 2*10M/100M Base-T+1*10/100M-FX, Single mode,1310nm,0-20KM,SC | 1pc |
