| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-S820SW-2*12 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Power Port: | 2*DC12V | Size: | 69mm×50mm×24mm |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Transmission Rate: | 10/100M Bps |
| Storage Temperature: | -40℃～80℃ | Power Input: | AC 100-240V |

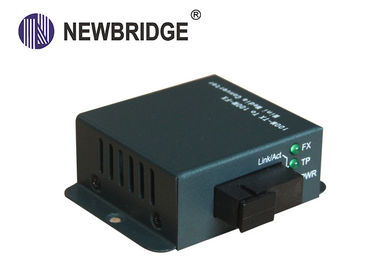

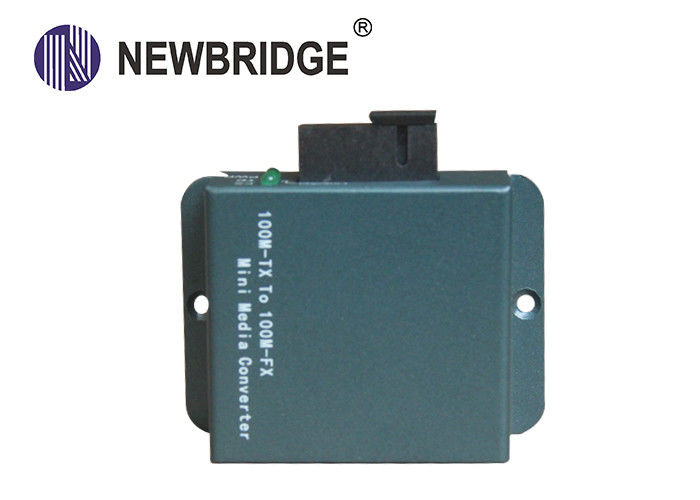

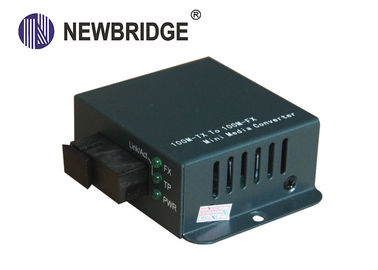

10/100M mini Media Converter with dual power 12V
| Model | ND-S820SW-2*12 |
| Description | One light one transceiver,single fiber ,external power supply |
| Image |  |
| transmission rate | 10/100Mbps |
| wave length | 1550nm/1310nm |
| transmission distance | 0～20km |
| the fifth twisted-pair transmit distance | 0～100m |
| electrical interface | 1×RJ45 |
| fiber connector | 1×SC port |
| power port | 2×DC12V |
| Flow control approach | Dynamic data transmission, Full/half duplex |
| MTBF | Over 100,000 hours |
| Power supply | External power supply |
| Power input | AC100 ～ 240V to DC12V input |
| Power consumption | 2.5 w |
| Storage temperature | -40℃～80℃ |
| Case meterial | Iron shell |
| Demension | 69mm×50mm×24mm |
| Weight | 0.4GK /pair |
Panel Descriptions :
