Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-S820SW-2*12 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Power Port: | 2*DC12V | Dimensions: | 69mm×50mm×24mm |
---|---|---|---|
Wavelength: | 1310nm/1550nm | Power Consumption: | 2.5 W |
Storage Temperature: | -40℃~80℃ | Case Meterial: | Iron Shell |

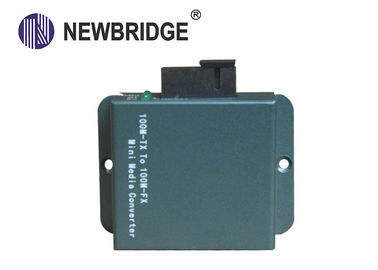

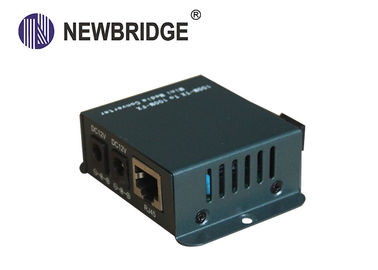

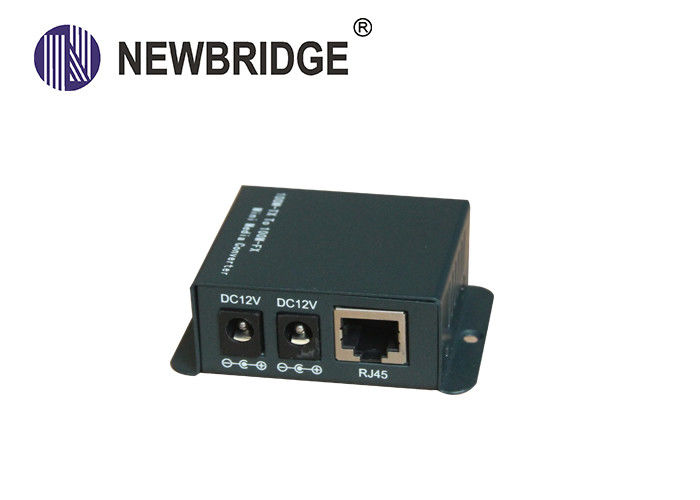

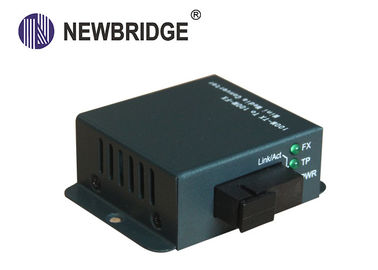

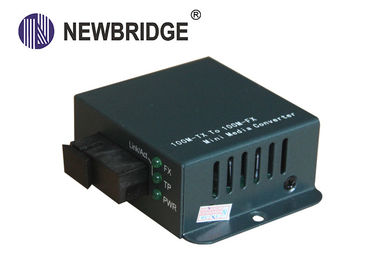

10 100M Induatrial Media Converter Dual Power 12V External Power Supply
Model | ND-X815MSW |
Description | 1CH optical port+1CH RJ45+2CH 12Vpower port |
Image | |
transmission rate | 10/100Mbps |
wave length | TX1310nm/RX1550nm |
transmission distance | 0~20km |
the fifth twisted-pair transmit distance | 0~100m |
electrical interface | 1×RJ45 |
fiber connector | Single mode single fiber,SC port |
power port | 2×DC12V |
Flow control approach | Dynamic data transmission, Full/half duplex |
MTBF | Over 100,000 hours |
Power supply | External power supply |
Power input | AC100 ~ 240V to DC12V input |
Power consumption | 2.5 w |
Storage temperature | -40℃~80℃ |
Case meterial | Iron shell |
Demension | 69mm×50mm×24mm |
Weight | 0.2KGS |
This product for intelligent products, high and low temperature resistance (-40 ℃ ~ 80 ℃), lightning protection, anti-static, small volume, dual DC12V, directly supply power to media converter , and then from the second DC link into the camera, power supply to cameras.
Panel Descriptions :
