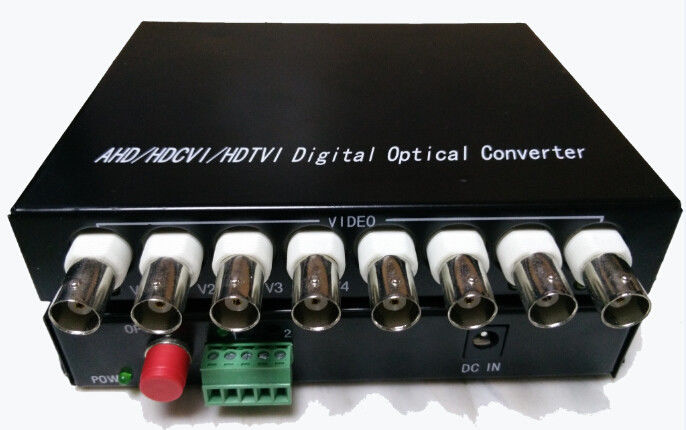

1080P HD TVI / CVI / AHD Transmitter Receiver , Fiber Optic To BNC Digital Video Converter

1080P HD TVI / CVI / AHD Transmitter Receiver , Fiber Optic To BNC Digital Video Converter

1080P HD TVI / CVI / AHD Transmitter Receiver , Fiber Optic To BNC Digital Video Converter

Product Details:

Place of Origin: SHENZHEN,CHINA
Certification: CE,FCC
Model Number: ND-ATV8V1D-S20-1

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Fiber: Single-Mode Indicators: OPT, PWR, DATA, VIDEO
Sampling Bandwidth: 10 Bit Maximum Transmission Distance: 20km
Video Physical Interface: BNC Video Bandwidth: 50MHz

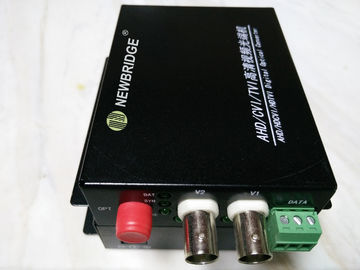

1080P HD TVI / CVI / AHD Transmitter Receiver , Fiber Optic To BNC Digital Video Converter
Product Description


Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.
Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.



  1. Model: PL-2V1D-SM-FC-20KM
  2. Transmitter + Receiver
  3. Fiber Mode: Single-Mode
  4. Wavelengths: 1310nm/1550nm
  5. Optical Power Budget: 12dB
  6. Maximum Transmission Distance: 20km
  7. Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  8. Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key Features

  1. Support Point-to-Point or Daisy-Chain connection
  2. Uncompressed Digital Composite Video over one fiber
  3. Compatible with all PAL, NTSC,SECAM Video Systems
  4. Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  5. Single-Mode Fiber Support for Distances up to 100 km
  6. LED Status Provide Rapid Indication of Operating Parameters
  7. No EMI or RFI and no ground loops
  8. Support Coarse Wavelength Division Multiplexing (CWDM)
  9. Stand alone
  10. Produce according to customer's specifications,providing OEM


Technical Indexes

Fiber FC, Single Mode Single Fiber
Transmition Distance 0-120km
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium


1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m


Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~16-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -30°C~75°C




Packaging & Shipping
  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
