4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-4V-CVI |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Wavelength: | 1310nm&1550nm | Optical Interface: | FC、ST 、SC (optional) |
---|---|---|---|
Fiber Type: | Multi-mode Fiber Or Single Mode Fiber | Distance: | 0km~80km (Optional) |
Impedance: | 75Ω | Power Consumption: | ≤5W |

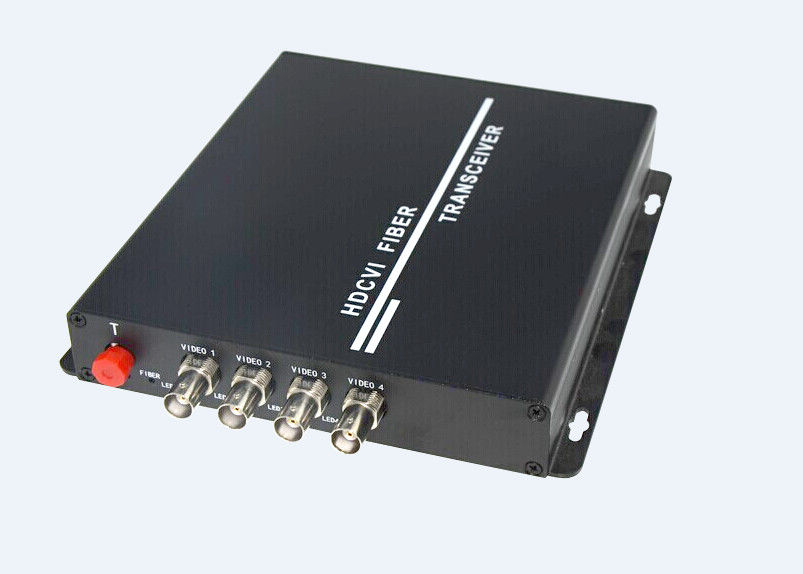

HD-4V HDCVI to Fiber Converter
Introduction
Fiber optical HDCVI converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance (as far as 80Km) transmission through fibers.
Features
Application
Technical Specification
Feature | Description | ||
Optical | Fiber Type | Multi-mode fiber or Single mode fiber | |
Fiber Connector | FC or ST or SC | ||
Distance | 0km~80km (Optional) | ||
Wavelength |
Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm. |
||
HDCVI(Transmitting) | Input level | >500mVp-p | |
self-adaptionly cable equilibrium |
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
||
Input / Output Impedance | 75 Ω | ||
Physical Interface | 2 channel BNC connector | ||
HDCVI(Receiving) | Output level | 1Vp-p | |
Input / Output Impedance | 75Ω | ||
Physical Interface | 2 channel BNC connector | ||
Data | Transmission Media | Coaxial cable | |
Baud Rate | 1200~9600bit/s | ||
Bit Error Rate | ≦10 | ||
Operation Mode | Half-Duplex | ||
Indicators | LOS,PWR,DATA,VIDEO | ||
Mean time between failures(MTBF) |
>100 000 hours |
||
General | EPS | DC5V | |
Power Consumption | ≦5W | ||
Operation Temperature | —40℃~75℃ | ||
Operation Humidity | 10%~90% | ||
Atmospheric Pressure | 86kpa~106kpa | ||
Mounting Method | Wall mounted | ||
Unit Weight |
1.1kg (pair)(720P) 1.5kg (pair)(1080P) |
||
Dimension |
108mm×106mm×27mm(720P) 170mm×167mm×28.5mm(1080P) |
Ordering information
Model Number | Product Configuration | Fiber Interface | Fiber Mode | Wavelengths | Transmission Distance |
ND-CVI-1V-T/RF | 1 Ch Forward HDCVI Video | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-1V1D-T/RF | 1 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-2V-T/RF | 2 Ch Forward HDCVI Video | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-2V1D-T/RF | 2 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-4V-T/RF | 4 Ch Forward HDCVI Video | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-4V1D-T/RF | 4 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-8V-T/RF | 8 Ch Forward HDCVI Video | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
ND-CVI-8V1D-T/RF | 8 Ch Forward HDCVI Video+1 Ch Reverse Data | FC/SC/ST | Single-mode | 1310/1550 nm | 20Km |
