| Distance: | 20KM | Fiber Type: | Single Fiber Single Mode |
|---|---|---|---|
| Fiber Port: | FC | Wavlength: | TX1310nm/RX1550nm |
| Power: | DC 5V 2A | Humidity: | 10%~90% RH |

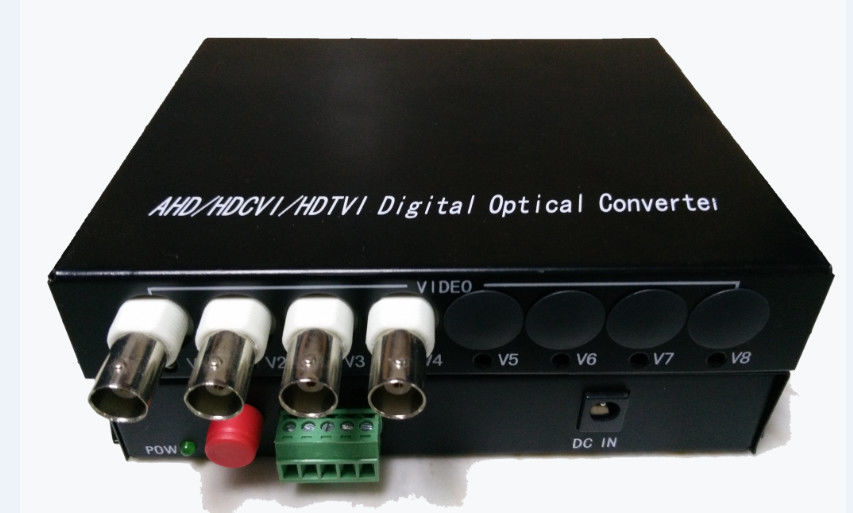

20 Kilometers 4ch HD HDMI Transmitter Receiver 16 Channels 1310nm 1550nm 1080P
Wavelength1310nm&1550nmOutput Power-8~3dBmOptic fiber50 125u multimode,62 5 125u multimode,9 125u single modeRx
Feature
CVI/TVI/AHD TO Fiber Converter can simultaneously transmit 1-16 channels CVI/TVI/AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with720P/ 1280H/25f, 720P/1280H/30f, 720P/1280H/50f, 720P/1280H/60f. Lossless non-compression real time transmission.
SpecificationOpitcal:
| Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~550M (MM) / 0~20KM (SM) |
Video:
| Number of Channels | 1/2/4/8/16 |
| Input/output impedance | BNC 75Ω (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 45MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 108MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
Other
| Power | DC5V 2A |
| Power Consumption | ≤6W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| Unit Weight | 1.45KG(pair) |
| Dimension | 183mm×154mm×30mm |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
Connection diagram
Order information
| Part No | Description of product | Unit |
| ND-AC4V1D-S20 | 4ch video+1chreturn data,20KM,FCinterface | pcs |
