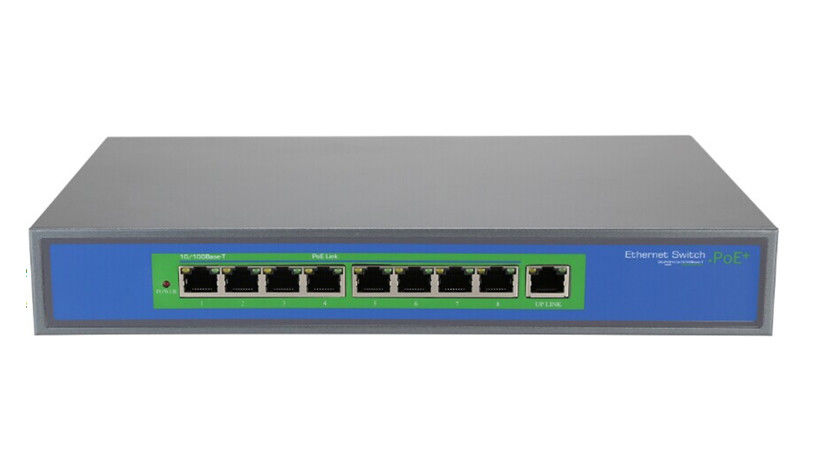

Portable 9 Port PoE Ethernet Switch , Fast RJ45 10 / 100M 250W Industrial PoE Switch

Portable 9 Port PoE Ethernet Switch , Fast RJ45 10 / 100M 250W Industrial PoE Switch

Portable 9 Port PoE Ethernet Switch ,  Fast RJ45 10 / 100M 250W Industrial PoE Switch

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-PSN1108-250-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
POE Standards: IEEE:802.3af, IEEE:802.3at Key Words: 9
Power Supply: End-Span(1/2+,3/6-) Total Power: 52V 4.8A 250W
Size: 283*178*45mm Transmission Rate: 10/100Mbps

9 port POE Switch with 1 fast RJ45 10/100M 250W PoE Ethernet Switch



Non management*Compatible IEEE802 3af at,IEEE802 3az function*9 X 10 100Mbps RJ45 port*8 X PSE port, Output power up



Feature

Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation





Specification

● 9 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Built-in 8 PoE Ports (Port 1 ~ Port 8)
● Maximum 30 watts power for each PoE port
● IEEE 802.3af ,IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
● Total Power:52V4.8A 250W,build-in power supply





Connection diagram

Portable 9 Port PoE Ethernet Switch ,  Fast RJ45 10 / 100M 250W Industrial PoE Switch











Order information



Part No Description of product Unit
ND-PSN1108-250-AT ND-PSN1108-250-AT PoE Switch pcs
