| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-PSN1104-60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 3000pcs per month |
| Size: | 125*73*26mm | Port: | 4+1 RJ45 Port |
|---|---|---|---|
| Operating Temperature: | -40℃~70℃ | Input Voltage: | 24V DC |
| Total Power: | 52V 1.25A 60W | Certification: | CE,FCC |

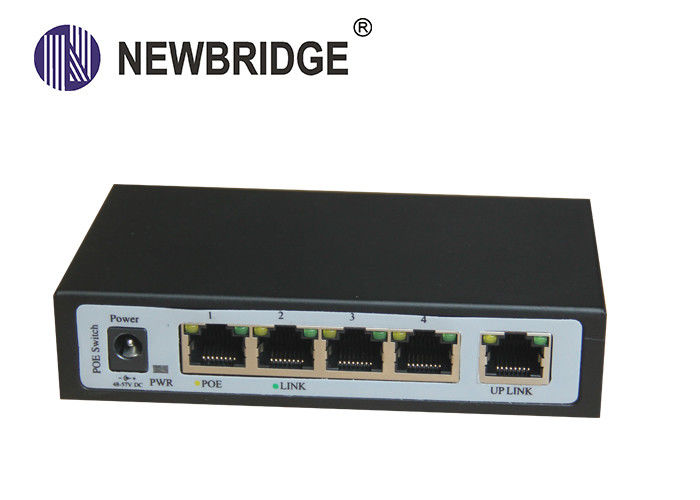

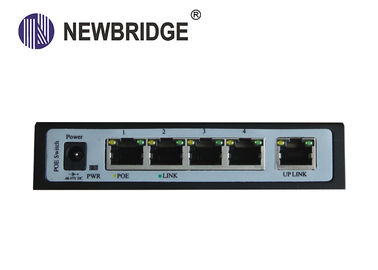

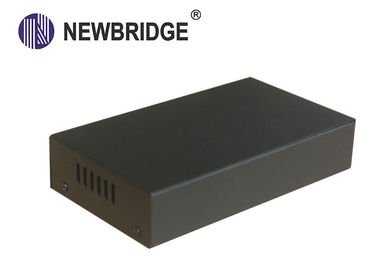

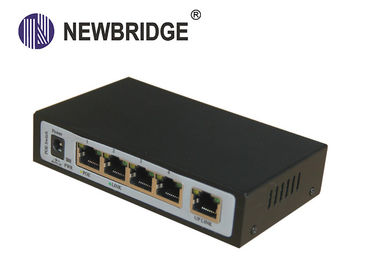

100M 4 Port + 1 RJ45 Port PoE Ethernet Switch for IP camera solution
Non management*Compatible IEEE802 3af at,IEEE802 3az function*5 X 10 100Mbps RJ45 port*4 X PSE port, Output power up
Feature
Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 15.4W
Port power is automatically assigned
Dynaic Power Allocation
Specification
● 5 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Built-in 4 PoE Ports (Port 1 ~ Port 4)
● Maximum 15.4 watts power for each PoE port
● IEEE 802.3af PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V1.25A 60W
Connection diagram
Order infomation
| Part No | Description of product | Unit |
| ND-PSN1104-60 | ND-PSN1104-60 PoE Switch | pcs |
